542 (590-542-150) - Cub Cadet Material Collection System Catcher Parts Diagram

Material Collection System

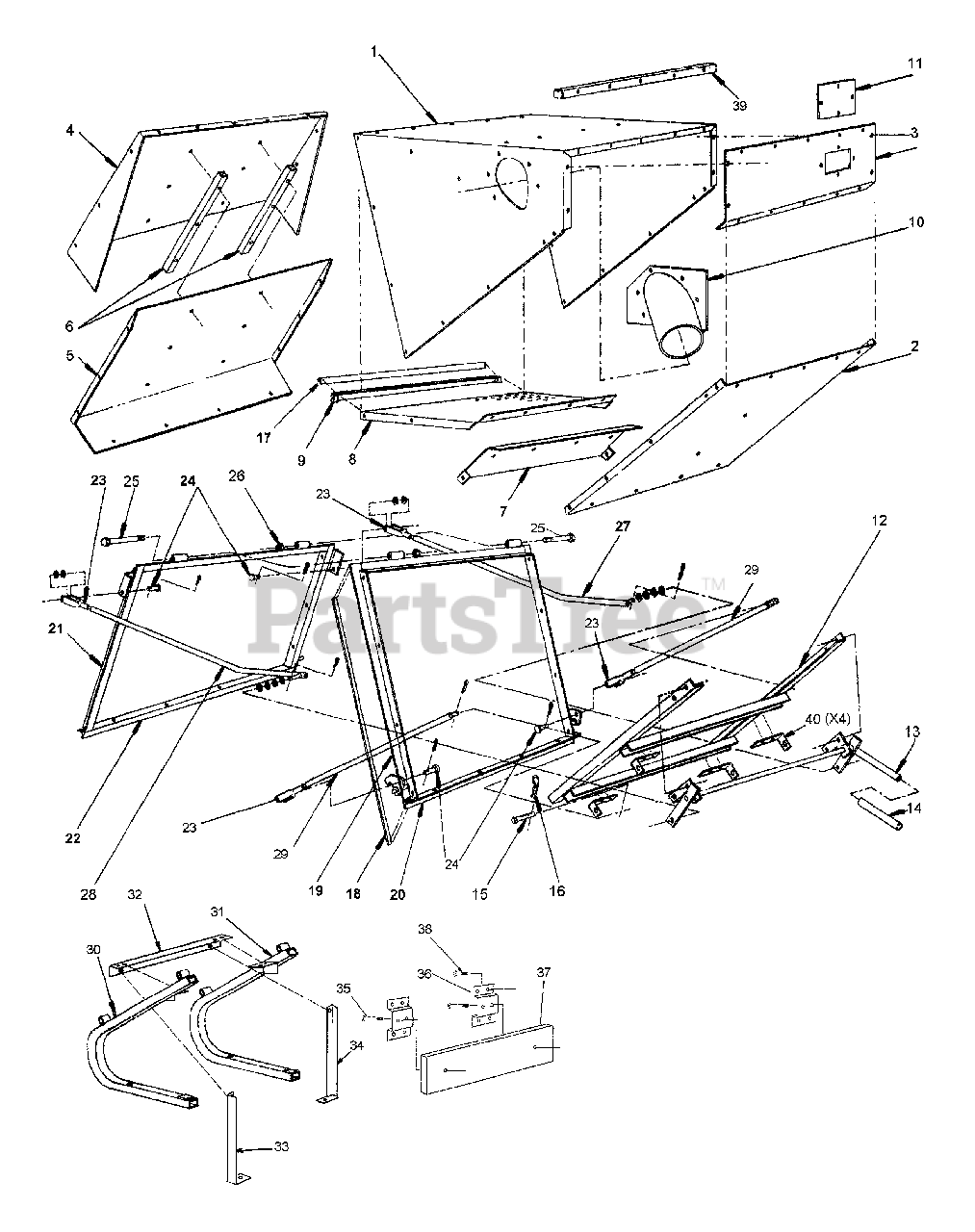

Catcher Parts Diagram

  • Title

1

Cub Cadet TS-151175

Catcher Body

$

$

Not available

2

Cub Cadet TS-151232

Catch Box Bottom

$

$

Not available

3

Cub Cadet TS-151358

Front

$

$

Not available

4

Cub Cadet TS-151419

Outer Door Shell

$

$

Not available

5

Cub Cadet TS-151591

Inner Door Shell

$

$

Not available

6

Cub Cadet TS-152068

Door Vent Tubing

$

$

Not available

7

Cub Cadet TS-151768

Intake Deflector

$

$

Not available

8

Cub Cadet TS-151970

Screen

$

$

Not available

9

Cub Cadet TS-158940

Rear Screen Support

$

$

Not available

10

Cub Cadet TS-152340

6" Intake Tube

$

$

Not available

11

Cub Cadet TS-150202

5" x 6.5" Acrylic

$

$

Not available

12

Cub Cadet TS-153600

Catcher Frame Base

$

$

Not available

13

Cub Cadet TS-152790

Lever Dump Assembly

$

$

Not available

14

Cub Cadet TS-150875

5" Vinyl Grip

$

$

Not available

15

Cub Cadet TS-150990

1/2" x 3" Adjustable Clevis
(Superseded to TS-150890)

$6.99

$

In Stock, only 2 left!

0

16

Cub Cadet TS-150994

0.091" x 2" Hair Spring Cotter

$

$

Not available

17

Cub Cadet TS-150754

Rubber Seals
(Superseded to TS-150755)

$

$

Not available

18

Cub Cadet TS-150783

Foam Seal

$

$

Not available

19

Cub Cadet TS-153290

Catcher Opening Frame

$

$

Not available

20

Cub Cadet TS-153050

Bottom Catcher Opening Frame

$

$

Not available

21

Cub Cadet TS-153330

Catcher Door Frame

$

$

Not available

22

Cub Cadet TS-153010

Bottom Door Frame

$

$

Not available

23

Cub Cadet TS-150803

3/8"-24 Adjustable Yoke End

$

$

Not available

24

Cub Cadet TS-150810

3/8" x 1 Clevis Pin

$

$

Not available

25

Cub Cadet TS-150005

1/2" x 5" Hex Head Bolt

$

$

Not available

26

Cub Cadet TS-150012

1/2" Nylock Nut

$

$

Not available

27

Cub Cadet TS-156713

Left Hinge Rod

$

$

Not available

28

Cub Cadet TS-156703

Right Hinge Rod

$

$

Not available

29

Cub Cadet TS-152990

Latch Rod

$

$

Not available

30

Cub Cadet TS-154365

Right Catcher Mounting Frame

$

$

Not available

31

Cub Cadet TS-154370

Left Catcher Mounting Frame

$

$

Not available

32

Cub Cadet TS-154315

Catcher Mounting Frame Bumper

$

$

Not available

33

Cub Cadet TS-154320

Right Catcher Frame Support

$

$

Not available

34

Cub Cadet TS-154325

Left Catcher Frame Support

$

$

Not available

35

TS-38-414

3/8" -16 x 4 1/2" Hex Head

$

$

Not available

36

Cub Cadet TS-159511

Weight Mounting Bracket

$

$

Not available

37

Cub Cadet TS-285298

Weight Bar

$

$

Not available

38

5/16"-18 x 1" Carriage Bolt

5/16"-18 x 1" Carriage Bolt

Note: OBTAIN HARDWARE LOCALLY

$

$

Not available

39

Cub Cadet TS-159080

Front Bumper

$

$

Not available

40

Cub Cadet TS-153500

Base Frame Tab Adjustable

$

$

Not available
