542477-0004-J1 - Briggs & Stratton Horizontal Engine Air Cleaner Group Parts Diagram

Horizontal Engine

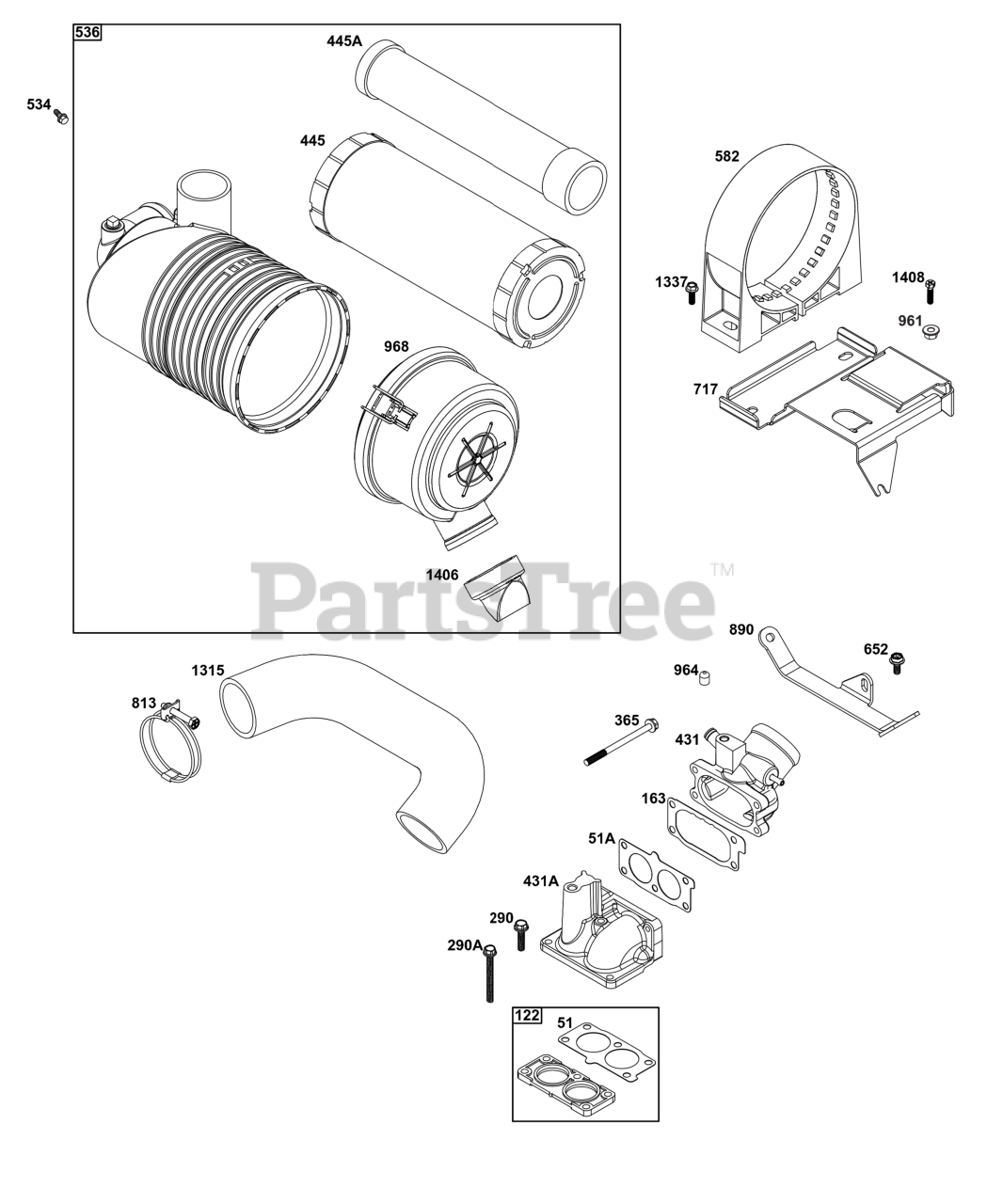

Air Cleaner Group Parts Diagram

  • Title

51

GASKET, Intake

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

51A

GASKET, Intake

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

122

SPACER, Carburetor

Note: (Part information located in Carburetor Group.)

$

$

Not available

163

GASKET, Air Cleaner

Note: (Part information located in Carburetor Group.)

$

$

Not available

290

Briggs & Stratton 807421

SCREW

Note: (Intake Elbow) (M6x25mm)

$3.49

$

Usually ships in 2-12 days

0

290A

Briggs & Stratton 809911

SCREW

Note: (Intake Elbow) (M6x55mm)

$3.99

$

Usually ships in 2-12 days

0

365

SCREW

Note: (Part information located in Carburetor Group.)

$

$

Not available

431

Briggs & Stratton 845920

ELBOW, Intake

$103.99

$

Usually ships in 2-12 days

0

431A

Briggs & Stratton 841539

ELBOW, Intake

$88.99

$

Usually ships in 2-12 days

0

445

Briggs & Stratton 841497

FILTER, A/C Cartridge

$34.99

$

Usually ships in 2-12 days

0

445A

Briggs & Stratton 821136

FILTER, A/C Cartridge

$33.99

$

Usually ships in 2-12 days

0

534

Briggs & Stratton 692062

SCREW

Note: (Air Cleaner) (M8x18mm)

$3.49

$

In Stock, only 3 left!

0

536

Briggs & Stratton 809670

CLEANER, Air

$235.99

$

In Stock, only 1 left!

0

582

Briggs & Stratton 809878

CLAMP, Air Cleaner

$65.99

$

Usually ships in 2-12 days

0

652

Briggs & Stratton 807084

SCREW

Note: (Support Bracket)

$3.49

$

In Stock, Qty 12

0

717

Briggs & Stratton 842730

BRACKET, Air Cleaner

$38.99

$

Usually ships in 2-12 days

0

813

Briggs & Stratton 807376

CLAMP

$6.49

$

In Stock, only 1 left!

0

890

Briggs & Stratton 841614

BRACKET, Support

$23.99

$

Usually ships in 2-12 days

0

961

Briggs & Stratton 690713

NUT
(Superseded to 806447)

Note: (Air Cleaner Bracket)

$

$

Not available

964

Briggs & Stratton 590799

CAP, Connector

$9.49

$

In Stock, only 1 left!

0

968

Briggs & Stratton 842621

COVER, Air Cleaner

$81.99

$

In Stock, only 1 left!

0

1315

Briggs & Stratton 809905

HOSE, Air Cleaner

$69.99

$

Usually ships in 2-12 days

0

1337

Briggs & Stratton 807382

SCREW

Note: (Air Cleaner Clamp) (M8x25mm)

$3.49

$

Usually ships in 2-12 days

0

1406

Briggs & Stratton 842623

VALVE, Debris

$20.99

$

In Stock, only 1 left!

0

1408

Briggs & Stratton 841552

SCREW

Note: (Air Cleaner Bracket)

$3.49

$

In Stock, only 1 left!

0
