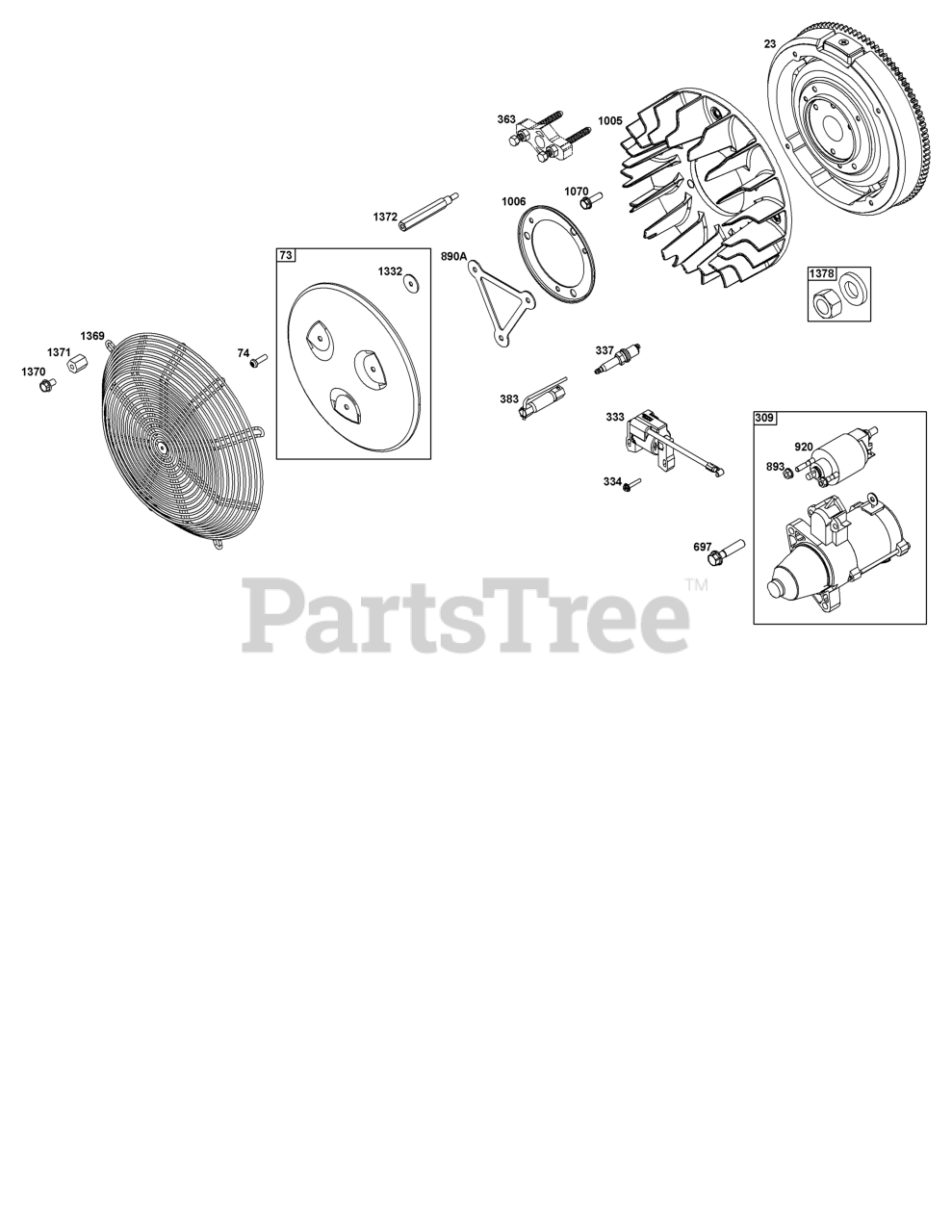

542477-0005-J1 - Briggs & Stratton Horizontal Engine Flywheel, Ignition, and Starter Group Parts Diagram

Horizontal Engine

Flywheel, Ignition, and Starter Group Parts Diagram

  • Title

23

Briggs & Stratton 844385

FLYWHEEL

$346.99

$

Usually ships in 2-12 days

0

73

Briggs & Stratton 841840

SCREEN, Rotating

$50.99

$

In Stock, only 2 left!

0

74

Briggs & Stratton 809947

SCREW

Note: (Rotating Screen)

$4.99

$

In Stock, only 2 left!

0

309

Briggs & Stratton 845760

MOTOR, Starter
(Superseded to 84008634)

$238.99

$

Usually ships in 2-12 days

0

333

Briggs & Stratton 845126

ARMATURE, Magneto

$66.99

$

In Stock, only 2 left!

0

334

Briggs & Stratton 692066

SCREW

Note: (Magneto Armature)

$3.99

$

In Stock, Qty 5

0

337

PLUG, Spark

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

363

Briggs & Stratton 19203

PULLER, Flywheel

$28.99

$

In Stock, only 2 left!

0

383

WRENCH, Spark Plug

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

697

Briggs & Stratton 690711

SCREW

Note: (Starter Motor) (Drive Cap)

$7.49

$

Usually ships in 2-12 days

0

890A

Briggs & Stratton 809987

BRACKET, Support

$15.99

$

Usually ships in 2-12 days

0

893

Briggs & Stratton 845758

NUT

Note: (Starter Solenoid)

$2.99

$

In Stock, only 2 left!

0

920

Briggs & Stratton 847694

SOLENOID, Starter
(Superseded to 84008635)

$64.99

$

In Stock, only 3 left!

0

1005

Briggs & Stratton 846996

FAN, Flywheel

$54.99

$

Usually ships in 2-12 days

0

1006

Briggs & Stratton 847198

RETAINER, Fan

$10.99

$

In Stock, only 1 left!

0

1070

Briggs & Stratton 807435

SCREW

Note: (Flywheel Fan)

$3.99

$

Usually ships in 2-12 days

0

1332

Briggs & Stratton 809948

WASHER

Note: (Rotating Screen)

$5.49

$

In Stock, only 1 left!

0

1369

Briggs & Stratton 842858

GUARD, Flywheel Fan

$89.99

$

In Stock, only 1 left!

0

1370

Briggs & Stratton 841233

SCREW

Note: (Flywheel Fan Guard)

$3.99

$

In Stock, Qty 14

0

1371

Briggs & Stratton 841537

NUT

Note: (Flywheel Fan Guard)

$10.99

$

In Stock, only 3 left!

0

1372

Briggs & Stratton 809946

STUD

Note: (Rotating Screen)

$17.99

$

In Stock, only 1 left!

0

1378

Briggs & Stratton 844795

SET, Washer/Nut

Note: (Flywheel)

$16.99

$

Usually ships in 2-12 days
