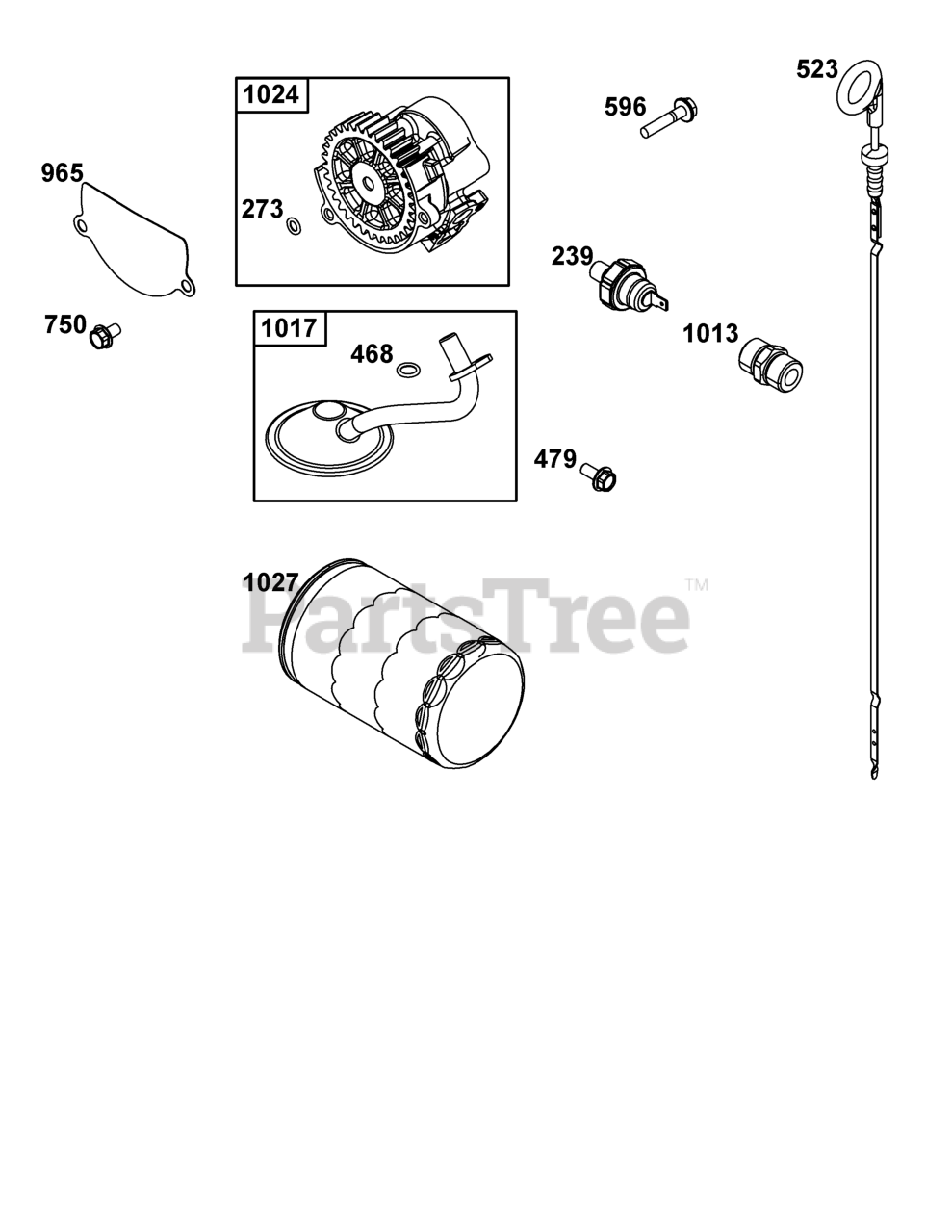

542477-0005-J1 - Briggs & Stratton Horizontal Engine Lubrication Group Parts Diagram

Horizontal Engine

Lubrication Group Parts Diagram

  • Title

523

Briggs & Stratton 841007

DIPSTICK

$33.99

$

In Stock, only 2 left!

0

239

Briggs & Stratton 841281

SWITCH, Oil Pressure

$35.99

$

In Stock, only 2 left!

0

1027

Briggs & Stratton 842921

FILTER, Oil

$14.99

$

In Stock, Qty 20+

0

596

Briggs & Stratton 691492

SCREW

Note: (Oil Pump) (M6x18mm)

$4.49

$

In Stock, Qty 12

0

273

Briggs & Stratton 690681

SEAL, O-Ring

Note: (Oil Pump)

$6.49

$

In Stock, only 2 left!

0

468

Briggs & Stratton 690690

SEAL, O-Ring

Note: (Oil Pump Screen)

$6.49

$

Usually ships in 2-12 days

0

965

Briggs & Stratton 809422

COVER, Oil Pump

$21.99

$

Usually ships in 2-12 days

0

479

Briggs & Stratton 807084

SCREW

Note: (Oil Pump Screen) (M6x14mm)

$3.99

$

In Stock, only 3 left!

0

1024

Briggs & Stratton 845983

PUMP, Oil

$175.99

$

Usually ships in 2-12 days

0

1017

Briggs & Stratton 809421

SCREEN, Oil Pump

$38.99

$

Usually ships in 2-12 days

0

750

Briggs & Stratton 841233

SCREW

Note: (Oil Pump Cover) (M6x10mm)

$3.99

$

In Stock, Qty 14

0

1013

Briggs & Stratton 809505

NIPPLE, Oil Filter

$39.99

$

Usually ships in 2-12 days

0
