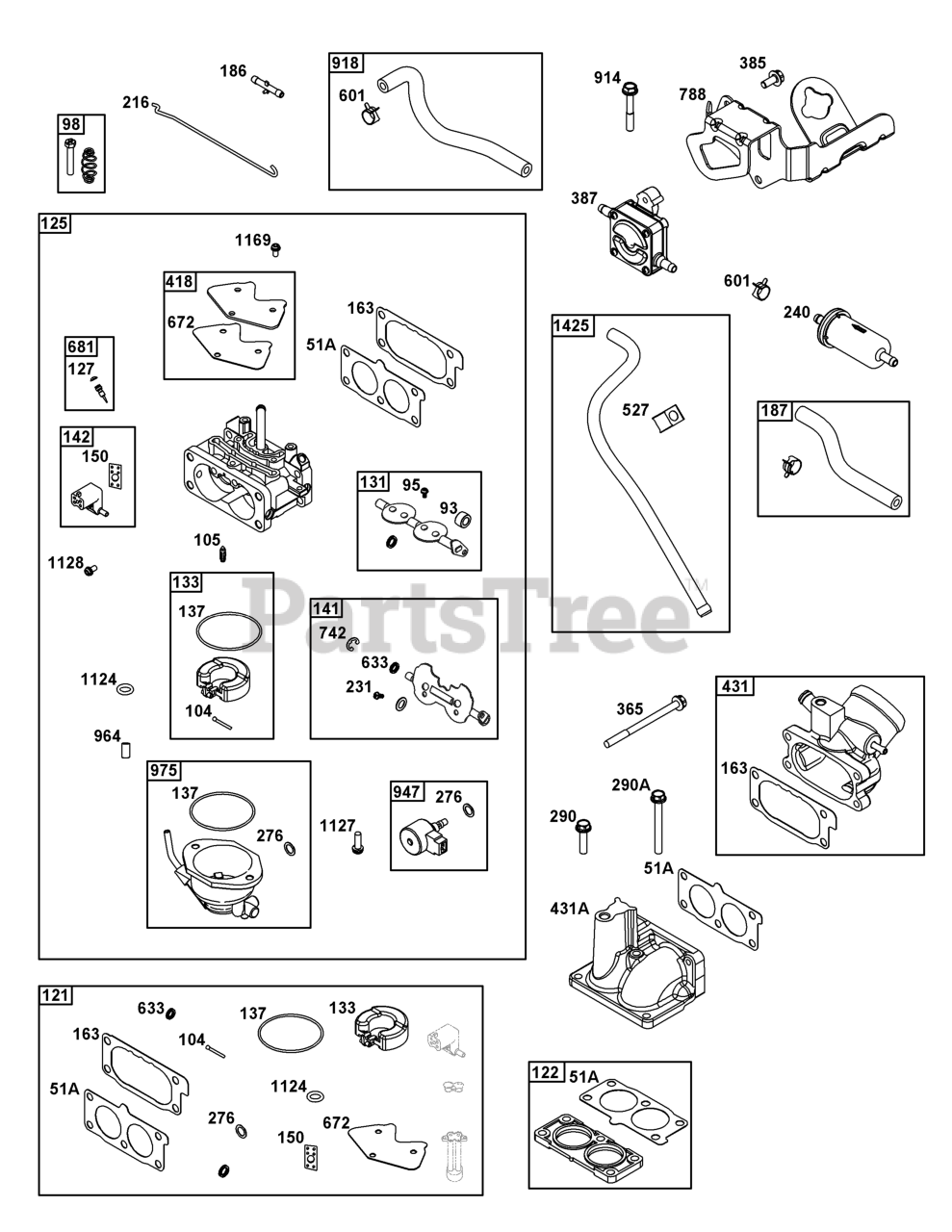

542477-0008-J1 - Briggs & Stratton Horizontal Engine Carburetor and Fuel Supply Group Parts Diagram

Horizontal Engine

Carburetor and Fuel Supply Group Parts Diagram

  • Title

51A

GASKET, Intake

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

93

Briggs & Stratton 845864

BUSHING, Throttle Shaft

$9.49

$

Usually ships in 2-12 days

0

95

Briggs & Stratton 690718

SCREW

Note: (Throttle Valve)

$5.99

$

In Stock, only 2 left!

0

98

Briggs & Stratton 841842

KIT, Idle Speed

$13.99

$

Usually ships in 2-12 days

0

104

Briggs & Stratton 690882

PIN, Float Hinge

$9.99

$

Usually ships in 2-12 days

0

105

Briggs & Stratton 698537

VALVE, Float Needle

$16.99

$

In Stock, only 4 left!

0

121

Briggs & Stratton 841548

KIT, Carburetor Overhaul

Note: (Service Kits may include extra parts not specific to this engine.)

$112.99

$

Usually ships in 2-12 days

0

122

Briggs & Stratton 844713

SPACER, Carburetor

$14.99

$

In Stock, only 2 left!

0

125

Briggs & Stratton 845274

CARBURETOR

$375.99

$

In Stock, only 1 left!

0

127

Briggs & Stratton 844590

PLUG, Welch

$11.99

$

Usually ships in 2-12 days

0

131

Briggs & Stratton 841551

KIT, Throttle Shaft

$

$

Not available

133

Briggs & Stratton 841545

FLOAT, Carburetor

$49.99

$

Usually ships in 2-12 days

0

137

Briggs & Stratton 841651

GASKET, Float Bowl

$7.99

$

In Stock, only 3 left!

0

141

Briggs & Stratton 844733

KIT, Choke Shaft

$62.99

$

Usually ships in 2-12 days

0

142

Briggs & Stratton 699726

NOZZLE, Carburetor

$38.99

$

Usually ships in 2-12 days

0

150

Briggs & Stratton 841649

GASKET, Nozzle

$5.99

$

In Stock, only 3 left!

0

163

GASKET, Air Cleaner

Note: (Part information located in Air Cleaner Group.)

$

$

Not available

186

Briggs & Stratton 845121

CONNECTOR, Hose

$6.99

$

Usually ships in 2-12 days

0

187

Briggs & Stratton 791766

LINE, Fuel

$8.49

$

In Stock, Qty 20+

0

216

Briggs & Stratton 809788

LINK, Choke

$11.99

$

Usually ships in 2-12 days

0

231

Briggs & Stratton 690718

SCREW

Note: (Choke Valve)

$5.99

$

In Stock, only 2 left!

0

240

Briggs & Stratton 845125

FILTER, Fuel

$7.99

$

In Stock, Qty 20+

0

276

Briggs & Stratton 695410

WASHER, Sealing

$7.49

$

In Stock, Qty 11

0

290

SCREW

Note: (Part information located in Air Cleaner Group.)

$

$

Not available

290A

SCREW

Note: (Part information located in Air Cleaner Group.)

$

$

Not available

365

Briggs & Stratton 807437

SCREW

Note: (Carburetor/Throttle Body)

$4.49

$

Usually ships in 2-12 days

0

385

Briggs & Stratton 807084

SCREW

Note: (Fuel Pump)

$3.99

$

In Stock, only 3 left!

0

387

Briggs & Stratton 84003048

PUMP, Fuel

$72.99

$

In Stock, Qty 15

0

418

Briggs & Stratton 843346

PLATE, Carburetor Cover

$9.49

$

Usually ships in 2-12 days

0

431

ELBOW, Intake

Note: (Part information located in Air Cleaner Group.)

$

$

Not available

431A

ELBOW, Intake

Note: (Part information located in Air Cleaner Group.)

$

$

Not available

527

Briggs & Stratton 807116

CLAMP, Cable

$5.49

$

In Stock, only 1 left!

0

601

Briggs & Stratton 691038

CLAMP, Hose

$3.99

$

In Stock, Qty 20+

0

633

Briggs & Stratton 690722

SEAL, Choke/Throttle Shaft

$16.99

$

In Stock, only 4 left!

0

672

Briggs & Stratton 841655

GASKET, Carburetor Plate

$13.99

$

In Stock, only 1 left!

0

681

Briggs & Stratton 845290

KIT, Needle Valve

$27.99

$

Usually ships in 2-12 days

0

742

Briggs & Stratton 807001

RETAINER, E Ring

$5.49

$

Usually ships in 2-12 days

0

788

Briggs & Stratton 844528

BRACKET, Fuel Pump

$24.99

$

Usually ships in 2-12 days

0

914

SCREW

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

918

Briggs & Stratton 844525

HOSE, Vacuum

$10.99

$

Usually ships in 2-12 days

0

947

Briggs & Stratton 841546

SOLENOID, Fuel

$183.99

$

In Stock, only 1 left!

0

964

Briggs & Stratton 807468

CAP, Carburetor

$9.99

$

In Stock, only 2 left!

0

975

Briggs & Stratton 841650

BOWL, Float

$113.99

$

Usually ships in 2-12 days

0

1124

Briggs & Stratton 841653

SEAL, O-Ring

Note: (Fuel Transfer Tube)

$13.99

$

In Stock, Qty 10

0

1127

Briggs & Stratton 841621

SCREW

Note: (Float Bowl to Carburetor Body)

$4.49

$

Usually ships in 2-12 days

0

1128

Briggs & Stratton 690990

SCREW

Note: (Carburetor Nozzle)

$4.49

$

Usually ships in 2-12 days

0

1169

Briggs & Stratton 690990

SCREW

Note: (Carburetor Cover Plate)

$4.49

$

Usually ships in 2-12 days

0

1425

Briggs & Stratton 844712

HOSE, Purge Line

$32.99

$

Usually ships in 2-12 days

0
