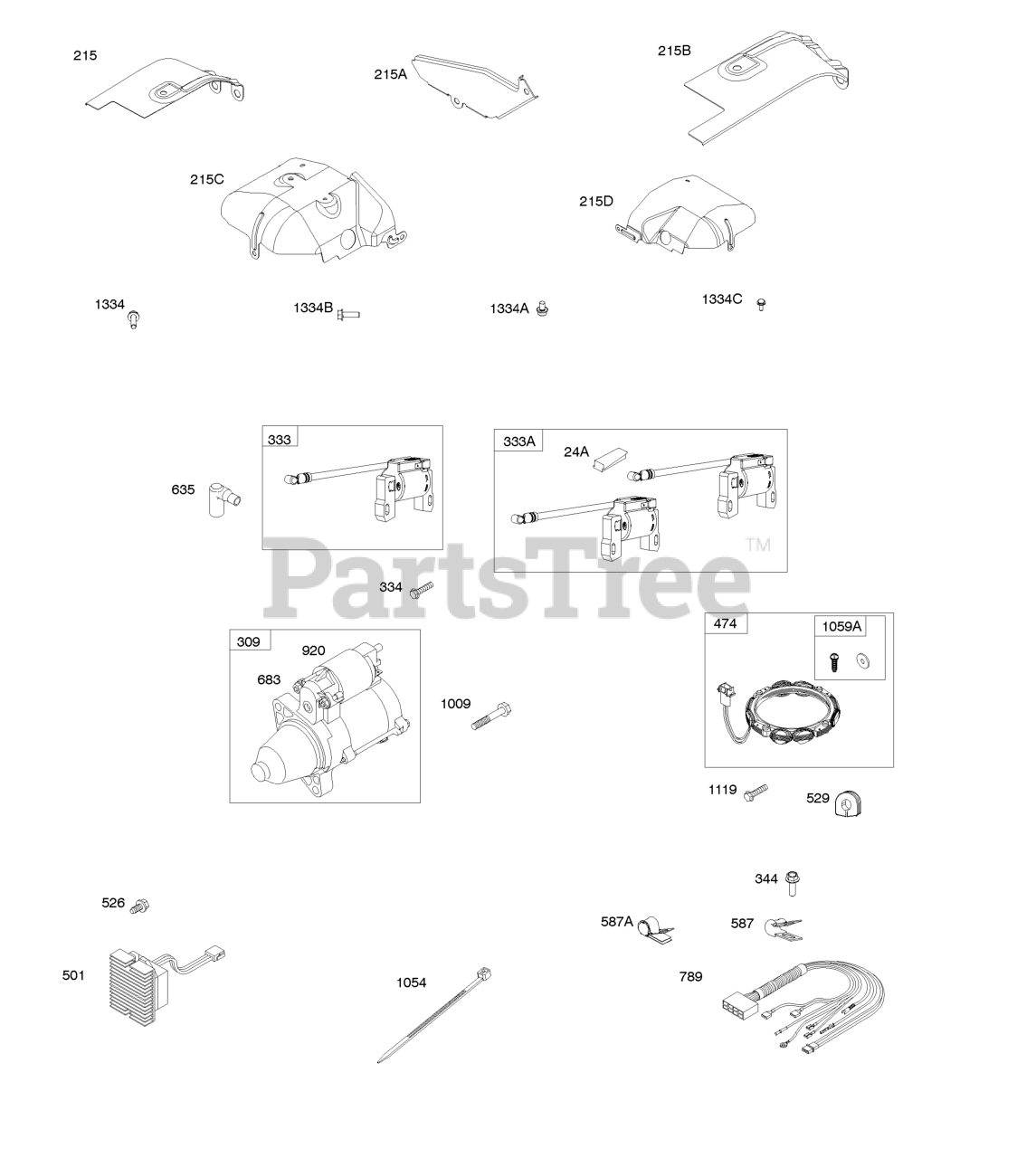

542777-1113-E1 - Briggs & Stratton Vertical Engine Air Guides, Armatures, Starter Motor, Wires Parts Diagram

Vertical Engine

Air Guides, Armatures, Starter Motor, Wires Parts Diagram

  • Title

24A

Briggs & Stratton 843837

Key-Flywheel

Note: (Offset Key) (Aluminum)

$8.99

$

Usually ships in 2-12 days

0

215

Briggs & Stratton 809728

Guide-Air

Note: (Cylinder #1)

$44.99

$

Usually ships in 2-12 days

0

215A

Briggs & Stratton 809739

Guide-Air

$41.99

$

Usually ships in 2-12 days

0

215B

Briggs & Stratton 809737

Guide-Air

Note: (Cylinder #2)

$38.99

$

Usually ships in 2-12 days

0

215C

Briggs & Stratton 809738

GUIDE, Air

Note: (Cylinder #1)

$

$

Not available

215D

Briggs & Stratton 809897

GUIDE, Air

Note: (Cylinder #2)

$

$

Not available

309

Briggs & Stratton 845761

Motor-Starter
(Superseded to 84006533)

$385.99

$

Usually ships in 2-12 days

0

333

Briggs & Stratton 845126

Armature-Magneto

Note: (Cylinders #1 and #2) Used After Code Date 06111400

$66.99

$

In Stock, only 2 left!

0

333A

Briggs & Stratton 843860

Armature-Magneto

Note: (Includes Offset Flywheel Key) Used Before Code Date 06111500

$123.99

$

In Stock, only 2 left!

0

334

Briggs & Stratton 692066

Screw

Note: (Magneto Armature) (M4x23mm)

$3.99

$

In Stock, Qty 5

0

344

Briggs & Stratton 841233

SCREW

Note: (Cable Clamp) (M6x10mm)

$3.99

$

In Stock, Qty 14

0

474

Briggs & Stratton 696579

Alternator

$118.99

$

In Stock, only 3 left!

0

501

Briggs & Stratton 691573

Regulator
(Superseded to 84004837)

$109.99

$

In Stock, only 2 left!

0

526

Briggs & Stratton 690717

Screw

Note: (Regulator)

$3.99

$

Usually ships in 2-12 days

0

529

Briggs & Stratton 690744

Grommet

Note: (Magneto Armature Wires)

$7.99

$

Usually ships in 2-12 days

0

587

Briggs & Stratton 807386

Clamp-Cable

$3.49

$

Usually ships in 2-12 days

0

587A

Briggs & Stratton 807116

CLAMP, Cable

$5.49

$

In Stock, only 1 left!

0

635

Briggs & Stratton 692076

BOOT, Spark Plug

$5.99

$

In Stock, Qty 8

0

697

Briggs & Stratton 690711

Screw

Note: (Starter Motor) (Drive Cap)

$7.49

$

Usually ships in 2-12 days

0

789

Briggs & Stratton 809906

Harness-Wiring

$52.99

$

In Stock, only 2 left!

0

893

Briggs & Stratton 845758

Nut

Note: (Starter Solenoid)

$2.99

$

In Stock, only 2 left!

0

920

Briggs & Stratton 845757

Solenoid-Starter
(Superseded to 846737)

$

$

Not available

1054

Briggs & Stratton 280275

Tie-Cable

$4.49

$

Usually ships in 2-12 days

0

1059A

Briggs & Stratton 698516

KIT, Screw/Washer

Note: (Alternator)

$5.99

$

Usually ships in 2-12 days

0

1119

Briggs & Stratton 691552

SCREW

Note: (Alternator)

$4.49

$

Usually ships in 2-12 days

0

1334

Briggs & Stratton 690677

SCREW

Note: (Air Guide) (M4x12mm)

$4.49

$

In Stock, only 2 left!

0

1334A

Briggs & Stratton 692062

Screw

Note: (Air Guide) (M8x18mm)

$3.99

$

In Stock, Qty 8

0

1334B

Briggs & Stratton 807084

SCREW

Note: (Air Guide) (M6x14mm)

$3.99

$

In Stock, only 3 left!

0

1334C

Briggs & Stratton 841233

SCREW

Note: (Air Guide) (M6x10mm)

$3.99

$

In Stock, Qty 14

0
