542777-2113-G1 - Briggs & Stratton Vertical Engine Cylinder, Oil Cooler, Piston/Rings/Connecting Rod Parts Diagram

Vertical Engine

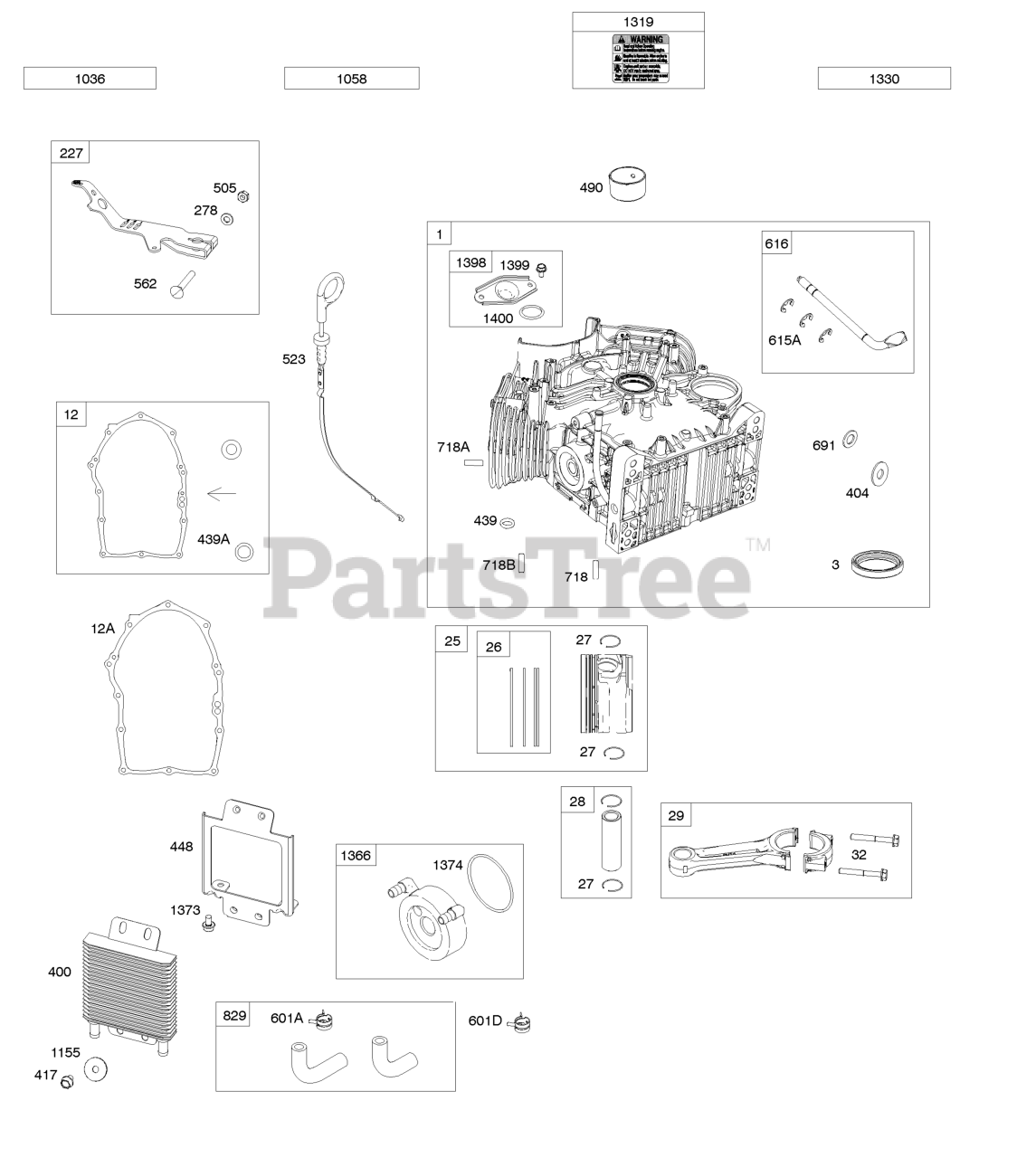

Cylinder, Oil Cooler, Piston/Rings/Connecting Rod Parts Diagram

  • Title

1

Briggs & Stratton 845799

Cylinder Assembly

$703.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 841596

SEAL, Oil

Note: (Magneto Side)

$17.99

$

In Stock, only 4 left!

0

12

Briggs & Stratton 846037

Gasket-Crankcase

Note: Used After Code Date 13072100

$64.99

$

In Stock, only 1 left!

0

12A

Briggs & Stratton 844107

Gasket-Crankcase

Note: Used Before Code Date 13072200

$

$

Not available

12B

Briggs & Stratton 843969

Gasket-Crankcase

Note: Used After Code Date 13072100

$64.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 841931

Piston Assembly

Note: (.020" Oversize)

$192.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 809790

Piston Assembly

Note: (Standard)

$185.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 841932

RING SET

Note: (.020" Oversize)

$

$

Not available

26

Briggs & Stratton 809972

RING SET

Note: (Standard)

$75.99

$

In Stock, only 1 left!

0

27

Briggs & Stratton 807351

LOCK, Piston Pin

$4.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 807361

PIN, Piston

$26.99

$

In Stock, only 2 left!

0

29

Briggs & Stratton 809275

Rod-Connecting

$69.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 807363

SCREW

Note: (Connecting Rod)

$7.49

$

In Stock, only 2 left!

0

227

Briggs & Stratton 842534

Lever-Governor Control

$45.99

$

Usually ships in 2-12 days

0

278

Briggs & Stratton 842122

Washer

Note: (Governor Control Lever)

$5.49

$

In Stock, only 1 left!

0

400

Briggs & Stratton 846489

Cooler-Oil

$154.99

$

Usually ships in 2-12 days

0

404

Briggs & Stratton 809436

Washer

Note: (Governor Crank)

$5.99

$

Usually ships in 2-12 days

0

417

Briggs & Stratton 843345

Screw

Note: (Oil Cooler) Used Before Code Date 13072700

$5.99

$

Usually ships in 2-12 days

0

439

Briggs & Stratton 692154

O-RING, Oil Gallery

Note: (Crankcase Cover/Sump or Cylinder Assembly)

$5.99

$

Usually ships in 2-12 days

0

439A

Briggs & Stratton 846027

O Ring-Oil Gallery

Note: (Crankcase Cover/Sump or Cylinder Assembly) Used After Code Date 13072100

$7.99

$

In Stock, only 2 left!

0

490

Briggs & Stratton 843433

Bearing-Magneto Side

$391.99

$

Usually ships in 2-12 days

0

505

Briggs & Stratton 690238

Nut

Note: (Governor Control Lever)

$3.49

$

In Stock, only 1 left!

0

523

Briggs & Stratton 842542

Dipstick

$29.99

$

In Stock, only 2 left!

0

562

Briggs & Stratton 843344

Bolt

Note: (Governor Control Lever)

$5.49

$

Usually ships in 2-12 days

0

601A

Briggs & Stratton 841597

CLAMP, Hose

Note: (Oil Cooler Hose)

$4.49

$

In Stock, only 3 left!

0

601D

Briggs & Stratton 845209

CLAMP, Hose

Note: (Oil Cooler Hose)

$4.49

$

Usually ships in 2-12 days

0

615A

Briggs & Stratton 809533

Retainer-Governor Shaft

Note: (Cylinder)

$4.99

$

Usually ships in 2-12 days

0

616

Briggs & Stratton 844180

Crank-Governor

$35.99

$

Usually ships in 2-12 days

0

691

Briggs & Stratton 809287

Seal-Governor Shaft

$

$

Not available

718

Briggs & Stratton 690959

PIN, Locating

Note: (Cylinder)

$6.99

$

Usually ships in 2-12 days

0

718A

Briggs & Stratton 809508

PIN, Locating

Note: (Cylinder Head)

$5.99

$

Usually ships in 2-12 days

0

718B

Briggs & Stratton 845925

PIN, Locating

Note: (Cylinder)

$5.99

$

Usually ships in 2-12 days

0

829

Briggs & Stratton 846155

Hose-Oil Cooler

$52.99

$

In Stock, only 1 left!

0

1013

Briggs & Stratton 841602

NIPPLE, Oil Filter

$55.99

$

Usually ships in 2-12 days

0

1027

Briggs & Stratton 842921

Filter-Oil

$14.99

$

In Stock, Qty 20+

0

1036

Label-Emissions

Note: (Available From A Briggs & Stratton Authorized Dealer)

$

$

Not available

1058

Operator's Manual

Note: (Not Available At This Printing)

$

$

Not available

1155

Briggs & Stratton 806647

Washer

Note: (Oil Cooler) Used Before Code Date 13072700

$4.49

$

Usually ships in 2-12 days

0

1319

Briggs & Stratton 794467

LABEL, Warning

$20.99

$

Usually ships in 2-12 days

0

1330

Briggs & Stratton 272144

Repair Manual

$48.99

$

In Stock, only 1 left!

0

1366

Briggs & Stratton 841510

DIVERTER, Oil Cooler

$87.99

$

Usually ships in 2-12 days

0

1373

Briggs & Stratton 841233

SCREW

Note: (Oil Cooler Bracket) Used After Code Date 13072600

$3.49

$

In Stock, only 2 left!

0

1374

Briggs & Stratton 841506

Seal-O Ring
(Superseded to 796863)

Note: (Oil Cooler Diverter)

$5.99

$

In Stock, only 4 left!

0

1398

Briggs & Stratton 842191

Cover-Fuel Pump

$12.99

$

Usually ships in 2-12 days

0

1399

Briggs & Stratton 690932

Screw

Note: (Fuel Pump Cover)

$3.99

$

Usually ships in 2-12 days

0

1400

Briggs & Stratton 809894

SEAL, O-Ring

Note: (Fuel Pump Cover)

$9.49

$

In Stock, only 1 left!

0
