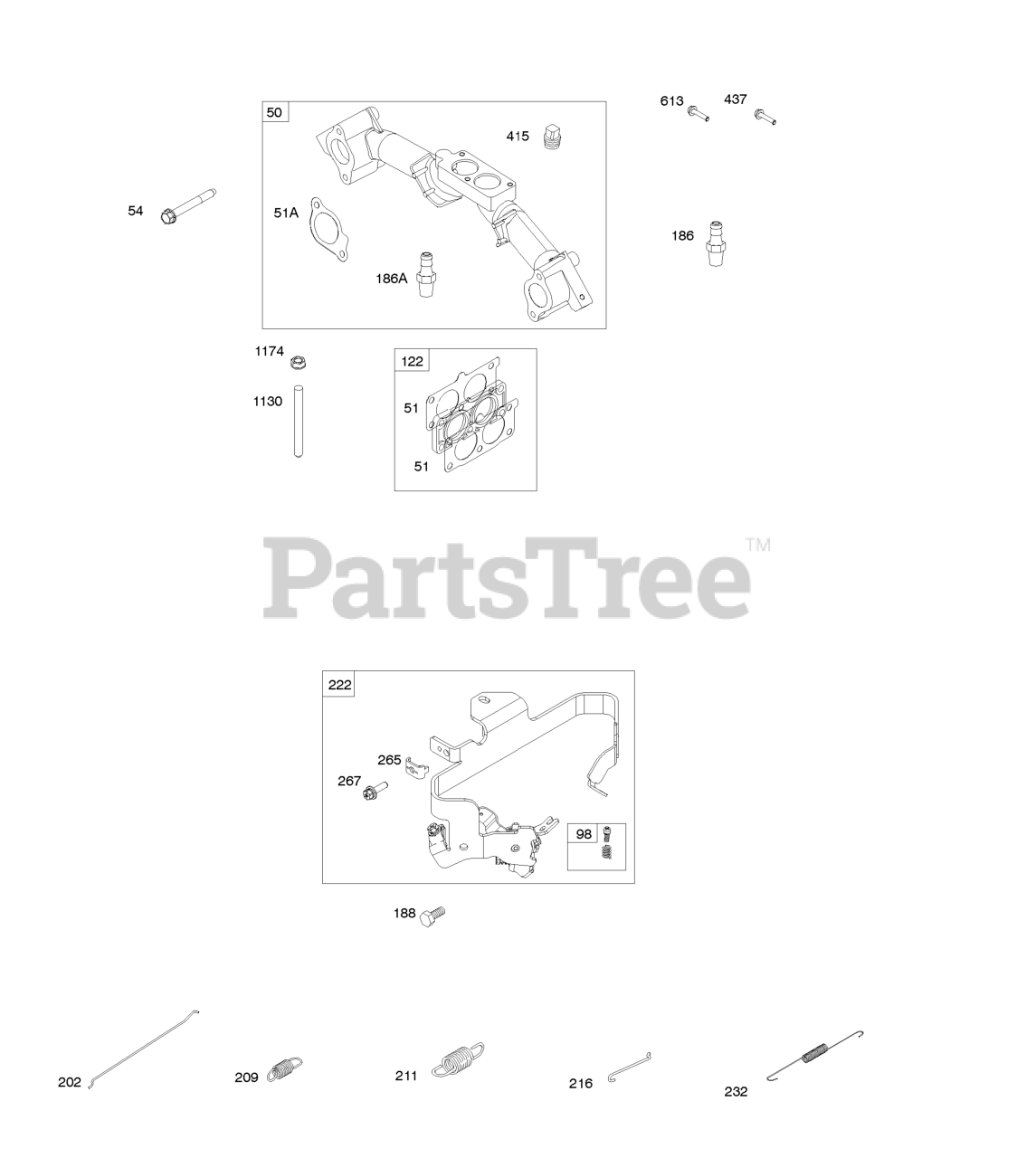

542777-2113-G1 - Briggs & Stratton Vertical Engine Intake Manifold, Brackets, Springs Parts Diagram

Vertical Engine

Intake Manifold, Brackets, Springs Parts Diagram

  • Title

50

Briggs & Stratton 844341

Manifold-Intake

$223.99

$

In Stock, only 1 left!

0

51A

Briggs & Stratton 841592

Gasket-Intake
(Superseded to 847671)

$4.49

$

In Stock, only 2 left!

0

54

Briggs & Stratton 844656

Screw

Note: (Intake Manifold) (M8x69mm) Used After Code Date 10092900

$4.49

$

Usually ships in 2-12 days

0

98

Briggs & Stratton 843550

Kit-Idle Speed

Note: (Control Bracket)

$12.99

$

Usually ships in 2-12 days

0

122

Briggs & Stratton 844713

Spacer-Carburetor

$13.99

$

In Stock, only 1 left!

0

186

Briggs & Stratton 844568

Connector-Hose

Note: (Intake Manifold)

$8.49

$

Usually ships in 2-12 days

0

186A

Briggs & Stratton 691764

Connector-Hose

Note: (Intake Manifold)

$14.99

$

In Stock, Qty 5

0

188

Briggs & Stratton 807084

SCREW

Note: (Control Bracket)

$3.49

$

In Stock, Qty 13

0

202

Briggs & Stratton 842533

Link-Mechanical Governor

$9.49

$

Usually ships in 2-12 days

0

209

Briggs & Stratton 843269

Spring-Governor

Note: (Silver)

$9.49

$

Usually ships in 2-12 days

0

211

Briggs & Stratton 809875

Spring-Governed Idle

$

$

Not available

216

Briggs & Stratton 809788

Link-Choke

$10.99

$

Usually ships in 2-12 days

0

222

Briggs & Stratton 842615

Bracket-Control

$81.99

$

Usually ships in 2-12 days

0

232

Briggs & Stratton 843248

Spring-Governor Link

$10.99

$

Usually ships in 2-12 days

0

265

Briggs & Stratton 691024

CLAMP, Casing

$3.99

$

In Stock, only 1 left!

0

267

Briggs & Stratton 841552

SCREW

Note: (Casing Clamp)

$3.49

$

In Stock, only 1 left!

0

415

Briggs & Stratton 794903

PLUG

$5.49

$

In Stock, only 1 left!

0

437

Briggs & Stratton 809743

Screw
(Superseded to 846149)

Note: (Exhaust Manifold) (M8x25mm)

$4.49

$

In Stock, only 3 left!

0

613

Briggs & Stratton 692062

Screw

Note: (Muffler) (M8x18mm)

$3.49

$

In Stock, only 1 left!

0

1130

Briggs & Stratton 841590

STUD

Note: (Intake Manifold) Used Before Code Date 10093000

$10.99

$

Usually ships in 2-12 days

0

1174

Briggs & Stratton 842067

NUT

Note: (Intake Manifold) Used Before Code Date 10093000

$3.99

$

Usually ships in 2-12 days

0
