543 XP - Husqvarna Chainsaw FUEL TANK Parts Diagram

Chainsaw

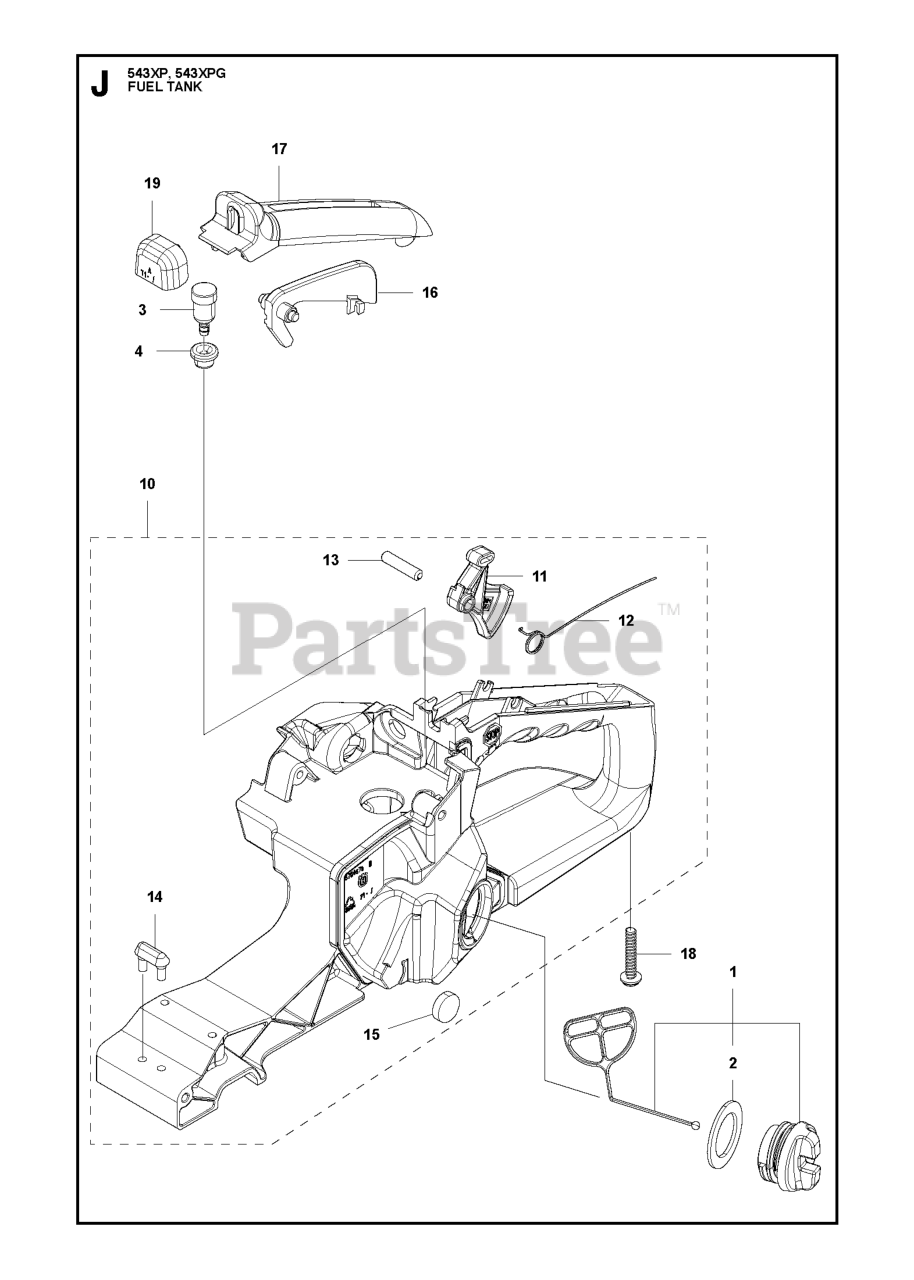

FUEL TANK Parts Diagram

  • Title

18

Husqvarna 521518301

SCREW

$3.99

$

Usually ships in 3-10 days

0

1

Husqvarna 580759101

TANK CAP ASSY

$11.99

$

In Stock, only 1 left!

0

16

Husqvarna 577435401

ARM

$7.99

$

Usually ships in 3-10 days

0

19

Husqvarna 580733001

SUPPORT

$7.99

$

In Stock, only 1 left!

0

4

Husqvarna 514201401

GROMMET
(Superseded to 514201402)

$7.49

$

In Stock, Qty 12

0

14

Husqvarna 513620201

DAMPER(A)

$

$

Not available

15

Husqvarna 513750201

HELPER(M) Z285033370

$6.49

$

Usually ships in 3-10 days

0

17

Husqvarna 583950801

COVER GRIP

$8.99

$

Usually ships in 3-10 days

0

10

Husqvarna 577434601

HANDLE ASSY

Note: 543XP

$136.99

$

Usually ships in 3-10 days

0

2

Husqvarna 579518001

PACKING

$3.99

$

Usually ships in 3-10 days

0

11

Husqvarna 580694702

THROTTLE LEVER

$9.49

$

Usually ships in 3-10 days

0

3

Husqvarna 513751501

BREATHER

$13.99

$

In Stock, only 1 left!

0

12

Husqvarna 505048001

SPRING

$6.49

$

Usually ships in 3-10 days

0

13

Husqvarna 505048101

SPRING PIN

$4.99

$

Usually ships in 3-10 days

0
