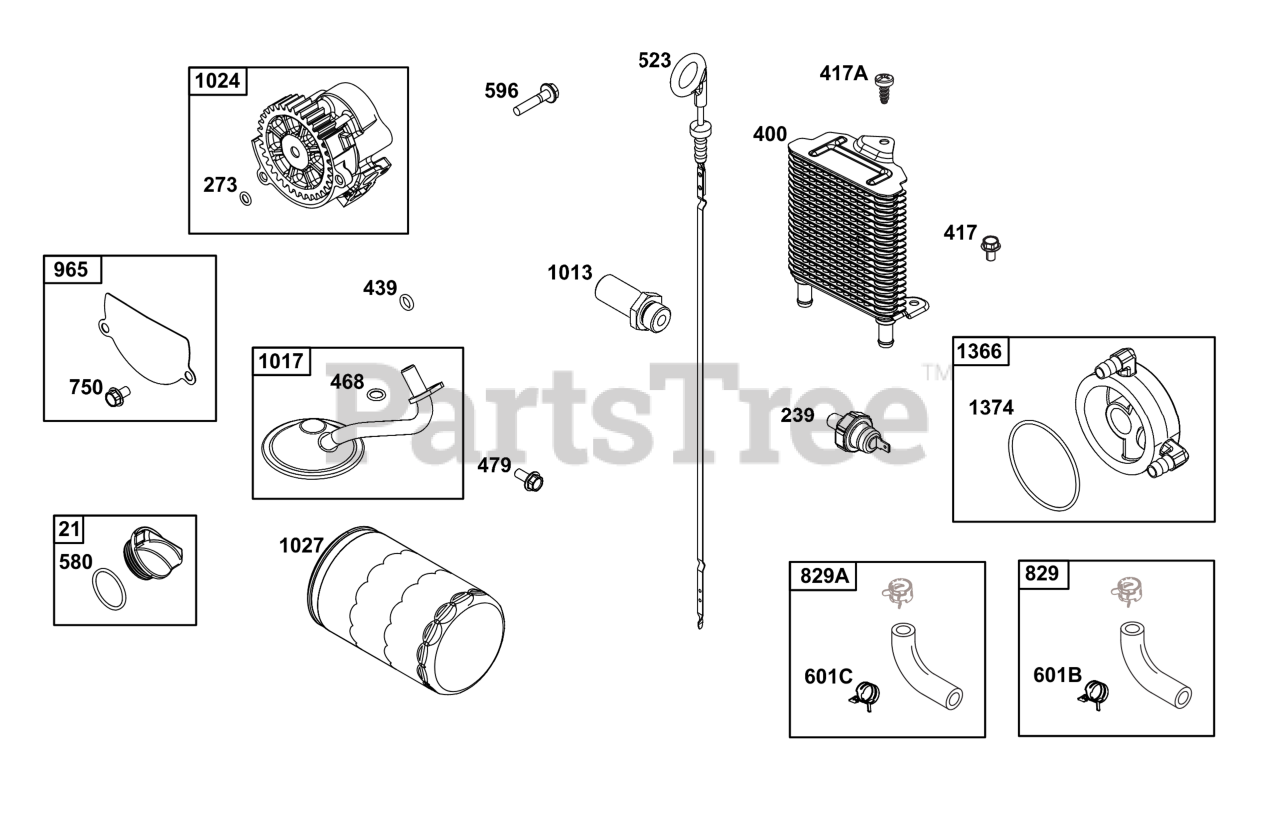

543477-0017-J1 - Briggs & Stratton Horizontal Engine Lubrication Group Parts Diagram

Horizontal Engine

Lubrication Group Parts Diagram

  • Title

21

Briggs & Stratton 809324

CAP, Oil Fill

$

$

Currently unavailable

239

Briggs & Stratton 697049

SWITCH, Oil Pressure

$30.99

$

Usually ships in 2-12 days

0

273

Briggs & Stratton 690681

SEAL, O-Ring

Note: (Oil Pump)

$6.49

$

In Stock, only 2 left!

0

400

Briggs & Stratton 846249

COOLER, Oil

$85.99

$

Usually ships in 2-12 days

0

417

Briggs & Stratton 841233

SCREW

Note: (Oil Cooler)

$3.99

$

In Stock, Qty 14

0

417A

Briggs & Stratton 846250

SCREW
(Superseded to 84006665)

Note: (Oil Cooler)

$3.99

$

Usually ships in 2-12 days

0

439

Briggs & Stratton 692154

O-RING, Oil Gallery

$5.99

$

In Stock, Qty 18

0

468

Briggs & Stratton 690690

SEAL, O-Ring

Note: (Oil Pump Screen)

$6.49

$

Usually ships in 2-12 days

0

479

Briggs & Stratton 807084

SCREW

Note: (Oil Pump Screen)

$3.99

$

In Stock, only 2 left!

0

523

Briggs & Stratton 841007

DIPSTICK

$33.99

$

In Stock, only 2 left!

0

580

Briggs & Stratton 809894

SEAL, O-Ring

$9.99

$

In Stock, only 1 left!

0

596

Briggs & Stratton 691492

SCREW

Note: (Oil Pump)

$4.49

$

In Stock, Qty 12

0

601B

Briggs & Stratton 845209

CLAMP, Hose

$4.49

$

Usually ships in 2-12 days

0

601C

Briggs & Stratton 841597

CLAMP, Hose

$4.49

$

In Stock, only 3 left!

0

750

Briggs & Stratton 841233

SCREW

Note: (Oil Pump Cover)

$3.99

$

In Stock, Qty 14

0

829

Briggs & Stratton 846247

HOSE, Oil Cooler
(Superseded to 846155)

$54.99

$

In Stock, only 2 left!

0

829A

Briggs & Stratton 846248

HOSE, Oil Cooler
(Superseded to 846155)

$54.99

$

In Stock, only 2 left!

0

965

Briggs & Stratton 809422

COVER, Oil Pump

$21.99

$

Usually ships in 2-12 days

0

1013

Briggs & Stratton 841602

NIPPLE, Oil Filter

$56.99

$

Usually ships in 2-12 days

0

1017

Briggs & Stratton 809421

SCREEN, Oil Pump

$38.99

$

Usually ships in 2-12 days

0

1024

Briggs & Stratton 845983

PUMP, Oil

$175.99

$

Usually ships in 2-12 days

0

1027

Briggs & Stratton 842921

FILTER, Oil

$14.99

$

In Stock, Qty 20+

0

1366

Briggs & Stratton 841510

DIVERTER, Oil Cooler

$96.99

$

Usually ships in 2-12 days

0

1374

Briggs & Stratton 796863

SEAL-O RING

Note: (Oil Cooler Diverter)

$6.49

$

In Stock, only 2 left!

0
