543577-0110-B1 - Briggs & Stratton Vertical Engine Alternator, Regulator, Wires, Controls, Springs, Electric Starter Parts Diagram

Vertical Engine

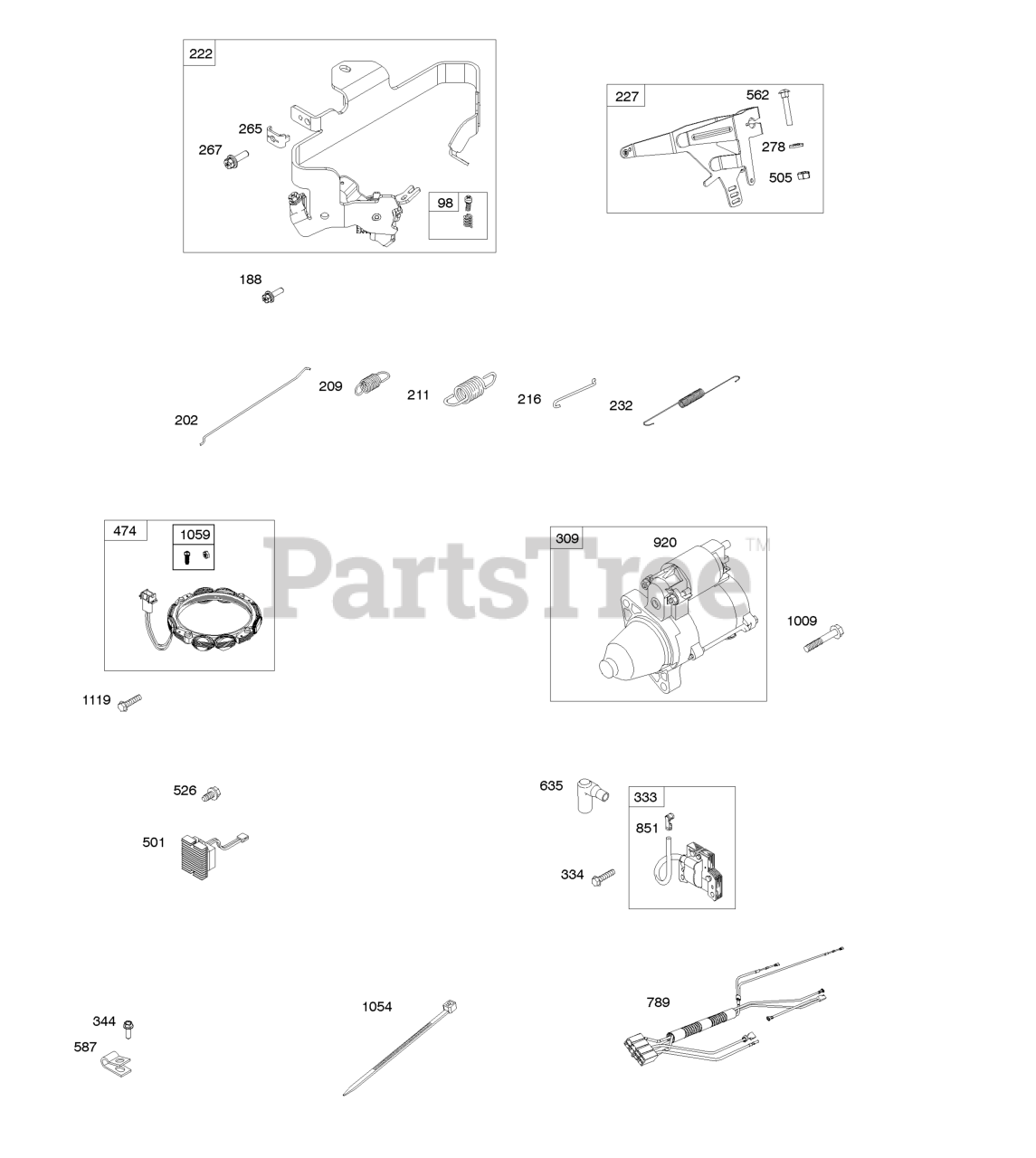

Alternator, Regulator, Wires, Controls, Springs, Electric Starter Parts Diagram

  • Title

98

Briggs & Stratton 843550

Kit-Idle Speed

Note: (Control Bracket)

$12.99

$

Usually ships in 2-12 days

0

188

Briggs & Stratton 807084

SCREW

Note: (Control Bracket)

$3.49

$

In Stock, Qty 13

0

202

Briggs & Stratton 842533

Link-Mechanical Governor

$9.49

$

Usually ships in 2-12 days

0

209

Briggs & Stratton 841684

Spring-Governor

Note: (Green)

$7.99

$

Usually ships in 2-12 days

0

211

Briggs & Stratton 809875

Spring-Governed Idle

Note: (White)

$

$

Not available

216

Briggs & Stratton 809788

Link-Choke

$10.99

$

Usually ships in 2-12 days

0

222

Briggs & Stratton 842615

Bracket-Control

$81.99

$

Usually ships in 2-12 days

0

227

Briggs & Stratton 842534

Lever-Governor Control

$45.99

$

Usually ships in 2-12 days

0

232

Briggs & Stratton 843248

Spring-Governor Link

$10.99

$

Usually ships in 2-12 days

0

265

Briggs & Stratton 691024

CLAMP, Casing

$3.99

$

In Stock, only 1 left!

0

267

Briggs & Stratton 841552

SCREW

Note: (Casing Clamp)

$3.49

$

In Stock, only 1 left!

0

278

Briggs & Stratton 842122

Washer

Note: (Governor Control Lever)

$5.49

$

In Stock, only 1 left!

0

309

Briggs & Stratton 843933

Motor-Starter
(Superseded to 845761)

Note: (0.8KW)

$385.99

$

Usually ships in 2-12 days

0

333

Briggs & Stratton 843327

Armature-Magneto
(Superseded to 845126)

$63.99

$

In Stock, Qty 6

0

334

Briggs & Stratton 692066

Screw

Note: (Magneto Armature)

$3.49

$

In Stock, Qty 11

0

344

Briggs & Stratton 692539

Screw
(Superseded to 841233)

Note: (Cable Clamp)

$3.49

$

In Stock, only 2 left!

0

474

Briggs & Stratton 696579

Alternator

$107.99

$

In Stock, Qty 6

0

501

Briggs & Stratton 691573

Regulator
(Superseded to 84004837)

$99.99

$

Usually ships in 2-12 days

0

505

Briggs & Stratton 690238

Nut

Note: (Governor Control Lever)

$3.49

$

In Stock, only 1 left!

0

526

Briggs & Stratton 691547

Screw

Note: (Regulator)

$5.99

$

In Stock, only 1 left!

0

562

Briggs & Stratton 843344

Bolt

Note: (Governor Control Lever)

$5.49

$

Usually ships in 2-12 days

0

587

Briggs & Stratton 807386

Clamp-Cable

$3.49

$

Usually ships in 2-12 days

0

635

Briggs & Stratton 692076

BOOT, Spark Plug

$5.49

$

In Stock, Qty 8

0

789

Briggs & Stratton 843654

Harness-Wiring
(Superseded to 809906)

$47.99

$

Usually ships in 2-12 days

0

851

Briggs & Stratton 493880S

TERMINAL, Spark Plug

$3.49

$

In Stock, Qty 20+

0

920

Briggs & Stratton 825418

Solenoid-Starter

$

$

Not available

1009

Briggs & Stratton 690711

Screw

Note: (Starter Motor)

$6.99

$

Usually ships in 2-12 days

0

1054

Briggs & Stratton 280275

Tie-Cable

$4.49

$

Usually ships in 2-12 days

0

1059

Briggs & Stratton 698516

KIT, Screw/Washer

$5.49

$

In Stock, only 1 left!

0

1119

Briggs & Stratton 691552

SCREW

Note: (Alternator)

$3.99

$

In Stock, only 2 left!

0
