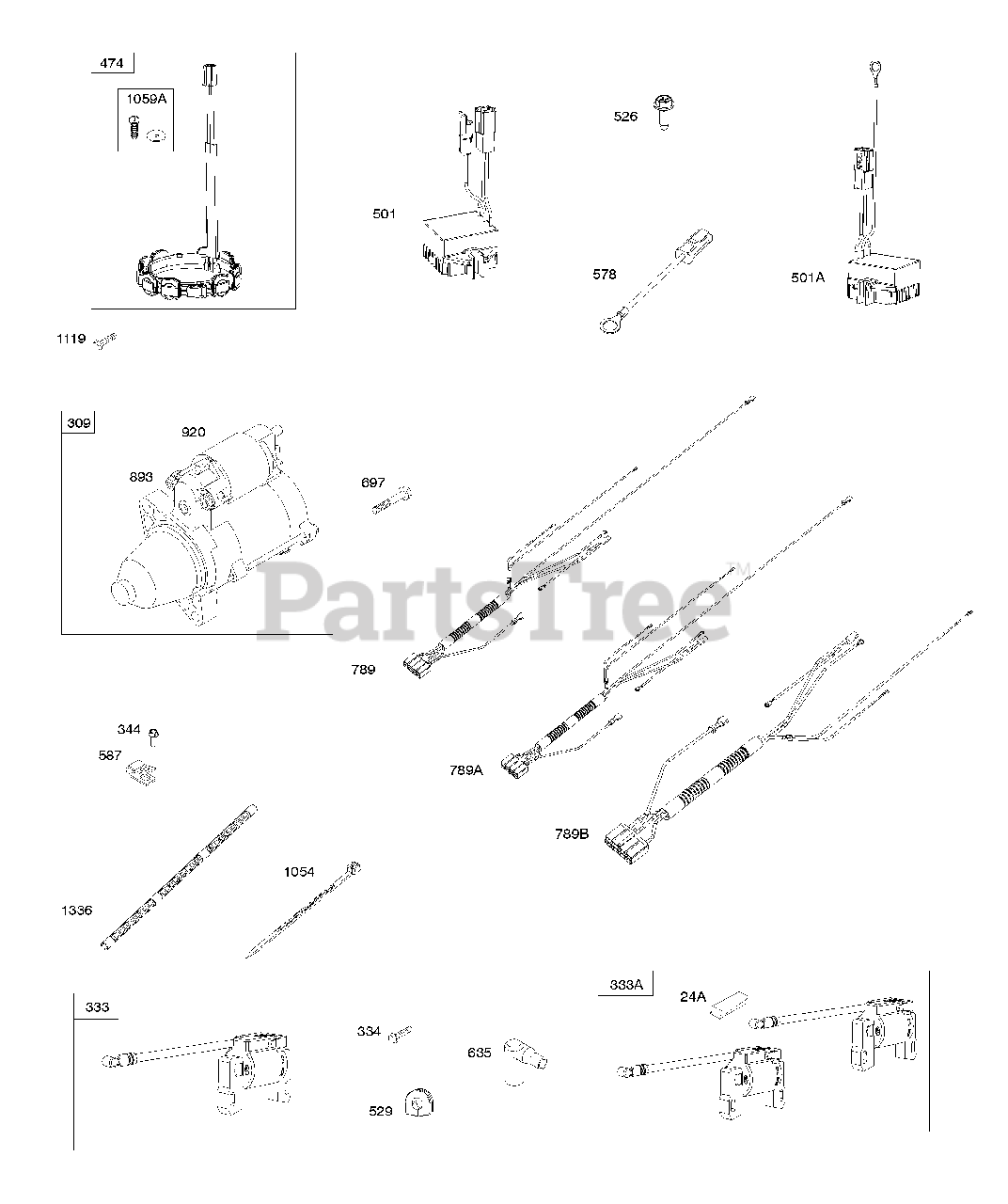

543777-2120-G1 - Briggs & Stratton Vertical Engine Alternator, Regulators, Starter Motor, Harness's Parts Diagram

Vertical Engine

Alternator, Regulators, Starter Motor, Harness's Parts Diagram

  • Title

24A

Briggs & Stratton 843837

Key-Flywheel

Note: (Offset Key) (Aluminum) Used Before Code Date 06111500

$8.99

$

Usually ships in 2-12 days

0

309

Briggs & Stratton 845761

Motor-Starter
(Superseded to 84006533)

$385.99

$

Usually ships in 2-12 days

0

333

Briggs & Stratton 845126

Armature-Magneto

Note: Used After Code Date 06111400

$66.99

$

In Stock, only 2 left!

0

333A

Briggs & Stratton 843860

Armature-Magneto

Note: (Includes Offset Flywheel Key) Used Before Code Date 06111500

$123.99

$

In Stock, only 2 left!

0

334

Briggs & Stratton 692066

Screw

Note: (Magneto Armature) (M4x23mm)

$3.99

$

In Stock, Qty 5

0

344

Briggs & Stratton 841233

SCREW

Note: (Cable Clamp) (M6x10mm)

$3.99

$

In Stock, Qty 14

0

474

Briggs & Stratton 846882

Alternator

$130.99

$

In Stock, Qty 8

0

501A

Briggs & Stratton 847385

Regulator
(Superseded to 84004837)

Note: (20 Amp)

$109.99

$

In Stock, only 2 left!

0

526

Briggs & Stratton 690717

Screw

Note: (Regulator) (M6x30mm)

$3.99

$

Usually ships in 2-12 days

0

529

Briggs & Stratton 690744

Grommet

Note: (Magneto Armature Wires)

$7.99

$

Usually ships in 2-12 days

0

578

Briggs & Stratton 846899

Wire Assembly

Note: (Regulator to Starter Motor) (Red) Used After Code Date 15110100

$12.99

$

In Stock, only 2 left!

0

587

Briggs & Stratton 846866

Clamp-Cable

$5.49

$

Usually ships in 2-12 days

0

635

Briggs & Stratton 692076

BOOT, Spark Plug

$5.99

$

In Stock, Qty 8

0

697

Briggs & Stratton 690711

Screw

Note: (Starter Motor) (Drive Cap)

$7.49

$

Usually ships in 2-12 days

0

789B

Briggs & Stratton 847061

Harness-Wiring

Note: Used After Code Date 15110100

$87.99

$

Usually ships in 2-12 days

0

893

Briggs & Stratton 845758

Nut

Note: (Starter Solenoid)

$2.99

$

In Stock, only 2 left!

0

920

Briggs & Stratton 846737

Solenoid-Starter
(Superseded to 847694)

$64.99

$

In Stock, only 3 left!

0

1054

Briggs & Stratton 280275

Tie-Cable

$4.49

$

Usually ships in 2-12 days

0

1059A

Briggs & Stratton 698516

KIT, Screw/Washer

Note: (Alternator)

$5.99

$

Usually ships in 2-12 days

0

1119

Briggs & Stratton 691552

SCREW

Note: (Alternator) (M4x30mm)

$4.49

$

Usually ships in 2-12 days

0

1336

Briggs & Stratton 841015

SHIELD, Wire Protective
(Superseded to 846822)

$12.99

$

Usually ships in 2-12 days
