544921801 - Husqvarna Snow Blower Attachment (2007-02) DRIVE Parts Diagram

Snow Blower Attachment

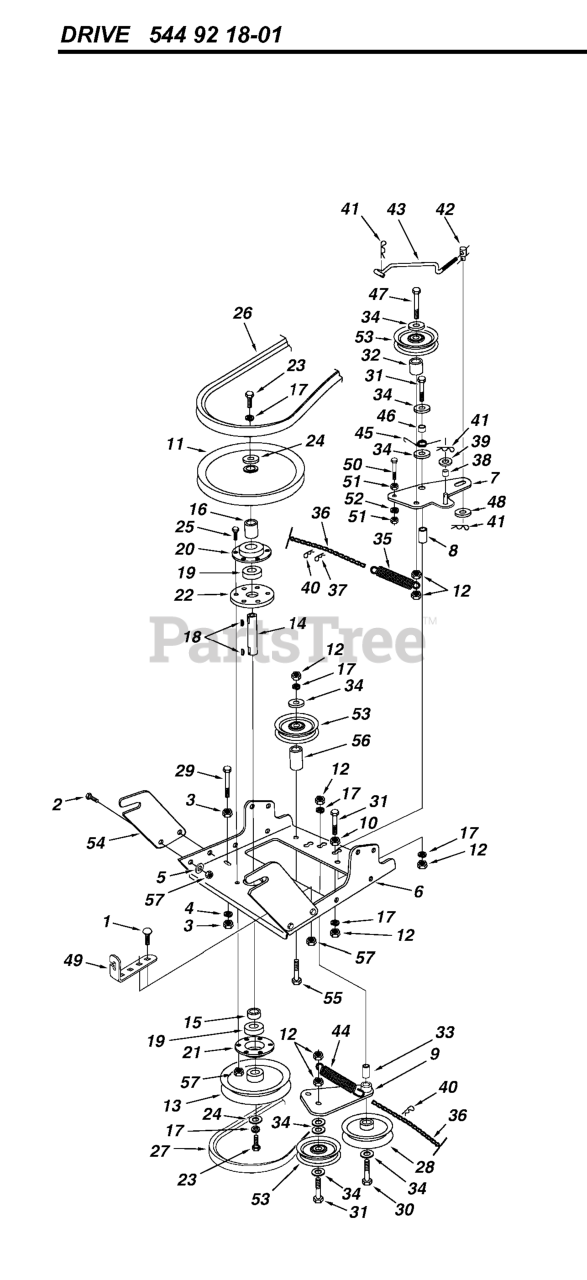

DRIVE Parts Diagram

  • Title

9

Husqvarna 501345001

IDLER BRACKET 63762

$

$

Not available

32

Husqvarna 501346501

SPACER 24571

$

$

Not available

25

Husqvarna 531007426

BOLT

$

$

Not available

35

Husqvarna 501346701

SPRING 46959

$

$

Not available

56

Husqvarna 501348201

SPACER 25780

$

$

Not available

42

Husqvarna 501347101

TRUNNION 711-0198

$

$

Not available

45

Husqvarna 501347401

SPRING 47607

$

$

Not available

1

Husqvarna 872140506

RP BOLT 5/16-18 X3/4 ZN/YEL GR
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

43

Husqvarna 501347201

ROD 46948

$

$

Not available

10

Husqvarna 731232001

Nut

$6.49

$

In Stock, Qty 13

0

23

Husqvarna 531007625

BOLT

$

$

Not available

18

Husqvarna 501345601

KEY 741-0161

$

$

Not available

15

Husqvarna 501345401

SPACER 750-0456

$

$

Not available

51

Husqvarna 731231601

NUT

$6.49

$

In Stock, Qty 5

0

4

Husqvarna 735116405

WASHER

$

$

Not available

12

Husqvarna 501345201

NUT 43082

$

$

Not available

41

Husqvarna 501347001

PIN 47134

$

$

Not available

53

Husqvarna 501347901

PULLEY 48883

$

$

Not available

6

Husqvarna 501344701

FRAME 25727

$

$

Not available

11

Husqvarna 501345101

PULLEY 46981

$

$

Not available

54

Husqvarna 501348001

BRACKET 25728

$

$

Not available

24

Husqvarna 501339601

WASHER

$

$

Not available

31

Husqvarna 531002732

BOLT

$

$

Not available

26

Husqvarna 501346101

BELT 46989

$

$

Not available

44

Husqvarna 501347301

SPRING 47620

$

$

Not available

33

Husqvarna 501346601

SPACER 24472

$

$

Not available

17

Husqvarna 734116401

WASHER BRB 8.4X17

$6.49

$

In Stock, only 4 left!

0

21

Husqvarna 501345901

HOUSING 15296A

$

$

Not available

57

Husqvarna 501332601

NUT 47810

$

$

Not available

20

Husqvarna 501345801

HOUSING

$

$

Not available

48

Husqvarna 501347601

WASHER 47605

$

$

Not available

36

Husqvarna 501346801

CHAIN 46963

$

$

Not available

34

Husqvarna 734117201

WASHER
(Superseded to 819121414)

$3.49

$

In Stock, Qty 20+

0

50

Husqvarna 501347801

BOLT 49870

$

$

Not available

39

Husqvarna 734115201

WASHER - M6

$4.99

$

In Stock, Qty 13

0

26

Husqvarna 501346201

BELT 48138

$

$

Not available

55

Husqvarna 501348101

BOLT 46938

$

$

Not available

14

Husqvarna 501345301

SHAFT 738-0680

$

$

Not available

16

Husqvarna 501345501

SPACER 750-0660

$

$

Not available

28

Husqvarna 501340001

PULLEY 47044

$

$

Not available

49

Husqvarna 501347701

BRACKET 24558

$

$

Not available

13

Husqvarna 584245301

PULLEY

$

$

Not available

52

Husqvarna 735115301

SPRING WASHER

$4.99

$

In Stock, only 1 left!

0

7

Husqvarna 501344801

IDLER ARM 63904

$

$

Not available

2

Husqvarna 874780512

BOLT.FIN.HEX.5/16-18X3/4
(Superseded to 596030501)

$3.99

$

In Stock, Qty 20+

0

46

Husqvarna 531004640

BUSHING

$

$

Not available

19

Husqvarna 501345701

BALL BEARING 741-0919

$

$

Not available

3

Husqvarna 873220500

NUT

$6.49

$

Usually ships in 3-10 days

0

30

Husqvarna 531008114

NEEDS DESCRIPTION

$

$

Currently unavailable

27

Husqvarna 501346301

BELT 47846

$

$

Not available

22

Husqvarna 501346001

SPACER 14088B

$

$

Not available

8

Husqvarna 501344901

SPACER 24286

$

$

Not available

37

Husqvarna 531004637

PIN

$

$

Not available

47

Husqvarna 501347501

BOLT 43509

$

$

Not available

40

Husqvarna 721680251

R-CLIP

$5.99

$

Usually ships in 3-10 days

0

5

Husqvarna 734116401

WASHER BRB 8.4X17

$6.49

$

In Stock, only 4 left!

0

38

Husqvarna 501346901

SPACER 23727

$

$

Not available

29

Husqvarna 501346401

BOLT 47025

$

$

Not available
