545/545G Mark II - Husqvarna Chainsaw CARBURETOR & AIR FILTER Parts Diagram

Chainsaw

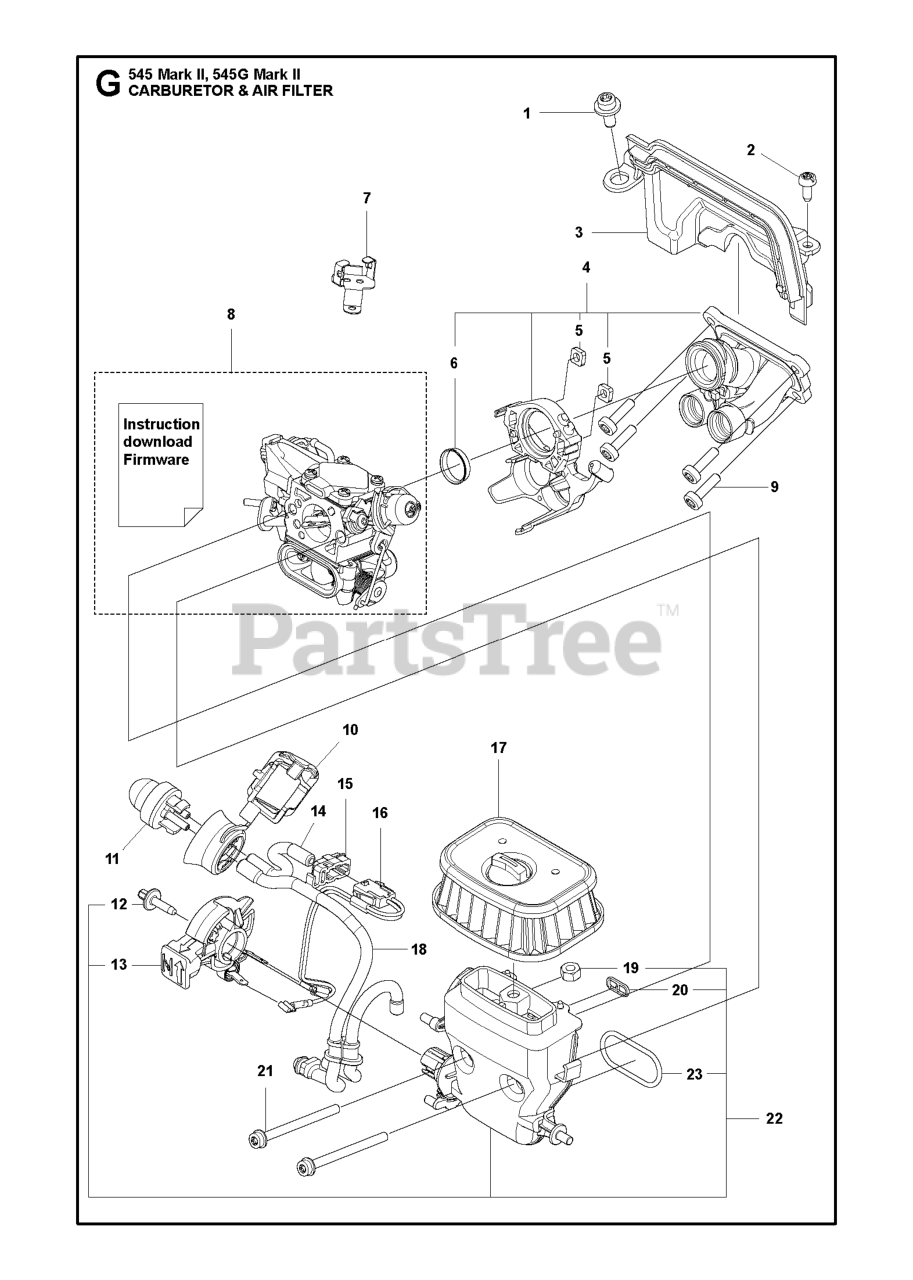

CARBURETOR & AIR FILTER Parts Diagram

  • Title

22

Husqvarna 589550701

FILTER HOLDER ASSY

Note: Black

$

$

Not available

20

Husqvarna 525619201

SEALING

$4.99

$

In Stock, only 2 left!

0

5

Husqvarna 503226503

NUT

$4.99

$

In Stock, only 1 left!

0

23

Husqvarna 525619001

SEALING

$8.49

$

In Stock, only 2 left!

0

3

Husqvarna 589584501

INSULATION WALL

$7.49

$

Usually ships in 3-10 days

0

8

Husqvarna 596219202

CARBURETTOR KIT AT-15 H545/545

$

$

Not available

12

Husqvarna 505156201

SCREW

$4.99

$

Usually ships in 3-10 days

0

17

Husqvarna 590458802

AIR FILTER ASSY MESH 25 MICRON

Note: Yellow, Mesh 25 microns

$29.99

$

In Stock, Qty 5

0

1

Husqvarna 525824401

SCREW ITXSCM WASHER M5X12 T27

$8.99

$

Usually ships in 3-10 days

0

9

Husqvarna 526818101

SCREW ITXSCM M4X15 T27 12.9 T

$3.99

$

Usually ships in 3-10 days

0

14

Husqvarna 523056801

FUEL HOSE

$5.99

$

In Stock, Qty 6

0

17

Husqvarna 590458803

AIR FILTER ASSY MESH NW

Note: Nature, Non woven

$21.99

$

Usually ships in 3-10 days

0

10

Husqvarna 525588101

SEALING

$9.99

$

In Stock, only 2 left!

0

19

Husqvarna 731231401

NUT

$2.49

$

In Stock, Qty 20+

0

7

Husqvarna 589340601

RETAINER CONTACT CLAMP

$3.99

$

Usually ships in 3-10 days

0

2

Husqvarna 526221801

SCREW

$4.99

$

In Stock, only 2 left!

0

6

Husqvarna 585195001

SUPPORT SLEEVE

$8.49

$

Usually ships in 3-10 days

0

11

Husqvarna 503936601

AIR PURGE BUBBLE

$25.99

$

In Stock, Qty 20+

0

21

Husqvarna 581143101

SCREW ITXSCFM M4X50 T20 12.9

$3.99

$

In Stock, only 2 left!

0

15

Husqvarna 589340701

CONTACT CLAMP

$3.99

$

In Stock, only 2 left!

0

16

Husqvarna 577536402

WIRING ASSY STOP

$7.49

$

In Stock, only 3 left!

0

13

Husqvarna 510017202

CHOKE CONTROL ASSY CHOKE/STOP

$15.99

$

In Stock, only 4 left!

0

18

Husqvarna 525344303

FUEL HOSE PURGE/TANKVENTILATIO

$14.99

$

In Stock, only 3 left!

0

4

Husqvarna 593784901

INLET PIPE ASSY

$33.99

$

In Stock, only 2 left!

0

17

Husqvarna 590458801

AIR FILTER ASSY MESH 64 MICRON

Note: Black, Mesh 64 microns

$33.99

$

In Stock, only 2 left!

0
