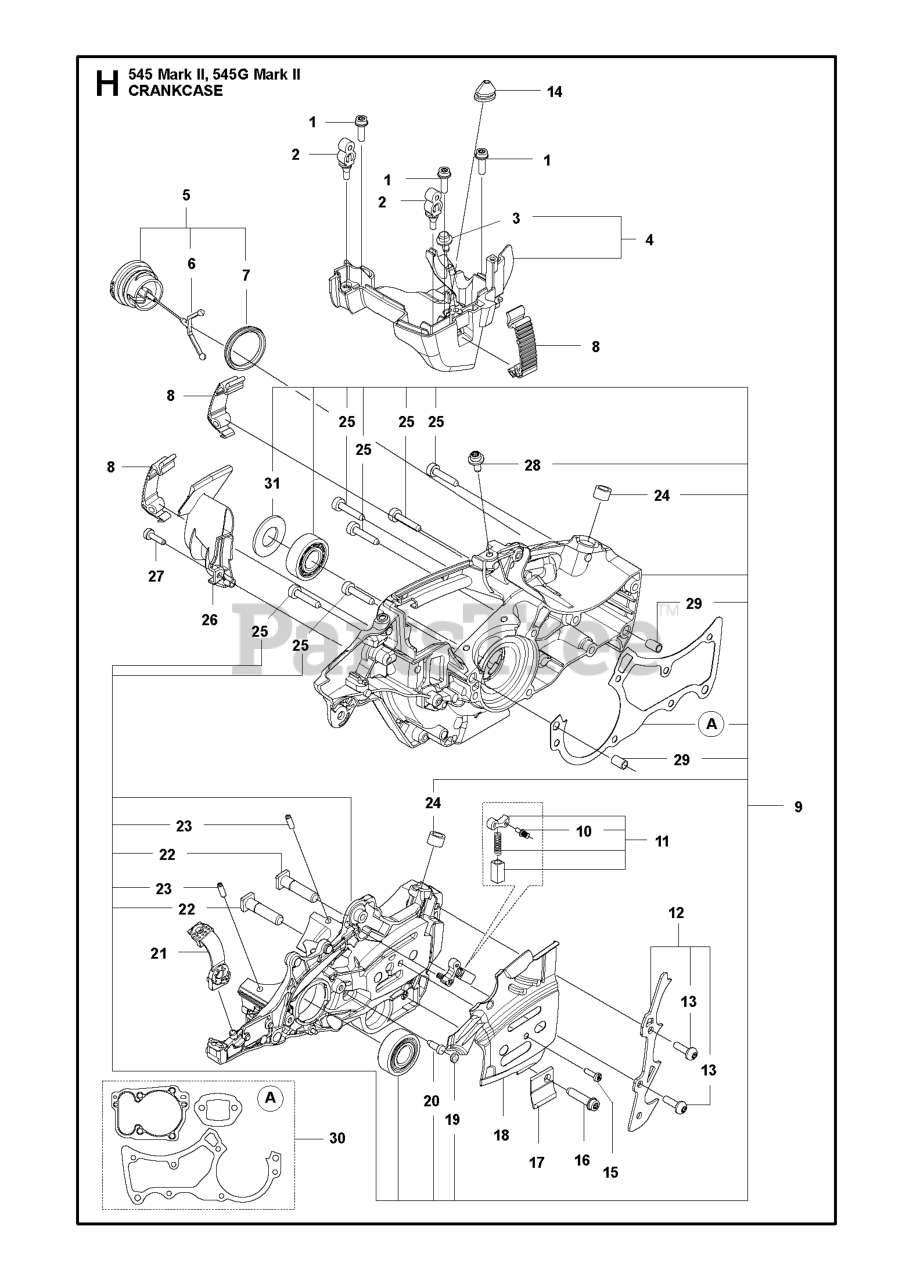

545/545G Mark II - Husqvarna Chainsaw CRANKCASE Parts Diagram

Chainsaw

CRANKCASE Parts Diagram

  • Title

2

Husqvarna 503869301

SUPPORT

$8.49

$

Usually ships in 3-10 days

0

19

Husqvarna 537403501

PLUG
(Superseded to 537403502)

$3.99

$

In Stock, only 4 left!

0

27

Husqvarna 526818101

SCREW ITXSCM M4X15 T27 12.9 T

$6.49

$

In Stock, only 3 left!

0

26

Husqvarna 582285901

AIR NOZZLE

$10.99

$

Usually ships in 3-10 days

0

22

Husqvarna 505217301

BAR BOLT

$7.99

$

Usually ships in 3-10 days

0

4

Husqvarna 582285201

CARBURETTOR AREA BASE ASSY

$22.99

$

Usually ships in 3-10 days

0

7

Husqvarna 589241101

SEALING

$8.99

$

In Stock, Qty 17

0

30

Husqvarna 595897601

GASKET KIT MARK II

$11.99

$

Usually ships in 3-10 days

0

11

Husqvarna 596351401

CATCH KIT SPARE PART

$26.99

$

Usually ships in 3-10 days

0

1

Husqvarna 575885703

SCREW

$3.49

$

Usually ships in 3-10 days

0

28

Husqvarna 525824401

SCREW ITXSCM WASHER M5X12 T27

$6.49

$

Usually ships in 3-10 days

0

3

Husqvarna 544331601

GUIDE PEN

$6.49

$

Usually ships in 3-10 days

0

17

Husqvarna 537377902

CHAIN CATCHER

$9.49

$

In Stock, Qty 20+

0

16

Husqvarna 525798103

SCREW

$6.49

$

Usually ships in 3-10 days

0

29

Husqvarna 501270802

GUIDE BUSHING
(Superseded to 593806001)

$9.99

$

In Stock, Qty 8

0

31

Husqvarna 596911301

CAPS

$5.99

$

In Stock, only 1 left!

0

15

Husqvarna 525887401

SCREW CITXPANT
(Superseded to 503212813)

$6.49

$

In Stock, only 2 left!

0

23

Husqvarna 720126952

PARALLEL PIN

$5.99

$

Usually ships in 3-10 days

0

10

Husqvarna 503751801

PIN

$7.99

$

In Stock, Qty 8

0

21

Husqvarna 505125801

DEFLECTION LIMITER

$10.99

$

Usually ships in 3-10 days

0

13

Husqvarna 575793501

SCREW ITXPANM M5X16 T27 10.9

$6.49

$

Usually ships in 3-10 days

0

8

Husqvarna 503894703

CLIP GRAY

$11.99

$

In Stock, Qty 16

0

20

Husqvarna 530026119

VALVE-CHECK (DUCKBILL)

$4.49

$

In Stock, Qty 14

0

18

Husqvarna 589721901

CHAIN GUIDE PLATE

$17.99

$

Usually ships in 3-10 days

0

24

Husqvarna 589331301

SLEEVE CERAMIC

$9.49

$

Usually ships in 3-10 days

0

5

Husqvarna 522620003

TANK CAP ASSY

$12.99

$

In Stock, Qty 10

0

12

Husqvarna 596351301

SPIKE KIT SPARE PART 50CC MARK

$11.99

$

Usually ships in 3-10 days

0

9

Husqvarna 595897702

CRANKCASES

$283.99

$

Usually ships in 3-10 days

0

14

Husqvarna 581559201

GROMMET

$7.49

$

Usually ships in 3-10 days

0

6

Husqvarna 503578901

TANK LOCK

$9.99

$

In Stock, Qty 15

0

25

Husqvarna 503215325

SCREW

$5.99

$

In Stock, Qty 9

0
