545 FR - Husqvarna Brush Cutter CARBURETOR & AIR FILTER Parts Diagram

Brush Cutter

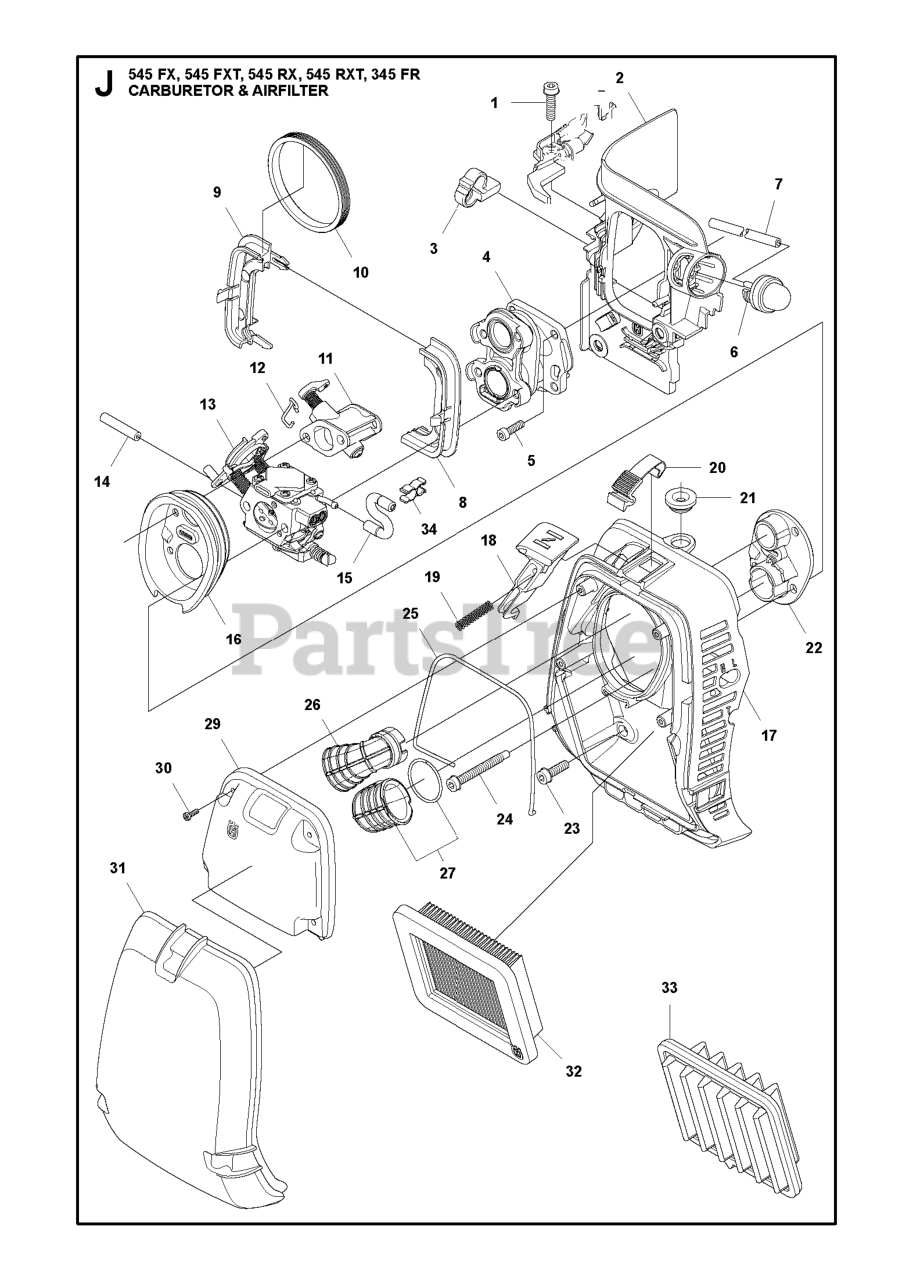

CARBURETOR & AIR FILTER Parts Diagram

  • Title

25

Husqvarna 503263204

O-RING

$8.49

$

Usually ships in 3-10 days

0

17

Husqvarna 523044801

FILTER HOLDER ASSY

$31.99

$

Usually ships in 3-10 days

0

24

Husqvarna 537316001

SCREW

$5.99

$

Usually ships in 3-10 days

0

19

Husqvarna 524853001

SPRING

$3.99

$

Usually ships in 3-10 days

0

27

Husqvarna 594028001

NEEDS DESCRIPTION

$4.99

$

Usually ships in 3-10 days

0

2

Husqvarna 525289201

INSULATION WALL

$23.99

$

Usually ships in 3-10 days

0

16

Husqvarna 574851201

SEALING

$9.99

$

Usually ships in 3-10 days

0

31

Husqvarna 510189701

FILTER COVER

$13.99

$

Usually ships in 3-10 days

0

13

Husqvarna 580803901

CARBURETOR

$131.99

$

In Stock, only 1 left!

0

29

Husqvarna 575268401

COVER LID ASSY

$15.99

$

In Stock, only 1 left!

0

12

Husqvarna 522543301

LINK

$6.99

$

Usually ships in 3-10 days

0

26

Husqvarna 586946901

INLET PIPE AIR HEAD
(Superseded to 594028101)

$7.49

$

In Stock, only 1 left!

0

3

Husqvarna 575239501

GROMMET

$5.99

$

Usually ships in 3-10 days

0

20

Husqvarna 503740102

HOLDER

$13.99

$

In Stock, Qty 5

0

34

Husqvarna 580451701

CLIP

$3.99

$

In Stock, only 1 left!

0

1

Husqvarna 503200776

SCREW

$5.49

$

In Stock, only 3 left!

0

5

Husqvarna 503202516

SCREW

$3.49

$

Usually ships in 3-10 days

0

10

Husqvarna 576223701

SEALING RING

$5.99

$

Usually ships in 3-10 days

0

32

Husqvarna 574668003

FILTER AIR FILTER PAPER

Note: Paper filter (Original) from 2014 -

$17.99

$

In Stock, only 2 left!

0

6

Husqvarna 503936601

AIR PURGE BUBBLE

$25.99

$

In Stock, Qty 20+

0

14

Husqvarna 581756143

FUEL HOSE STRAIGHT 38

$4.99

$

Usually ships in 3-10 days

0

21

Husqvarna 537016501

GROMMET

$8.49

$

In Stock, Qty 12

0

4

Husqvarna 574440301

INLET PIPE

$71.99

$

Usually ships in 3-10 days

0

30

Husqvarna 503212910

SCREW

$3.49

$

In Stock, only 2 left!

0

7

Husqvarna 537042407

HOSE

$7.49

$

Usually ships in 3-10 days

0

18

Husqvarna 522449901

CHOKE CONTROL

$8.49

$

Usually ships in 3-10 days

0

8

Husqvarna 576122701

FRAME

$6.99

$

Usually ships in 3-10 days

0

23

Husqvarna 503200774

SCREW IHSCFM

$4.99

$

In Stock, only 3 left!

0

15

Husqvarna 523056801

FUEL HOSE

$5.99

$

In Stock, Qty 6

0

9

Husqvarna 576123701

FRAME

$5.99

$

Usually ships in 3-10 days

0

22

Husqvarna 574851301

COVER PLATE
(Superseded to 577479701)

$7.49

$

Usually ships in 3-10 days

0

11

Husqvarna 574297901

HOUSING

$29.99

$

Usually ships in 3-10 days

0

33

Husqvarna 537410804

Filters

Note: Mesh 25µm, Winter Forest

$29.99

$

Usually ships in 3-10 days

0
