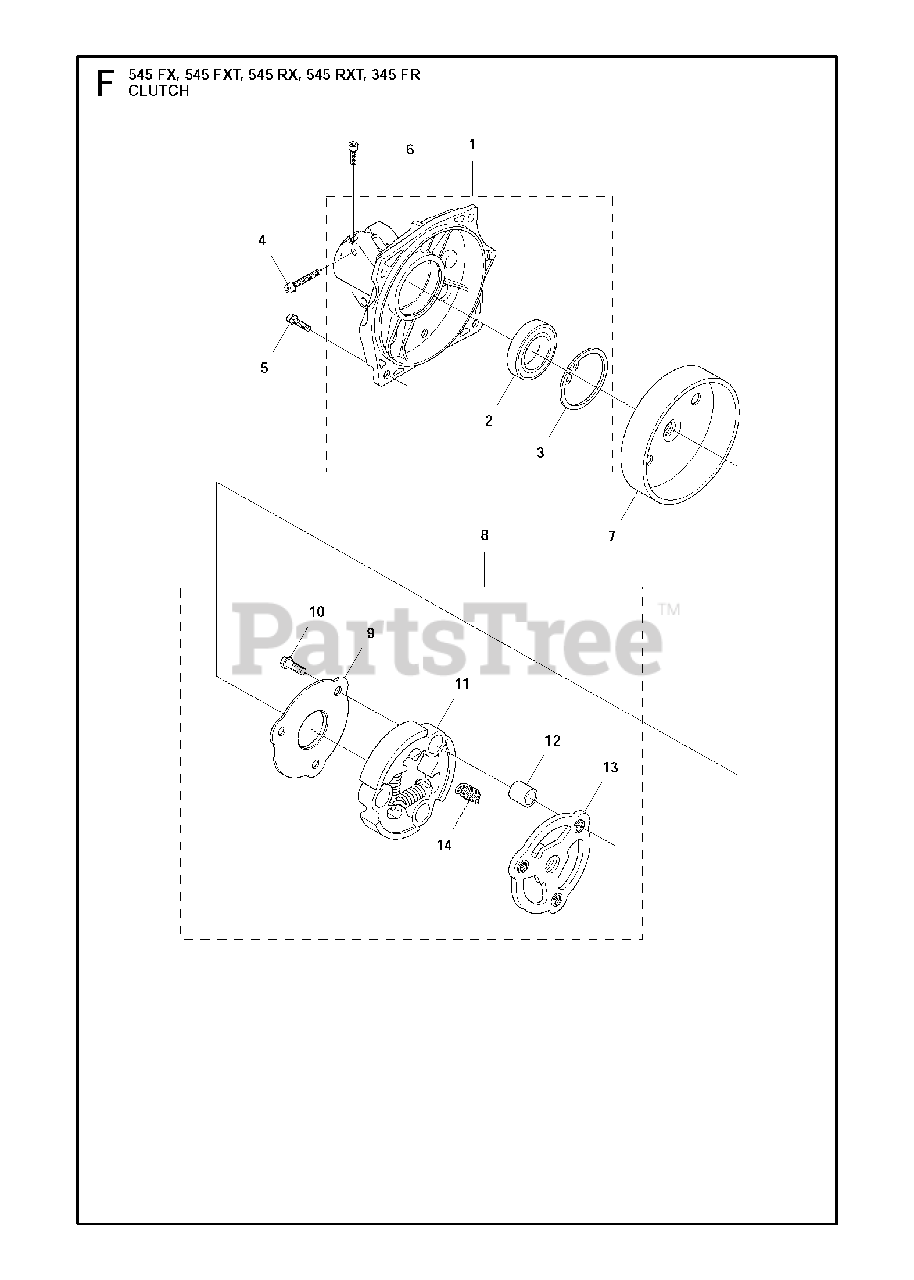

545 FXT - Husqvarna Brush Cutter CLUTCH Parts Diagram

Brush Cutter

CLUTCH Parts Diagram

  • Title

1

Husqvarna 503954103

CLUTCH COVER
(Superseded to 503954104)

$74.99

$

Usually ships in 3-10 days

0

2

Husqvarna 738220219

BALL BEARING 6202-2RS1

Note: . 1

$40.99

$

Usually ships in 3-10 days

0

3

Husqvarna 735313310

RETAINING RING SGH 35

Note: . 1

$3.49

$

Usually ships in 3-10 days

0

4

Husqvarna 503200230

SCREW

$3.49

$

In Stock, only 4 left!

0

5

Husqvarna 503200220

SCREW

$5.49

$

In Stock, Qty 12

0

6

Husqvarna 503202001

SCREW MC6LS 5X12

$3.49

$

Usually ships in 3-10 days

0

7

Husqvarna 544900701

CLUTCH DRUM ASSM.

$45.99

$

Usually ships in 3-10 days

0

8

Husqvarna 503953501

CLUTCH CPL
(Superseded to 594512301)

$56.99

$

Usually ships in 3-10 days

0

9

Husqvarna 537135301

WASHER

Note: . 8

$

$

Not available

10

Husqvarna 503201818

SCREW
(Superseded to 503201802)

Note: . 8

$4.99

$

In Stock, only 1 left!

0

11

Husqvarna 503953601

CLUTCH

Note: . 8

$10.99

$

Usually ships in 3-10 days

0

12

Husqvarna 537135401

BUSHING

Note: . 8

$9.49

$

Usually ships in 3-10 days

0

13

Husqvarna 503953701

HUB

Note: . 8

$26.99

$

Usually ships in 3-10 days

0

14

Husqvarna 505435301

CLUTCH SPRING
(Superseded to 505435302)

Note: . 8

$5.99

$

Usually ships in 3-10 days

0
