545 - Husqvarna Chainsaw CLUTCH & OIL PUMP Parts Diagram

Chainsaw

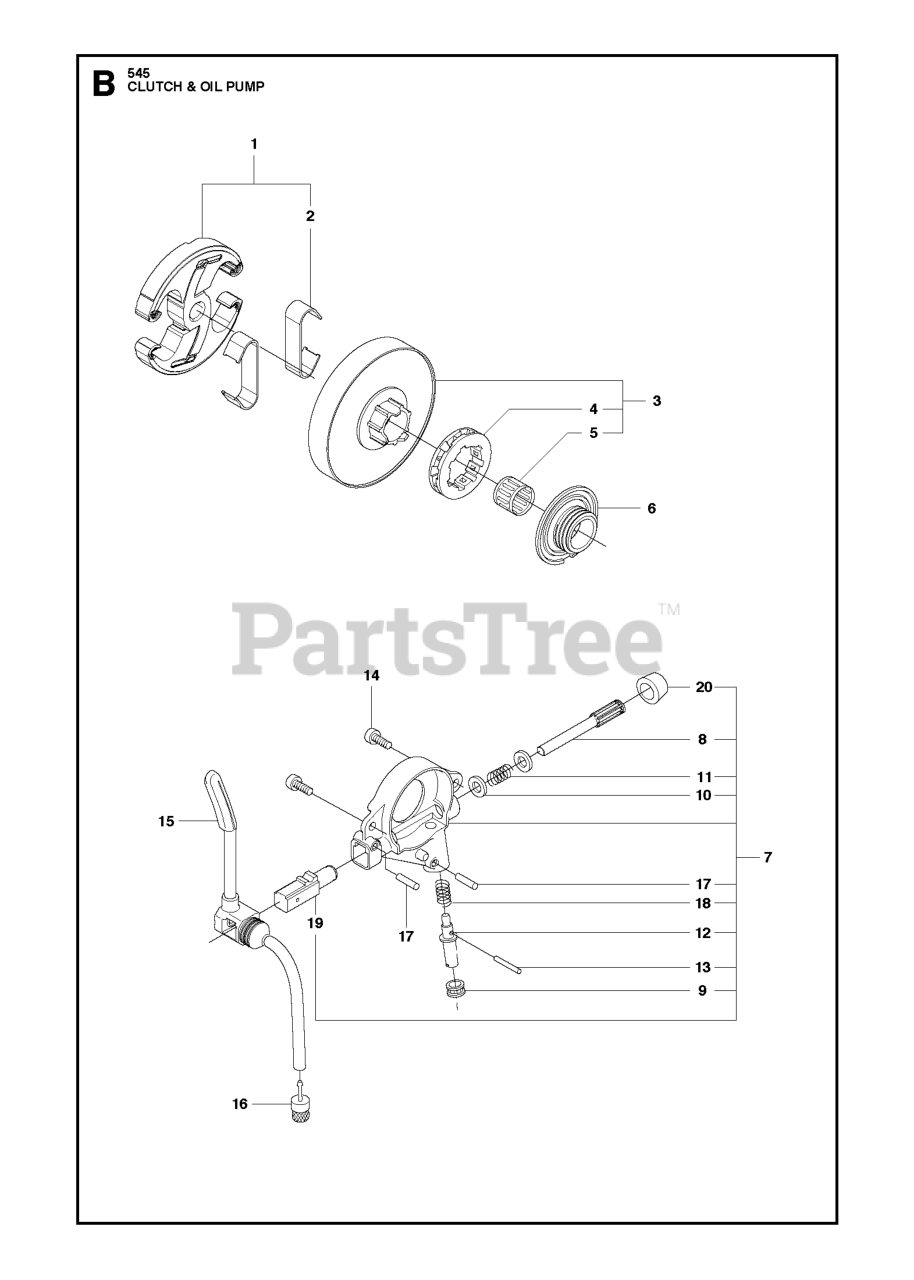

CLUTCH & OIL PUMP Parts Diagram

  • Title

5

Husqvarna 503253401

SUPPORT BUSHING

$21.99

$

In Stock, Qty 20+

0

13

Husqvarna 721116430

PIN

$4.99

$

In Stock, only 3 left!

0

18

Husqvarna 503891501

SPRING

$6.49

$

In Stock, Qty 7

0

9

Husqvarna 505200301

CASING

$

$

Not available

11

Husqvarna 503891601

SPRING

$6.49

$

In Stock, only 3 left!

0

20

Husqvarna 503624901

PLUG

$8.99

$

Usually ships in 3-10 days

0

19

Husqvarna 505200101

PUMP CYLINDER

$9.49

$

In Stock, only 2 left!

0

14

Husqvarna 526818101

SCREW ITXSCM M4X15 T27 12.9 T

$6.49

$

In Stock, only 3 left!

0

8

Husqvarna 505200201

PUMP PISTON
(Superseded to 505200204)

$22.99

$

Usually ships in 3-10 days

0

12

Husqvarna 505157001

ADJUSTING SCREW

$9.49

$

In Stock, only 1 left!

0

1

Husqvarna 577518202

Clutches

$106.99

$

Usually ships in 3-10 days

0

16

Husqvarna 504710003

OIL PLUMMET

$13.99

$

In Stock, Qty 7

0

6

Husqvarna 505200801

WORM WHEEL

$12.99

$

In Stock, Qty 5

0

3

Husqvarna 575261005

CLUTCH DRUM ASSY RIM .325"7T

Note: ".325""x7"

$60.99

$

In Stock, Qty 5

0

2

Husqvarna 537359101

SPRING

$8.99

$

In Stock, Qty 18

0

15

Husqvarna 505200401

OIL HOSE

$14.99

$

In Stock, only 1 left!

0

17

Husqvarna 720123300

PIN 3X10

$5.99

$

In Stock, Qty 6

0

4

Husqvarna 501457402

RIM SPROCKET 7T .325
(Superseded to 640200010)

Note: ".325""x7"

$8.49

$

In Stock, Qty 20+

0

10

Husqvarna 503230060

WASHER

$4.99

$

In Stock, only 1 left!

0

7

Husqvarna 505199904

OIL PUMP ASSY

$62.99

$

Usually ships in 3-10 days

0
