54610 - Toro 40cm Scarifier Dethatcher (SN: 321000001 - 321999999) (2021) Engine Assembly Parts Diagram

40cm Scarifier Dethatcher

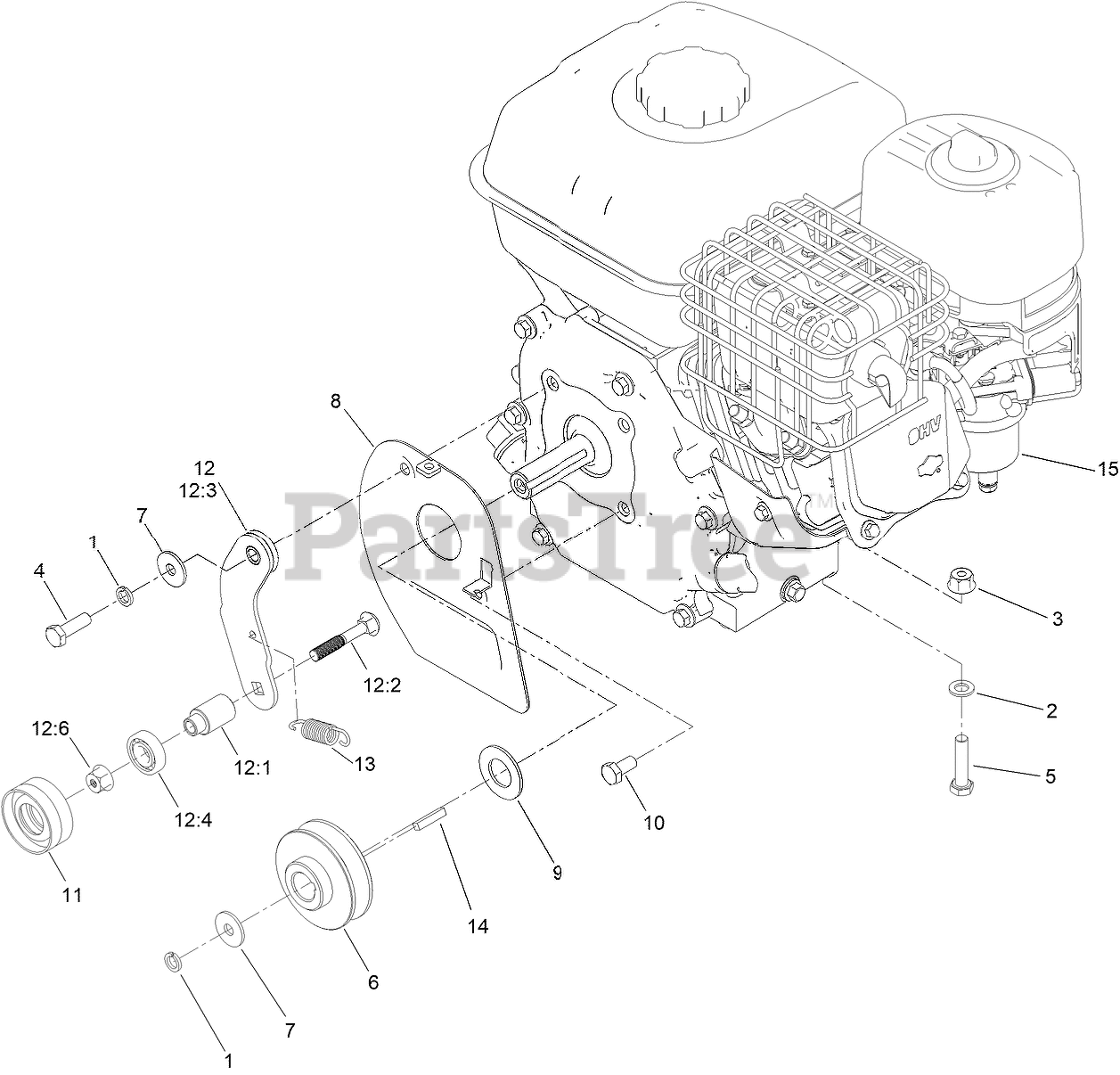

Engine Assembly Parts Diagram

  • Title

1

Toro 134-5488

WASHER- LOCK, SPRING

$0.99

$

Usually ships in 0 days

0

2

Toro 134-5498

WASHER

$0.99

$

Usually ships in 3-6 days

0

3

Toro 134-5587

NUT-FLANGE, HEX

$0.99

$

Usually ships in 0 days

0

4

Toro 03162

SCREW-HH

$

$

Not available

5

Toro 09631

BOLT

$

$

Currently unavailable

6

Toro 134-5590

PULLEY

$18.99

$

Usually ships in 3-6 days

0

7

Toro 134-5591

SPACER-SHAFT

$0.99

$

Usually ships in 3-6 days

0

8

Toro 134-5592

PLATE-PULLEY, ENGINE

$12.99

$

Usually ships in 3-6 days

0

9

Toro 134-5595

SPACER-SHAFT

$

$

Currently unavailable

10

Toro 134-5596

BOLT-HEX

$

$

Currently unavailable

11

Toro 134-5597

PULLEY

$

$

Currently unavailable

12

PULLEY ARM ASM

Note: Not serviced separately

$

$

Not available

12:1

Toro 134-5599

SLEEVE

$2.49

$

Usually ships in 3-6 days

0

12:2

Toro 134-5600

BOLT-CARRIAGE

$0.99

$

Usually ships in 3-6 days

0

12:3

Toro 134-6115

PULLEY ARM WELDED ASSY

$

$

Currently unavailable

12:4

Toro 134-5602

BEARING

$5.99

$

Usually ships in 3-6 days

0

12:6

Toro 134-5507

NUT-LOCK, PREVAILING TORQUE

$0.99

$

Usually ships in 3-6 days

0

13

Toro 134-5604

SPRING

$0.99

$

Usually ships in 3-6 days

0

14

Toro 134-5605

KEY

$

$

Currently unavailable

15

Toro 134-5606

ENGINE

$

$

Currently unavailable
