54610 - Toro 40cm Scarifier Dethatcher (SN: 321000001 - 321999999) (2021) Handle and Control Assembly Parts Diagram

40cm Scarifier Dethatcher

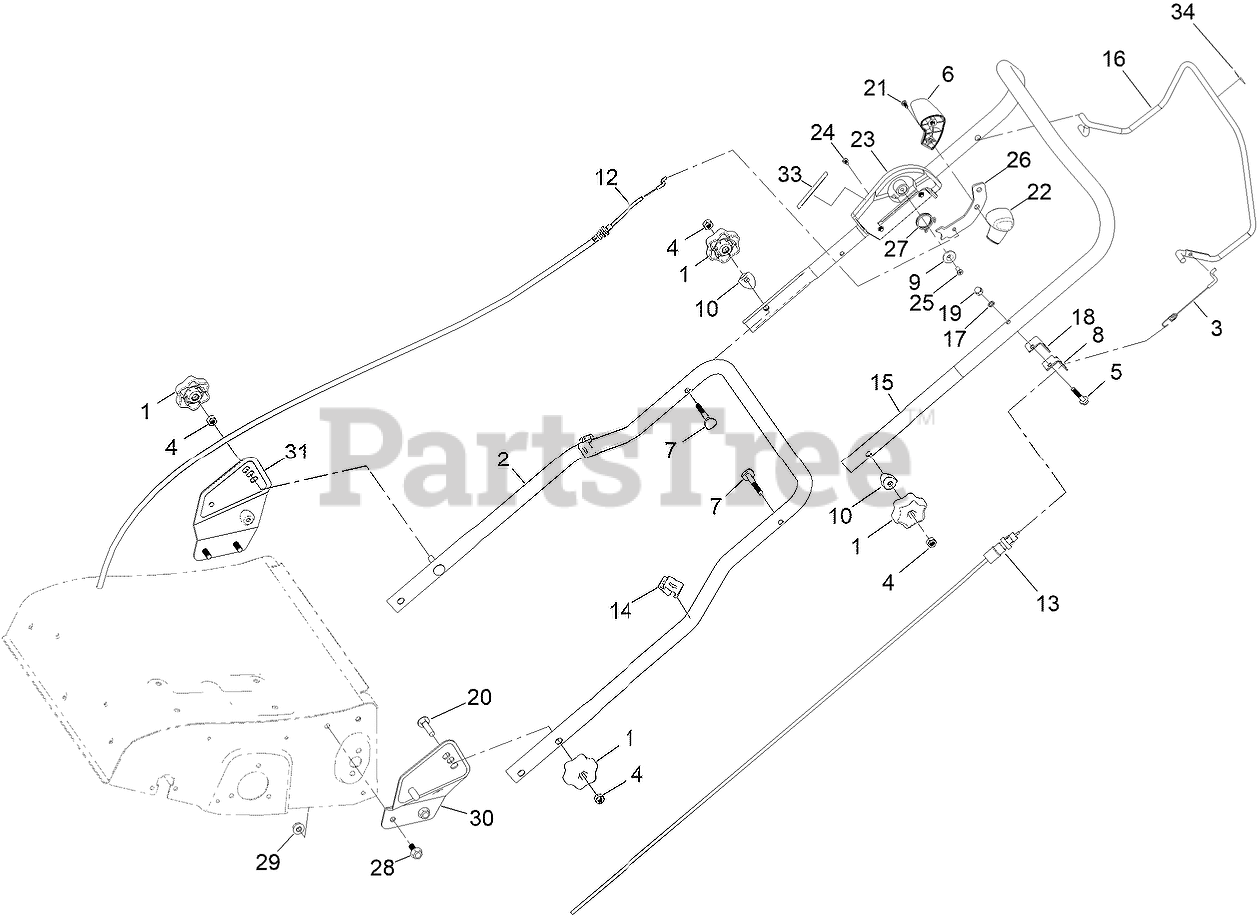

Handle and Control Assembly Parts Diagram

  • Title

1

Toro 134-5465

KNOB-HANDLE

$0.99

$

Usually ships in 3-6 days

0

2

Toro 134-5474

BAR-HANDLE, LOWER

$43.99

$

Usually ships in 3-6 days

0

3

Toro 134-5476

CABLE- LEVER, ENGINE BRAKE

$3.99

$

Usually ships in 3-6 days

0

4

Toro 09443

See Supercession: ZNH1H000U
(Superseded to ZNH1H000U)

$

$

Not available

5

Toro 134-3742

SCREW-HHF

$

$

Currently unavailable

6

Toro 134-5502

LEVER HANDLE SECTION

$2.49

$

Usually ships in 3-6 days

0

7

Toro 134-5503

BOLT-FLAT HEAD

$1.99

$

Usually ships in 3-6 days

0

8

Toro 134-5505

BRACKET-L

$1.49

$

Usually ships in 3-6 days

0

9

Toro 134-5506

WASHER-LEVER

$0.99

$

Usually ships in 3-6 days

0

10

Toro 134-5508

WASHER-CURVE

$0.99

$

Usually ships in 3-6 days

0

12

Toro 134-5531

CABLE-LEVER, TINE RAISE

$

$

Not available

13

Toro 134-5543

CABLE-LEVER, ENGINE BRAKE

$

$

Currently unavailable

14

Toro 134-5549

CLAMP-CABLE

$0.99

$

Usually ships in 3-6 days

0

15

Toro 134-5581

BAR-HANDLE, UPPER

$31.99

$

Usually ships in 3-6 days

0

16

Toro 134-5575

LEVER-BRAKE, ENGINE

$11.99

$

Usually ships in 3-6 days

0

17

Toro 134-5550

WASHER-LOCK, SPRING

$0.99

$

Usually ships in 3-6 days

0

18

Toro 134-5578

BRACKET-L, BRAKE LEVER CABLE

$

$

Currently unavailable

19

Toro 134-5610

NUT-CAP HEAD

$0.99

$

Usually ships in 3-6 days

0

20

Toro 134-5572

BOLT-SQUARE CUP HEAD

$

$

Currently unavailable

21

Toro 134-5579

SCREW-PAN HEAD

$0.99

$

Usually ships in 3-6 days

0

22

Toro 134-5615

HANDLE-PLASTIC, LEVER RAISE TINE

$1.49

$

Usually ships in 3-6 days

0

23

TINE RAISE LEVER BRACKET ASSY

Note: Not serviced separately

$

$

Not available

24

Toro 134-5504

SCREW-PAN HEAD

$0.99

$

Usually ships in 3-6 days

0

25

Toro 134-5552

SCREW-HEAD, COUNTERSUNK

$0.99

$

Usually ships in 3-6 days

0

26

Toro 134-5621

PLATE-ARM, LEVER

$9.99

$

Usually ships in 3-6 days

0

27

Toro 134-5619

SPRING

$0.99

$

Usually ships in 3-6 days

0

28

Toro 134-5460

BOLT-FLANGE, HEX

$0.99

$

Usually ships in 3-6 days

0

29

Toro 134-5625

NUT-FLANGE, HEX

$0.99

$

Usually ships in 3-6 days

0

30

Toro 134-6102

LOWER HANDLE BRACKET PLATE LHS

$14.99

$

Usually ships in 3-6 days

0

31

Toro 134-6103

LOWER HANDLE BRACKET PLATE RHS

$14.99

$

Usually ships in 3-6 days

0

33

Toro 134-5698

DECAL -TRANSPORT LEVER

$0.99

$

Usually ships in 3-6 days

0

34

Toro 134-6097

DECAL - STOP

$1.99

$

Usually ships in 3-6 days

0
