54610 - Toro 40cm Scarifier Dethatcher (SN: 321000001 - 321999999) (2021) Traction and Suspension Assembly Parts Diagram

40cm Scarifier Dethatcher

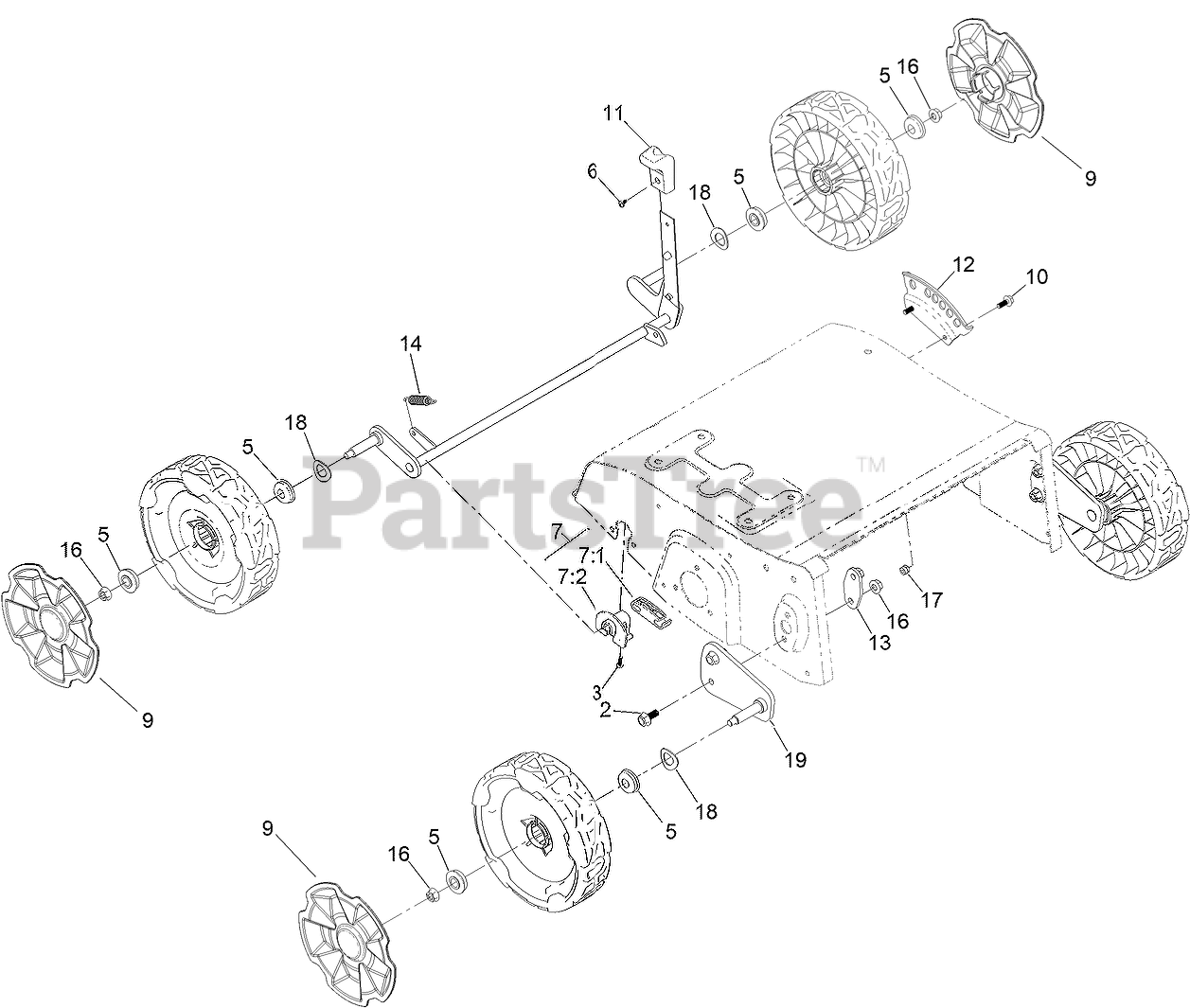

Traction and Suspension Assembly Parts Diagram

  • Title

2

Toro 134-5460

BOLT-FLANGE, HEX

$0.99

$

Usually ships in 3-6 days

0

3

Toro 134-5467

SCREW-CROSS RECESSED PAN HEAD

$0.99

$

Usually ships in 3-6 days

0

5

Toro 134-5499

BEARING-STEEL

$2.49

$

Usually ships in 3-6 days

0

6

Toro 134-5504

SCREW-PAN HEAD

$0.99

$

Usually ships in 3-6 days

0

7

FRONT AXLE SEAT ASSY

Note: Not serviced separately

$

$

Not available

7:1

Toro 134-5510

CLIP-AXLE

$0.99

$

Usually ships in 3-6 days

0

7:2

Toro 134-5511

CLIP-AXLE

$0.99

$

Usually ships in 3-6 days

0

9

Toro 134-5352

HUB CAP

$3.99

$

Usually ships in 3-6 days

0

10

Toro 134-3739

SCREW-HHF

$

$

Currently unavailable

11

Toro 134-5570

HANDLE-LEVER, HOC

$2.49

$

Usually ships in 3-6 days

0

12

Toro 134-5616

PLATE-ADJUSTMENT, HOC

$5.49

$

Usually ships in 3-6 days

0

13

Toro 134-5547

PLATE-AXLE, REAR

$2.99

$

Usually ships in 3-6 days

0

14

Toro 134-5580

SPRING

$1.49

$

Usually ships in 3-6 days

0

16

Toro 134-5625

NUT-FLANGE, HEX

$0.99

$

Usually ships in 3-6 days

0

17

Toro 09438

NUT-NYLOC

$

$

Not available

18

Toro 134-6112

WAVE WASHER

$0.99

$

Usually ships in 3-6 days

0

19

Toro 134-6104

PLATE-AXLE, REAR

$14.99

$

Usually ships in 3-6 days

0
