547/42 (13B877SS345) - Yard Machines 42" Lawn Tractor, 547cc (2024) Hood & Grille Parts Diagram

42" Lawn Tractor, 547cc

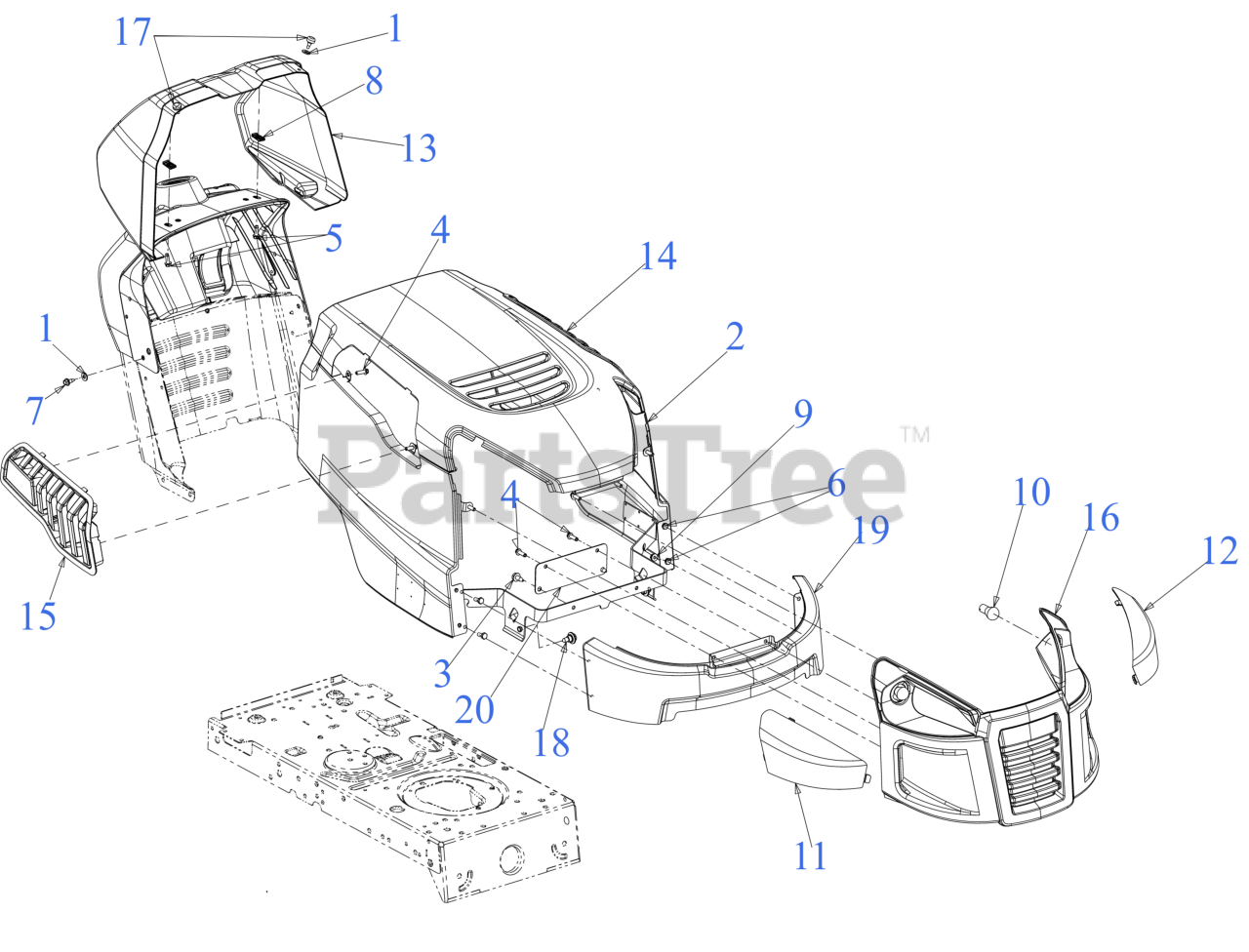

Hood & Grille Parts Diagram

  • Title

1

MTD 1751

FLAT WASHER 1/4 SAE ZINC

$0.99

$

Usually ships in 3-6 days

0

2

MTD 683-04619A

HOOD ASSEMBLY

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

683-04619A-0480

MTD 683-04619A-0480

HOOD ASM-LT5 - BRILLIANT GREEN (0480)

$249.99

$

Usually ships in 3-6 days

0

683-04619A-0638

MTD 683-04619A-0638

HOOD ASSEMBLY - MTD/TROY-BILT RED (0638)

$308.99

$

Usually ships in 3-6 days

0

683-04619A-0662

MTD 683-04619A-0662

HOOD ASM-LT5 - OYSTER GRAY (0662)

$268.99

$

Usually ships in 3-6 days

0

683-04619A-0691

MTD 683-04619A-0691

HOOD ASSEMBLY - BLACK JACK (0691)

$308.99

$

Usually ships in 3-6 days

0

683-04619A-4043

MTD 683-04619A-4043

HOOD ASSEMBLY - CRAFTSMAN METALLIC GRAY (4043)

$308.99

$

Usually ships in 3-6 days

0

683-04619A-4044

MTD 683-04619A-4044

HOOD ASSEMBLY - CRAFTSMAN RED (4044)

$308.99

$

Usually ships in 3-6 days

0

683-04619A-4062

MTD 683-04619A-4062

HOOD ASSEMBLY (COOL GRAY) - COOL GRAY (4062)

$249.99

$

Usually ships in 3-6 days

0

$249.99

$

Usually ships in 3-6 days

0

3

MTD 710-04484

SCREW 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

4

MTD 710-05108

SCREW 1/4 x .750

$3.99

$

In Stock, Qty 7

0

5

MTD 710-0642

SCREW 1/4-20 x .750

$4.99

$

In Stock, Qty 20+

0

6

MTD 710-0751

SCREW 1/4-20 x .620 GR5

$4.49

$

In Stock, Qty 20+

0

7

MTD 710-1652

SCREW 1/4-20X.625

$4.49

$

In Stock, Qty 20+

0

8

MTD 712-0292

SPEED NUT

$10.99

$

In Stock, only 3 left!

0

9

MTD 712-04064

FLANGE LOCK NUT

$4.49

$

In Stock, Qty 20+

0

10

MTD 925-0963

MINIATURE LAMP-12V #1156

$7.99

$

In Stock, Qty 20+

0

11

MTD 731-07458

CRAFTSMAN LENS (RH)

$

$

Not available

12

MTD 731-07459

CRAFTSMAN LENS (LH)

$

$

Not available

13

MTD 731-07460A

DASH COLLER

$91.99

$

Usually ships in 3-6 days

0

14

MTD 731-07711A

HOOD SCOOP (LH)

$16.99

$

Usually ships in 3-6 days

0

15

MTD 731-07712A

HOOD SCOOP (RH)

$16.99

$

Usually ships in 3-6 days

0

16

MTD 931-10940

GRILLE(S STYLE) W/O LABEL

$51.99

$

Usually ships in 3-6 days

0

17

MTD 735-0271A

BUMPER, .62 DIA x .3

$9.49

$

In Stock, Qty 14

0

18

MTD 738-04091A

SHOULDER SCREW .43X.29X5/16-18 TT

$4.49

$

In Stock, Qty 20+

0

19

MTD 783-06598

LOWER GRILL

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

783-06598-0638

MTD 783-06598-0638

GRILL - LOWER - MTD/TROY-BILT RED (0638)

$57.99

$

Usually ships in 3-6 days

0

783-06598-0662

MTD 783-06598-0662

GRILL - LOWER - OYSTER GRAY (0662)

$53.99

$

Usually ships in 3-6 days

0

783-06598-0691

MTD 783-06598-0691

GRILL - LOWER - BLACK JACK (0691)

$61.99

$

Usually ships in 3-6 days

0

783-06598-0709

MTD 783-06598-0709

GRILL - LOWER - MASTERCRAFT GREEN (0709)

$50.99

$

Usually ships in 3-6 days

0

783-06598-4043

MTD 783-06598-4043

GRILL - LOWER - CRAFTSMAN METALLIC GRAY (4043)

$57.99

$

Usually ships in 3-6 days

0

783-06598-4044

MTD 783-06598-4044

GRILL - LOWER - CRAFTSMAN RED (4044)

$57.99

$

Usually ships in 3-6 days

0

783-06598-4062

MTD 783-06598-4062

GRILL - LOWER - COOL GRAY (4062)

$50.99

$

Usually ships in 3-6 days

0

783-06598-0480

MTD 783-06598-0480

GRILL - LOWER - BRILLIANT GREEN (0480)

$

$

Not available

$50.99

$

Usually ships in 3-6 days

0

20

MTD 783-06610-0637

LOWER GRILLE BRACKET

$31.99

$

Usually ships in 3-6 days

0
