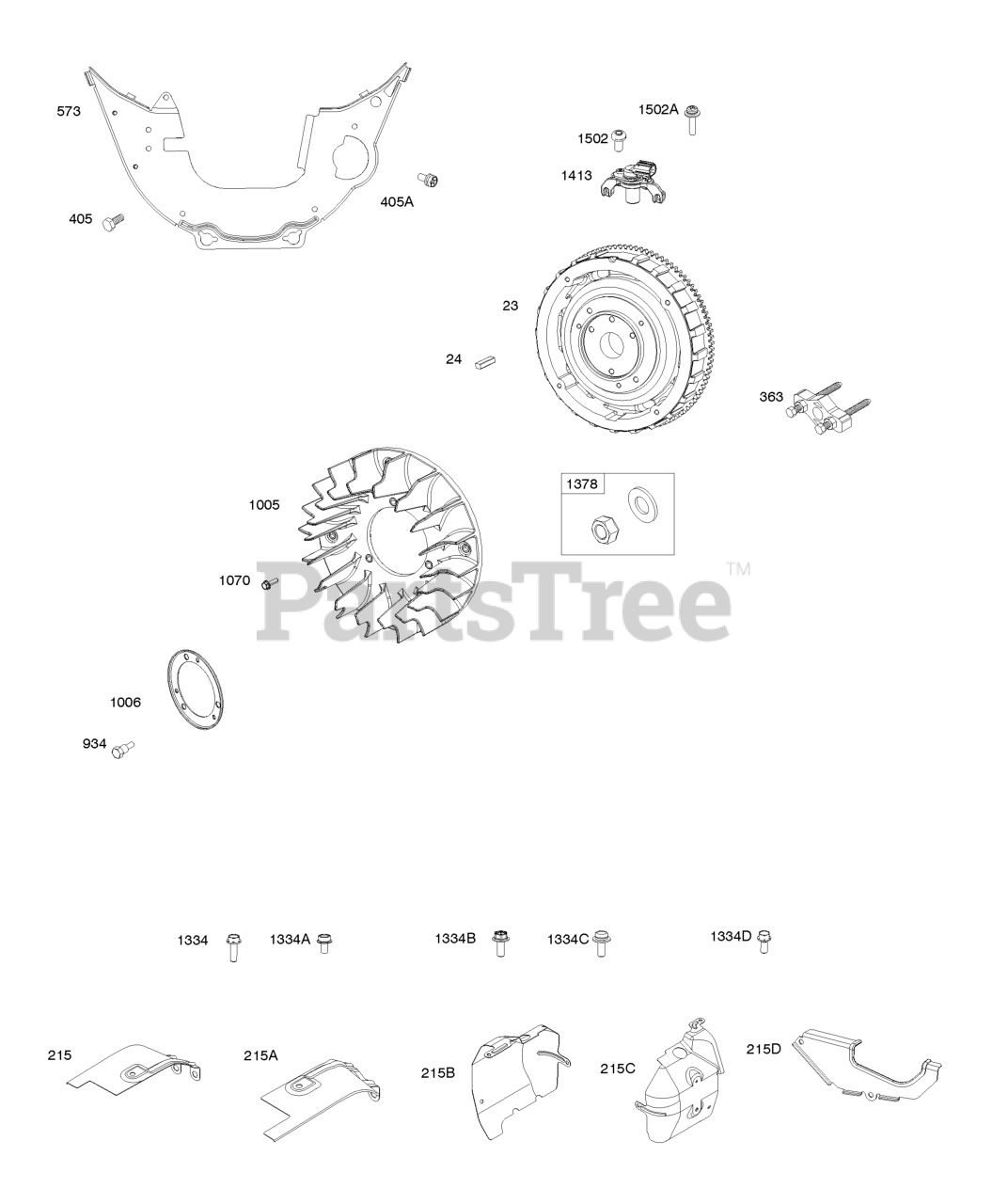

54E177-0001-J1 - Briggs & Stratton Horizontal Engine Air Guides, Flywheel, Flywheel Fan Parts Diagram

Horizontal Engine

Air Guides, Flywheel, Flywheel Fan Parts Diagram

  • Title

23

Briggs & Stratton 846836

Flywheel

$467.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 796335

KEY, Flywheel

Note: (Steel)

$5.99

$

In Stock, Qty 6

0

215

Briggs & Stratton 846455

GUIDE, Air

Note: (Cylinder #1)

$41.99

$

Usually ships in 2-12 days

0

215A

Briggs & Stratton 846456

GUIDE, Air

Note: (Cylinder #2)

$38.99

$

Usually ships in 2-12 days

0

215D

Briggs & Stratton 846458

GUIDE, Air

Note: (Valley)

$43.99

$

Usually ships in 2-12 days

0

215B

Briggs & Stratton 809897

GUIDE, Air

Note: (Cylinder #2)

$

$

Not available

215C

Briggs & Stratton 809738

GUIDE, Air

Note: (Cylinder #1)

$

$

Not available

363

Briggs & Stratton 19203

PULLER, Flywheel

$28.99

$

In Stock, only 2 left!

0

405

Briggs & Stratton 841233

SCREW

Note: (Back Plate) (M6x10mm)

$3.99

$

In Stock, Qty 14

0

405A

Briggs & Stratton 841735

SCREW

Note: (Back Plate) (M6x14mm)

$4.49

$

Usually ships in 2-12 days

0

573

Briggs & Stratton 846840

PLATE, Back

$153.99

$

Usually ships in 2-12 days

0

934

Briggs & Stratton 807421

SCREW

Note: (Fan Retainer) (M6x25mm)

$3.99

$

Usually ships in 2-12 days

0

1005

Briggs & Stratton 846995

Fan-Flywheel

$60.99

$

Usually ships in 2-12 days

0

1006

Briggs & Stratton 847198

Retainer-Fan

$10.99

$

Usually ships in 2-12 days

0

1070

Briggs & Stratton 807435

SCREW

Note: (Flywheel Fan) (M6x20mm)

$3.99

$

Usually ships in 2-12 days

0

1334

Briggs & Stratton 807435

SCREW

Note: (Air Guide) (M6x20mm)

$3.99

$

Usually ships in 2-12 days

0

1334A

Briggs & Stratton 841233

SCREW

Note: (Air Guide) (M6x10mm)

$3.99

$

In Stock, Qty 14

0

1334B

Briggs & Stratton 807084

SCREW

Note: (Air Guide) (M6x14mm)

$3.99

$

In Stock, only 2 left!

0

1334C

Briggs & Stratton 690677

SCREW

Note: (Air Guide) (M4x12mm)

$4.49

$

In Stock, only 2 left!

0

1334D

Briggs & Stratton 692062

Screw

Note: (Air Guide) (M8x18mm)

$3.99

$

In Stock, only 4 left!

0

1378

Briggs & Stratton 844795

Washer/Nut Set

Note: (Flywheel)

$16.99

$

Usually ships in 2-12 days

0

1413

Briggs & Stratton 846457

SENSOR, Speed
(Superseded to 84006668)

$64.99

$

In Stock, only 2 left!

0

1502

Briggs & Stratton 846459

SCREW

Note: (Speed Sensor) (M5x10mm)

$3.99

$

Usually ships in 2-12 days

0

1502A

Briggs & Stratton 846868

SCREW

Note: (Speed Sensor) (M4x18mm)

$4.49

$

Usually ships in 2-12 days

0
