54E177-0001-J1 - Briggs & Stratton Horizontal Engine Fuel Pump, Fuel Module, Fuel Lines Parts Diagram

Horizontal Engine

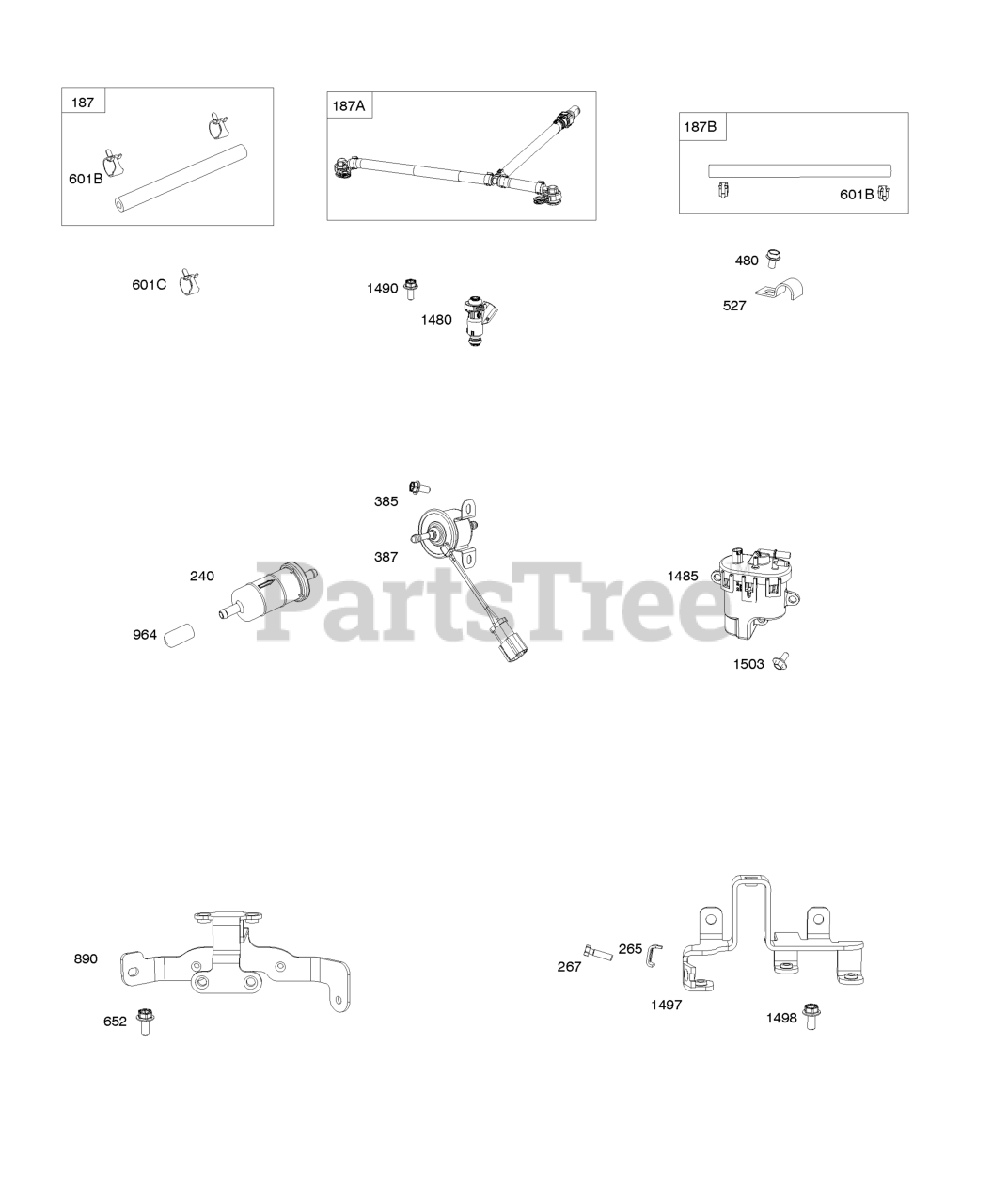

Fuel Pump, Fuel Module, Fuel Lines Parts Diagram

  • Title

187

Briggs & Stratton 791766

LINE, Fuel

Note: (15 Inches Long)(Cut to Required Length)

$8.49

$

In Stock, Qty 14

0

187A

Briggs & Stratton 846475

LINE, Fuel

$189.99

$

Usually ships in 2-12 days

0

187B

Briggs & Stratton 791745

KIT-FUEL, Hose (Cut To Fit)

Note: (23 Inches Long)(Cut To Required Length)

$11.99

$

In Stock, Qty 5

0

240

Briggs & Stratton 845125

FILTER, Fuel

$7.99

$

In Stock, Qty 20+

0

265

Briggs & Stratton 691024

CLAMP, Casing

$3.99

$

In Stock, Qty 10

0

267

Briggs & Stratton 841552

SCREW

Note: (Casing Clamp) (M5x20mm)

$3.99

$

In Stock, only 1 left!

0

385

Briggs & Stratton 841233

SCREW

Note: (Fuel Pump) (M6x10mm)

$3.99

$

In Stock, Qty 14

0

387

Briggs & Stratton 846824

Pump-Fuel

$160.99

$

In Stock, only 3 left!

0

480

Briggs & Stratton 841233

SCREW

Note: (Tube Clamp) (M6x10mm)

$3.99

$

In Stock, Qty 14

0

527

Briggs & Stratton 690423

CLAMP, Tube

$5.49

$

Usually ships in 2-12 days

0

601B

Briggs & Stratton 791850

CLAMP, Hose

Note: (Green)

$3.49

$

In Stock, Qty 11

0

601C

Briggs & Stratton 691038

CLAMP, Hose

Note: (Black)

$3.99

$

In Stock, Qty 20+

0

652

Briggs & Stratton 807084

SCREW

Note: (Support Bracket) (M6x14mm)

$3.99

$

In Stock, only 2 left!

0

890

Briggs & Stratton 846506

BRACKET, Support

$106.99

$

Usually ships in 2-12 days

0

964

Briggs & Stratton 590799

CAP, Connector

$10.99

$

Usually ships in 2-12 days

0

1480

Briggs & Stratton 593852

INJECTOR, Fuel

$87.99

$

In Stock, only 2 left!

0

1485

Briggs & Stratton 593890

MODULE, Fuel

$452.99

$

In Stock, only 2 left!

0

1490

Briggs & Stratton 807084

SCREW

Note: (Fuel Injector) (M6x14mm)

$3.99

$

In Stock, only 2 left!

0

1497

Briggs & Stratton 846505

BRACKET, Fuel Module

$111.99

$

Usually ships in 2-12 days

0

1498

Briggs & Stratton 807084

SCREW

Note: (Fuel Module Bracket)

$3.99

$

In Stock, only 2 left!

0

1503

Briggs & Stratton 594618

SCREW

Note: (Fuel Module) (1/4-20x.5)

$3.99

$

In Stock, Qty 9

0
