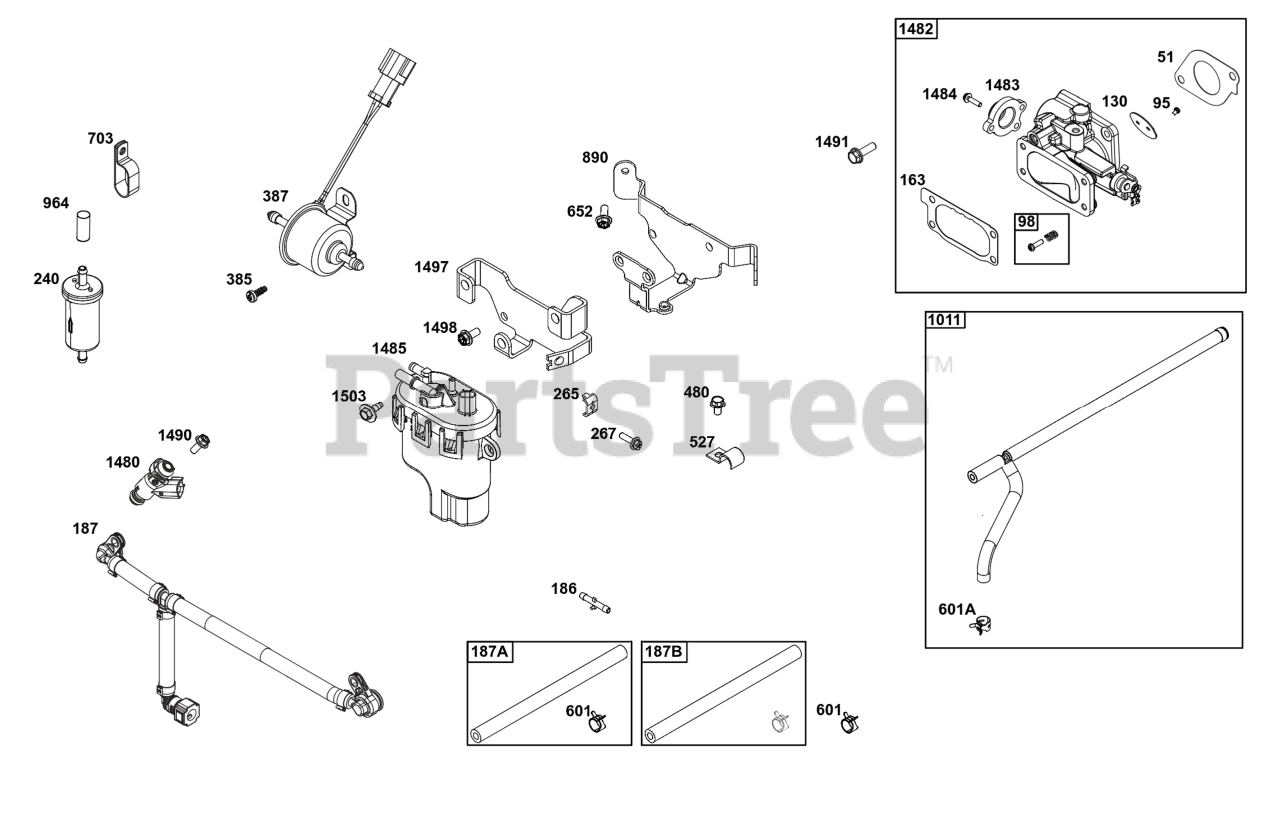

54E177-0003-J1 - Briggs & Stratton Horizontal Engine Throttle Body and Fuel Supply Group Parts Diagram

Horizontal Engine

Throttle Body and Fuel Supply Group Parts Diagram

  • Title

51

GASKET, Intake

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

95

Briggs & Stratton 593897

SCREW

Note: (Throttle Valve)

$6.99

$

Usually ships in 2-12 days

0

98

Briggs & Stratton 797156

KIT, Idle Speed

$14.99

$

Usually ships in 2-12 days

0

130

Briggs & Stratton 846808

VALVE, Throttle

$8.49

$

Usually ships in 2-12 days

0

163

GASKET, Air Cleaner

Note: (Part information located in Air Cleaner Group.)

$

$

Not available

186

Briggs & Stratton 845121

CONNECTOR, Hose

$6.99

$

Usually ships in 2-12 days

0

187

Briggs & Stratton 846475

LINE, Fuel

$189.99

$

Usually ships in 2-12 days

0

187A

Briggs & Stratton 791766

LINE, Fuel

$8.49

$

In Stock, Qty 11

0

187B

Briggs & Stratton 791745

LINE, Fuel

$11.99

$

In Stock, Qty 5

0

240

Briggs & Stratton 845125

FILTER, Fuel

$7.99

$

In Stock, Qty 20+

0

265

CLAMP, Casing

Note: (Part information located in Controls Group.)

$

$

Not available

267

SCREW

Note: (Part information located in Controls Group.)

$

$

Not available

385

Briggs & Stratton 846250

SCREW
(Superseded to 84006665)

Note: (Fuel Pump)

$3.99

$

Usually ships in 2-12 days

0

387

Briggs & Stratton 846824

PUMP, Fuel

$160.99

$

In Stock, only 3 left!

0

480

Briggs & Stratton 841233

SCREW

Note: (Tube Clamp)

$3.99

$

In Stock, Qty 14

0

527

Briggs & Stratton 690423

CLAMP, Tube

$5.49

$

Usually ships in 2-12 days

0

601

Briggs & Stratton 691038

CLAMP, Hose

$3.99

$

In Stock, Qty 20+

0

601A

Briggs & Stratton 846483

CLAMP, Hose

$19.99

$

Usually ships in 2-12 days

0

652

Briggs & Stratton 807084

SCREW

Note: (Support Bracket)

$3.99

$

In Stock, only 1 left!

0

703

Briggs & Stratton 594364

CLIP

$7.99

$

Usually ships in 2-12 days

0

890

Briggs & Stratton 846506

BRACKET, Support

$106.99

$

Usually ships in 2-12 days

0

964

Briggs & Stratton 590799

CAP, Connector

$10.99

$

Usually ships in 2-12 days

0

1011

Briggs & Stratton 847085

TUBE, Vent

$72.99

$

Usually ships in 2-12 days

0

1480

Briggs & Stratton 593852

INJECTOR, Fuel

$87.99

$

In Stock, only 2 left!

0

1482

Briggs & Stratton 846807

BODY, Throttle

$467.99

$

Usually ships in 2-12 days

0

1483

Briggs & Stratton 593895

COVER, Dust

$9.99

$

Usually ships in 2-12 days

0

1484

Briggs & Stratton 847169

SCREW

Note: (Dust Cover)

$3.99

$

Usually ships in 2-12 days

0

1485

Briggs & Stratton 593890

MODULE, Fuel

$452.99

$

In Stock, only 2 left!

0

1490

Briggs & Stratton 807084

SCREW

Note: (Fuel Injector)

$3.99

$

In Stock, only 1 left!

0

1491

Briggs & Stratton 807435

SCREW

Note: (Throttle Body)

$3.99

$

Usually ships in 2-12 days

0

1497

Briggs & Stratton 846505

BRACKET, Fuel Module

$111.99

$

Usually ships in 2-12 days

0

1498

Briggs & Stratton 807084

SCREW

Note: (Fuel Module Bracket)

$3.99

$

In Stock, only 1 left!

0

1503

Briggs & Stratton 594618

SCREW

Note: (Fuel Module)

$3.99

$

In Stock, Qty 9

0
