54E177-0008-J1 - Briggs & Stratton Horizontal Engine Fuel Supply Group Parts Diagram

Horizontal Engine

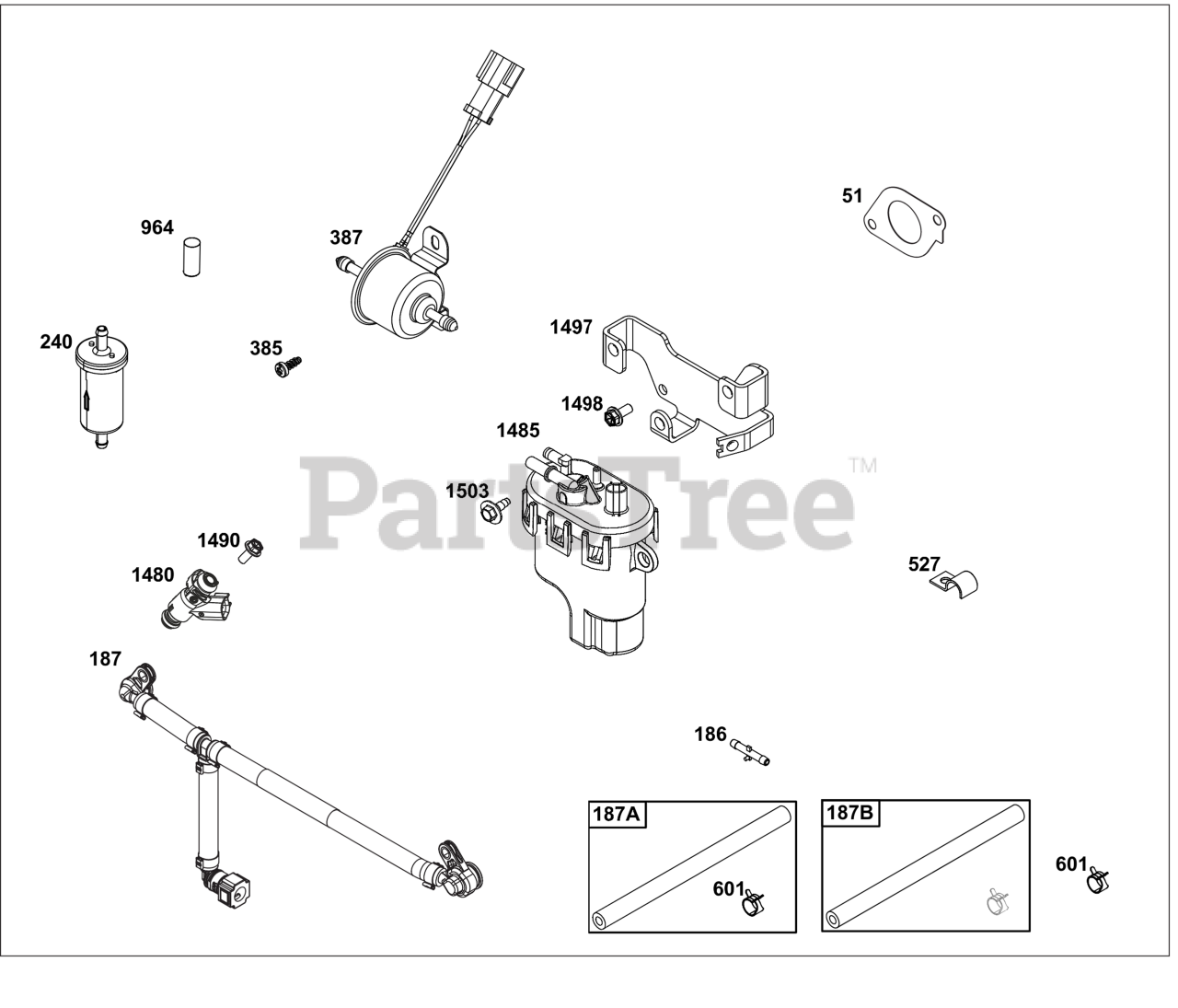

Fuel Supply Group Parts Diagram

  • Title

51

GASKET, Intake

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

186

Briggs & Stratton 845121

CONNECTOR, Hose

$6.99

$

Usually ships in 2-12 days

0

187

Briggs & Stratton 846475

LINE, Fuel

$189.99

$

Usually ships in 2-12 days

0

187A

Briggs & Stratton 791766

LINE, Fuel

$8.49

$

In Stock, Qty 10

0

187B

Briggs & Stratton 791745

LINE-FUEL

$11.99

$

In Stock, only 3 left!

0

240

Briggs & Stratton 845125

FILTER, Fuel

$7.99

$

In Stock, Qty 20+

0

385

Briggs & Stratton 846250

SCREW
(Superseded to 84006665)

Note: (Fuel Pump)

$3.99

$

Usually ships in 2-12 days

0

387

Briggs & Stratton 846824

PUMP, Fuel

$160.99

$

In Stock, only 3 left!

0

527

Briggs & Stratton 807116

CLAMP, Cable

$5.49

$

In Stock, only 1 left!

0

601

Briggs & Stratton 691038

CLAMP, Hose

$3.99

$

In Stock, Qty 20+

0

964

Briggs & Stratton 590799

CAP, Connector

$10.99

$

Usually ships in 2-12 days

0

1480

Briggs & Stratton 593852

INJECTOR, Fuel

$87.99

$

In Stock, only 2 left!

0

1485

Briggs & Stratton 593890

MODULE, Fuel

$452.99

$

In Stock, only 2 left!

0

1490

Briggs & Stratton 807084

SCREW

Note: (Fuel Injector)

$3.99

$

In Stock, only 3 left!

0

1497

Briggs & Stratton 846505

BRACKET, Fuel Module

$111.99

$

Usually ships in 2-12 days

0

1498

Briggs & Stratton 807084

SCREW

Note: (Fuel Module Bracket)

$3.99

$

In Stock, only 3 left!

0

1503

Briggs & Stratton 594618

SCREW

Note: (Fuel Module)

$3.99

$

In Stock, Qty 9

0
