54E177-0111-J1 - Briggs & Stratton Horizontal Engine Throttle Body and Fuel Supply Group Parts Diagram

Horizontal Engine

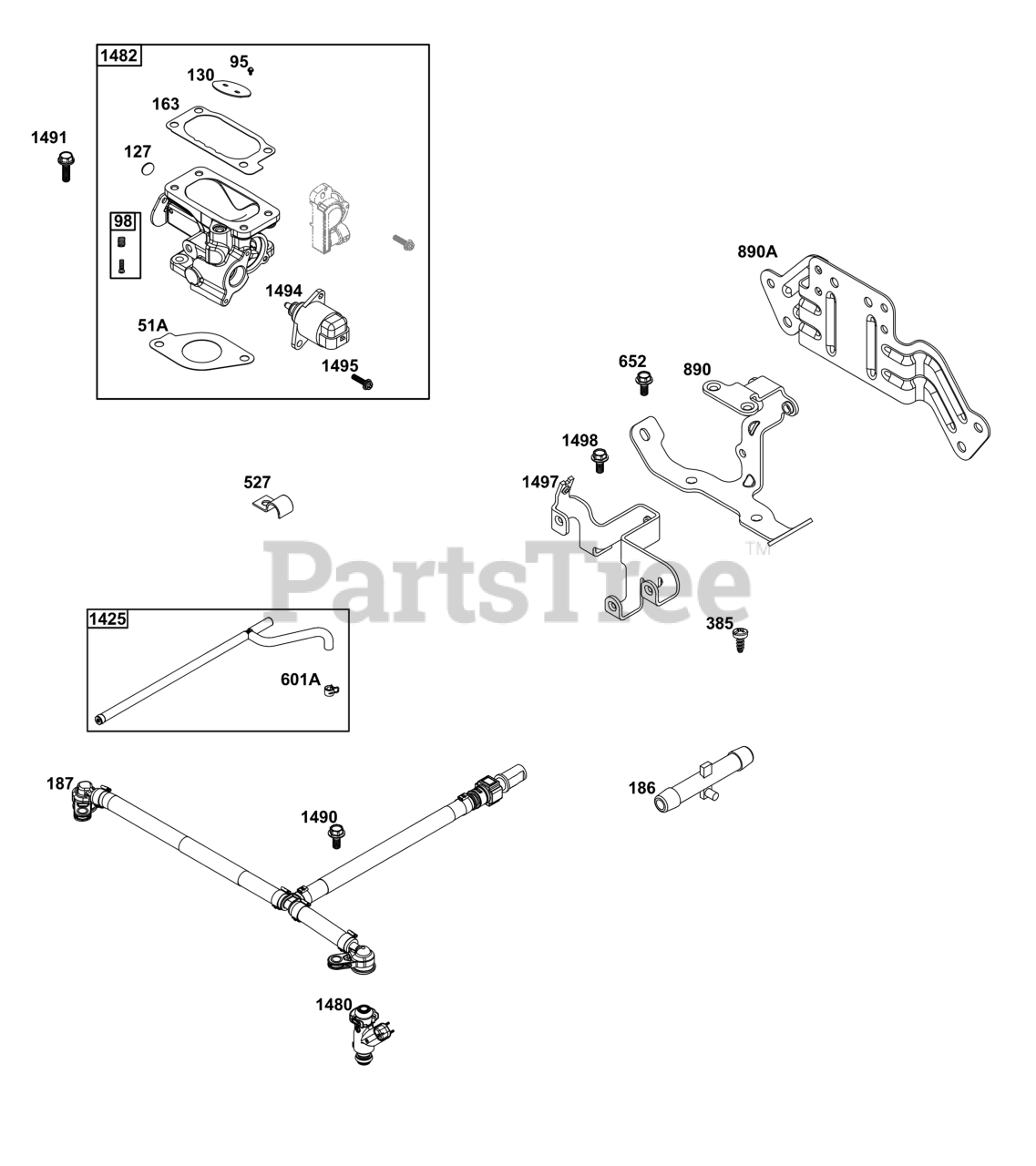

Throttle Body and Fuel Supply Group Parts Diagram

  • Title

51A

GASKET, Intake

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

95

Briggs & Stratton 593897

SCREW

Note: (Throttle Valve)

$6.99

$

Usually ships in 2-12 days

0

98

Briggs & Stratton 846477

KIT, Idle Speed

$5.99

$

Usually ships in 2-12 days

0

127

Briggs & Stratton 691742

PLUG, Welch

$5.49

$

In Stock, only 1 left!

0

130

Briggs & Stratton 846476

VALVE, Throttle

$5.49

$

Usually ships in 2-12 days

0

163

GASKET, Air Cleaner

Note: (Part information located in Air Cleaner Group.)

$

$

Not available

186

Briggs & Stratton 845121

CONNECTOR, Hose

$6.99

$

Usually ships in 2-12 days

0

187

Briggs & Stratton 846475

LINE, Fuel

$189.99

$

Usually ships in 2-12 days

0

385

Briggs & Stratton 846250

SCREW
(Superseded to 84006665)

Note: (Fuel Pump)

$3.99

$

Usually ships in 2-12 days

0

527

Briggs & Stratton 690423

CLAMP, Tube

$5.49

$

Usually ships in 2-12 days

0

601A

Briggs & Stratton 846483

CLAMP, Hose

$19.99

$

Usually ships in 2-12 days

0

652

Briggs & Stratton 807084

SCREW

Note: (Support Bracket)

$3.99

$

In Stock, only 3 left!

0

890

Briggs & Stratton 846506

BRACKET, Support

$106.99

$

Usually ships in 2-12 days

0

890A

Briggs & Stratton 846493

BRACKET, Support

$117.99

$

Usually ships in 2-12 days

0

1425

Briggs & Stratton 845717

HOSE, Purge Line

$32.99

$

Usually ships in 2-12 days

0

1480

Briggs & Stratton 593852

INJECTOR, Fuel

$87.99

$

In Stock, only 2 left!

0

1482

Briggs & Stratton 846474

BODY, Throttle

$511.99

$

Usually ships in 2-12 days

0

1490

Briggs & Stratton 807084

SCREW

Note: (Fuel Injector)

$3.99

$

In Stock, only 3 left!

0

1491

Briggs & Stratton 807435

SCREW

Note: (Throttle Body)

$3.99

$

Usually ships in 2-12 days

0

1494

Briggs & Stratton 846479

VALVE, Idle Air

$143.99

$

In Stock, only 1 left!

0

1495

Briggs & Stratton 847169

SCREW

Note: (Idle Air Valve)

$3.99

$

Usually ships in 2-12 days

0

1497

Briggs & Stratton 846505

BRACKET, Fuel Module

$111.99

$

Usually ships in 2-12 days

0

1498

Briggs & Stratton 807084

SCREW

Note: (Fuel Module Bracket)

$3.99

$

In Stock, only 3 left!

0
