54E677-0002-J1 - Briggs & Stratton Vertical Engine Electric Starter, Alternator, ECU, Regulator Parts Diagram

Vertical Engine

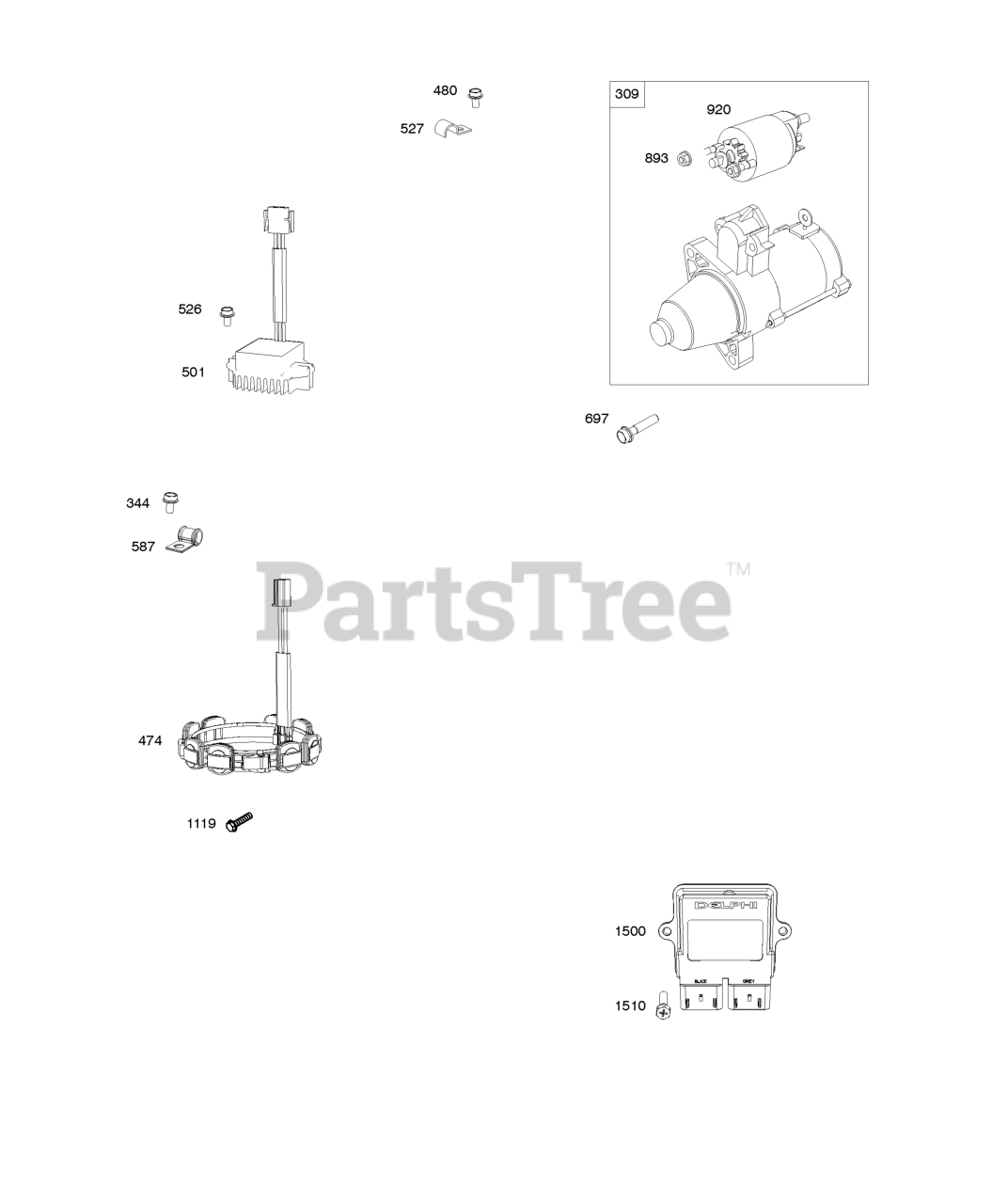

Electric Starter, Alternator, ECU, Regulator Parts Diagram

  • Title

309

Briggs & Stratton 845761

Motor-Starter
(Superseded to 84006533)

$385.99

$

Usually ships in 2-12 days

0

344

Briggs & Stratton 841233

SCREW

Note: (Cable Clamp) (M6x10mm)

$3.99

$

In Stock, Qty 14

0

474

Briggs & Stratton 846882

Alternator

$130.99

$

In Stock, only 2 left!

0

480

Briggs & Stratton 841233

SCREW

Note: (Tube Clamp) (M6x10mm)

$3.99

$

In Stock, Qty 14

0

501

Briggs & Stratton 593843

REGULATOR

$63.99

$

In Stock, only 1 left!

0

526

Briggs & Stratton 690717

Screw

Note: (Regulator) (M6x30mm)

$3.99

$

Usually ships in 2-12 days

0

527

Briggs & Stratton 690423

CLAMP, Tube

$5.49

$

Usually ships in 2-12 days

0

587

Briggs & Stratton 846866

Clamp-Cable

$5.49

$

Usually ships in 2-12 days

0

697

Briggs & Stratton 690711

Screw

Note: (Starter Motor) (Drive Cap) (M8x38mm)

$7.49

$

Usually ships in 2-12 days

0

893

Briggs & Stratton 845758

Nut

Note: (Starter Solenoid)

$2.99

$

In Stock, only 2 left!

0

920

Briggs & Stratton 846737

Solenoid-Starter
(Superseded to 847694)

$64.99

$

In Stock, Qty 11

0

1119

Briggs & Stratton 691552

SCREW

Note: (Alternator)

$4.49

$

Usually ships in 2-12 days

0

1500

Briggs & Stratton 846484

MODULE, Electronic Control

Note: (Not Programmed) (Not Programmed)

$288.99

$

Usually ships in 2-12 days

0

1510

Briggs & Stratton 841552

SCREW

Note: (Electronic Control Module) (M5x20mm)

$3.99

$

In Stock, only 1 left!

0
