54E677-0002-J1 - Briggs & Stratton Vertical Engine Fuel System, Intake Manifold, Throttle Body Parts Diagram

Vertical Engine

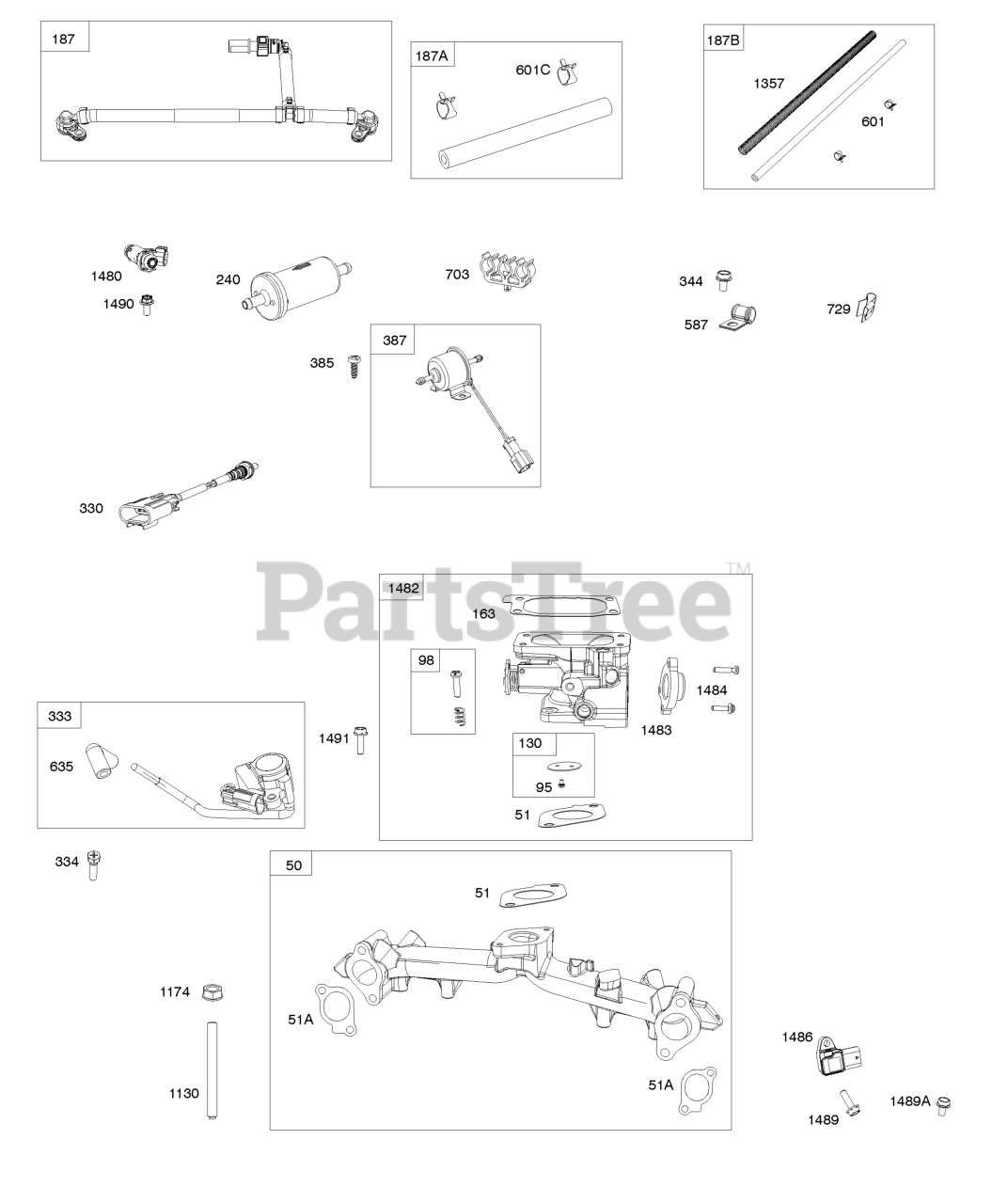

Fuel System, Intake Manifold, Throttle Body Parts Diagram

  • Title

50

Briggs & Stratton 846472

Manifold-Intake

$299.99

$

Usually ships in 2-12 days

0

51

Briggs & Stratton 846473

GASKET, Intake

Note: (Intake Manifold/Throttle Body)

$3.99

$

In Stock, only 2 left!

0

51A

Briggs & Stratton 841592

Gasket-Intake
(Superseded to 847671)

$4.49

$

In Stock, Qty 8

0

95

Briggs & Stratton 593897

SCREW

Note: (Throttle Valve)

$6.99

$

Usually ships in 2-12 days

0

98

Briggs & Stratton 797156

Kit-Idle Speed

$14.99

$

Usually ships in 2-12 days

0

130

Briggs & Stratton 846808

Valve-Throttle

$8.49

$

Usually ships in 2-12 days

0

163

Briggs & Stratton 807375

GASKET, Air Cleaner

$6.99

$

In Stock, Qty 6

0

187

Briggs & Stratton 846500

Line-Fuel

$197.99

$

Usually ships in 2-12 days

0

187A

Briggs & Stratton 791766

LINE, Fuel

Note: (Cut To Required Length)

$8.49

$

In Stock, Qty 14

0

187B

Briggs & Stratton 846823

Line-Fuel

$26.99

$

Usually ships in 2-12 days

0

240

Briggs & Stratton 845125

FILTER, Fuel

$7.99

$

In Stock, Qty 20+

0

330

Briggs & Stratton 593870

SENSOR, Oxygen

$149.99

$

Usually ships in 2-12 days

0

333

Briggs & Stratton 846490

Armature-Magneto
(Superseded to 84005190)

Note: (Cylinders #1 & #2)

$76.99

$

In Stock, Qty 7

0

334

Briggs & Stratton 841552

SCREW

Note: (Magneto Armature) (M8x20mm)

$3.99

$

In Stock, only 1 left!

0

344

Briggs & Stratton 841233

SCREW

Note: (Cable Clamp) (M6x10mm)

$3.99

$

In Stock, Qty 14

0

385

Briggs & Stratton 846250

SCREW
(Superseded to 84006665)

Note: (Fuel Pump) (M6x16mm)

$3.99

$

Usually ships in 2-12 days

0

387

Briggs & Stratton 846824

Pump-Fuel

$160.99

$

In Stock, only 3 left!

0

587

Briggs & Stratton 846866

Clamp-Cable

$5.49

$

Usually ships in 2-12 days

0

601

Briggs & Stratton 691038

CLAMP, Hose

Note: (Black)

$3.99

$

In Stock, Qty 20+

0

601C

Briggs & Stratton 791850

CLAMP, Hose

Note: (Green)

$3.49

$

In Stock, Qty 11

0

635

Briggs & Stratton 692076

BOOT, Spark Plug

$5.99

$

In Stock, Qty 12

0

703

Briggs & Stratton 846837

Clip

$16.99

$

Usually ships in 2-12 days

0

729

Briggs & Stratton 846826

Clip-Wire

Note: (Oxygen Sensor)

$7.49

$

Usually ships in 2-12 days

0

1130

Briggs & Stratton 841590

STUD

Note: (Intake Manifold)

$10.99

$

Usually ships in 2-12 days

0

1174

Briggs & Stratton 842067

NUT

Note: (Intake Manifold)

$3.99

$

Usually ships in 2-12 days

0

1357

Briggs & Stratton 846822

Sleeve-Fuel Line

$12.99

$

Usually ships in 2-12 days

0

1480

Briggs & Stratton 593852

INJECTOR, Fuel

$87.99

$

In Stock, only 2 left!

0

1482

Briggs & Stratton 846807

Body-Throttle

$467.99

$

Usually ships in 2-12 days

0

1483

Briggs & Stratton 593895

COVER, Dust

$9.99

$

Usually ships in 2-12 days

0

1484

Briggs & Stratton 847169

SCREW

Note: (Dust Cover)

$3.99

$

Usually ships in 2-12 days

0

1486

Briggs & Stratton 593905

SENSOR, Temperature/Manifold Absolute Pressure (MAP)

$141.99

$

Usually ships in 2-12 days

0

1489

Briggs & Stratton 807435

SCREW

Note: (TEMP/MAP Sensor) (M6x20mm)

$3.99

$

Usually ships in 2-12 days

0

1489A

Briggs & Stratton 846459

SCREW

Note: (TEMP/MAP Sensor) (M5x10mm)

$3.99

$

Usually ships in 2-12 days

0

1490

Briggs & Stratton 807084

SCREW

Note: (Fuel Injector) (M6x14mm)

$3.99

$

In Stock, only 2 left!

0

1491

Briggs & Stratton 807435

SCREW

Note: (Throttle Body) (M6x20mm)

$3.99

$

Usually ships in 2-12 days

0
