54E677-0004-J1 - Briggs & Stratton Vertical Engine Throttle Body and Fuel Supply Group Parts Diagram

Vertical Engine

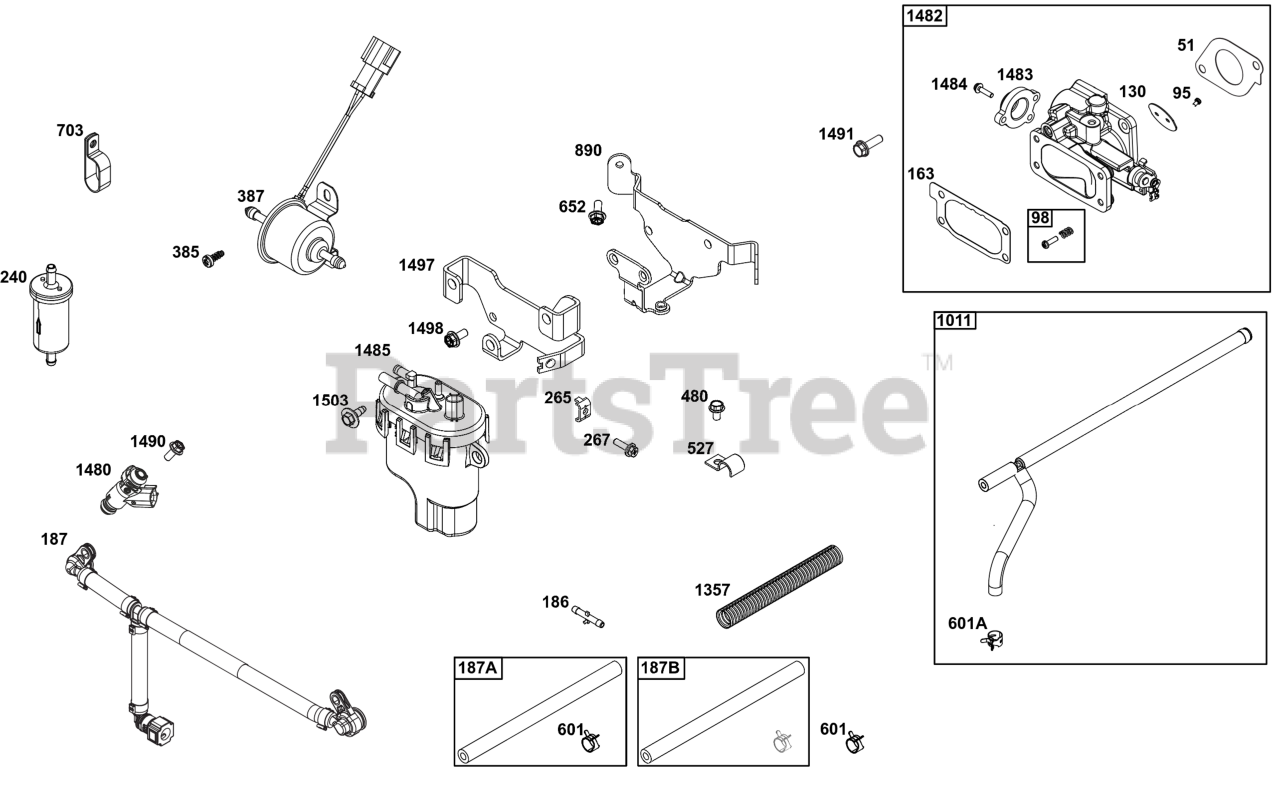

Throttle Body and Fuel Supply Group Parts Diagram

  • Title

51

GASKET, Intake

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

95

Briggs & Stratton 593897

SCREW

Note: (Throttle Valve)

$6.99

$

Usually ships in 2-12 days

0

98

Briggs & Stratton 797156

KIT, Idle Speed

$12.99

$

Usually ships in 2-12 days

0

130

Briggs & Stratton 846808

VALVE, Throttle

$7.99

$

Usually ships in 2-12 days

0

163

GASKET, Air Cleaner

Note: (Part information located in Air Cleaner Group.)

$

$

Not available

186

Briggs & Stratton 845121

CONNECTOR, Hose

$6.49

$

Usually ships in 2-12 days

0

187

Briggs & Stratton 846500

LINE, Fuel

$179.99

$

Usually ships in 2-12 days

0

187A

Briggs & Stratton 846823

LINE, Fuel

$24.99

$

Usually ships in 2-12 days

0

187B

Briggs & Stratton 791766

LINE, Fuel

$7.99

$

In Stock, Qty 15

0

240

Briggs & Stratton 845125

FILTER, Fuel

$7.49

$

In Stock, Qty 20+

0

265

CLAMP, Casing

Note: (Part information located in Controls Group.)

$

$

Not available

267

SCREW

Note: (Part information located in Controls Group.)

$

$

Not available

385

Briggs & Stratton 846250

SCREW

Note: (Fuel Pump)

$4.99

$

Usually ships in 2-12 days

0

387

Briggs & Stratton 846824

PUMP, Fuel

$146.99

$

In Stock, only 2 left!

0

480

Briggs & Stratton 841233

SCREW

Note: (Tube Clamp)

$3.49

$

Usually ships in 2-12 days

0

527

Briggs & Stratton 807116

CLAMP, Cable

$4.99

$

In Stock, only 1 left!

0

527

Briggs & Stratton 690423

CLAMP, Tube

$4.99

$

Usually ships in 2-12 days

0

601

Briggs & Stratton 691038

CLAMP, Hose

$3.99

$

In Stock, only 3 left!

0

601A

Briggs & Stratton 846483

CLAMP, Hose

$3.99

$

Usually ships in 2-12 days

0

652

Briggs & Stratton 807084

SCREW

Note: (Support Bracket)

$3.49

$

In Stock, Qty 13

0

703

Briggs & Stratton 594364

CLIP

$6.99

$

Usually ships in 2-12 days

0

890

Briggs & Stratton 846492

BRACKET, Support

$195.99

$

Usually ships in 2-12 days

0

1011

Briggs & Stratton 846830

TUBE, Vent

$73.99

$

Usually ships in 2-12 days

0

1357

Briggs & Stratton 846822

SLEEVE, Fuel Line

$11.99

$

Usually ships in 2-12 days

0

1480

Briggs & Stratton 593852

INJECTOR, Fuel

$79.99

$

Usually ships in 2-12 days

0

1482

Briggs & Stratton 846807

BODY, Throttle

$425.99

$

Usually ships in 2-12 days

0

1483

Briggs & Stratton 593895

COVER, Dust

$8.99

$

Usually ships in 2-12 days

0

1484

Briggs & Stratton 847169

SCREW

Note: (Dust Cover)

$3.99

$

Usually ships in 2-12 days

0

1485

Briggs & Stratton 593890

MODULE, Fuel

$411.99

$

In Stock, only 1 left!

0

1490

Briggs & Stratton 807084

SCREW

Note: (Fuel Injector)

$3.49

$

In Stock, Qty 13

0

1491

Briggs & Stratton 807435

SCREW

Note: (Throttle Body)

$3.49

$

Usually ships in 2-12 days

0

1497

Briggs & Stratton 846486

BRACKET, Fuel Module

$198.99

$

Usually ships in 2-12 days

0

1498

Briggs & Stratton 807084

SCREW

Note: (Fuel Module Bracket)

$3.49

$

In Stock, Qty 13

0

1503

Briggs & Stratton 594618

SCREW

Note: (Fuel Module)

$3.99

$

Usually ships in 2-12 days

0
