54G26G60X8A (96042013900) - Murray 54" Lawn Tractor, 26hp (2010) 54" Mower Deck - Housing, Arbors & Blades Group (54G26G60X8A) Parts Diagram

54" Lawn Tractor, 26hp

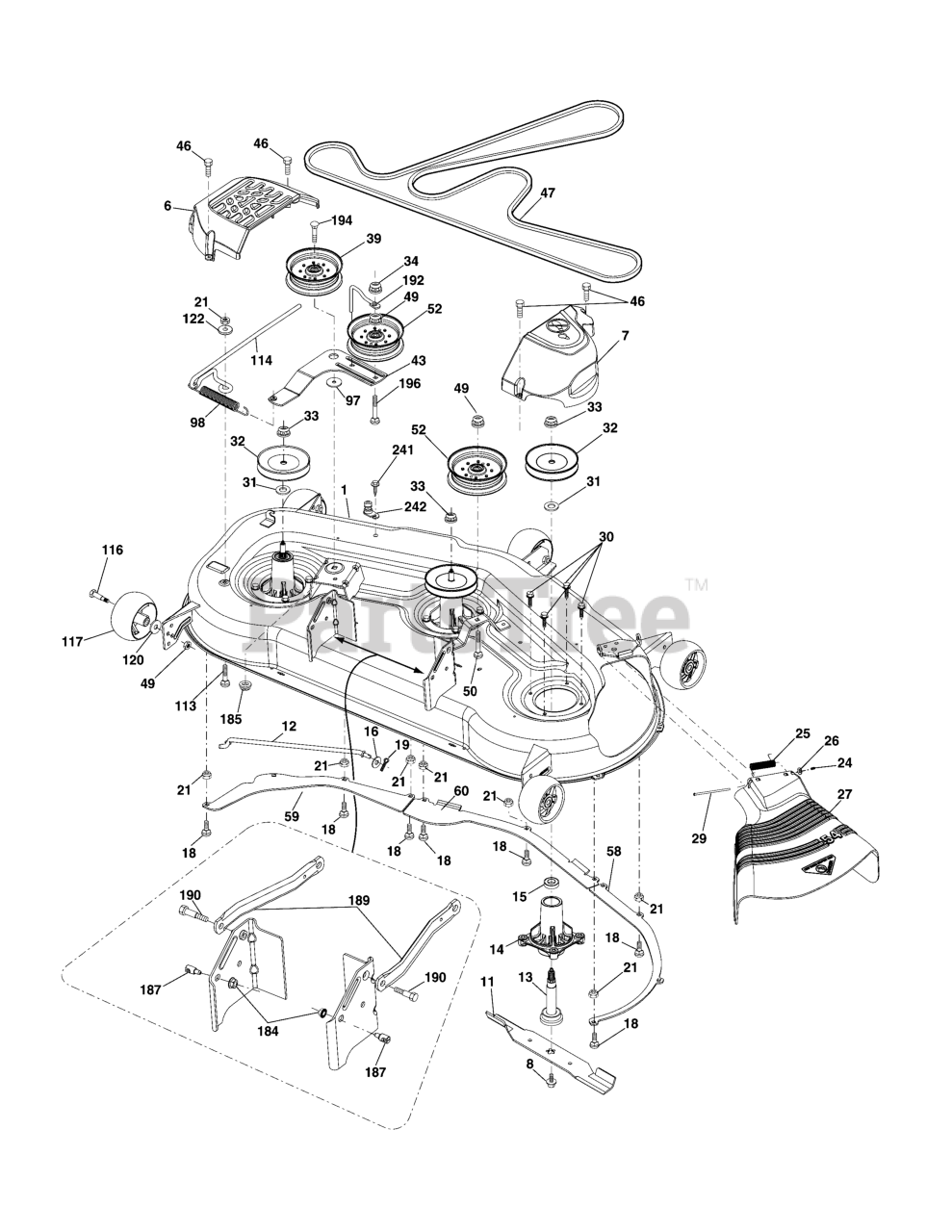

54" Mower Deck - Housing, Arbors & Blades Group (54G26G60X8A) Parts Diagram

  • Title

1

Murray 195632

Deck Weldment Mower

Note: (This part is not serviced by Briggs & Stratton.)

$

$

Not available

6

Murray 708272

Cover Mandrel LH

$58.99

$

Usually ships in 2-12 days

0

7

Murray 708292

Cover Mandrel RH

$77.99

$

Usually ships in 2-12 days

0

8

Murray 709258

Bolt 7/16 Asm. Blade
(Superseded to 705059)

$19.99

$

In Stock, only 2 left!

0

11

Murray 708208

Blade Bagging

$43.99

$

Usually ships in 2-12 days

0

12

Murray 708349

Rod Anti-Sway

$32.99

$

Usually ships in 2-12 days

0

13

Murray 187291

Shaft Asm. w/Lower Bearing

Note: (This part is not serviced by Briggs & Stratton.)

$

$

Not available

14

Murray 705048

Housing, Mandrel
(Superseded to 705057)

$106.99

$

Usually ships in 2-12 days

0

15

Murray 704992

Bearing, Ball, Mandrel

$23.99

$

In Stock, only 1 left!

0

16

Murray 709227

Washer 13/23 x 13/16 x 1 2 Ga.

$4.99

$

Usually ships in 2-12 days

0

18

Murray 709422

Bolt RdHd. 5/16-18 unc x 5/8
(Superseded to 705344)

$7.99

$

Usually ships in 2-12 days

0

19

Murray 709276

Pin Cotter 5/16 Bowtie Lock

$6.49

$

Usually ships in 2-12 days

0

21

Murray 709430

Nut, Crownlock 5/16-18 unc
(Superseded to 705350)

$5.99

$

Usually ships in 2-12 days

0

24

Murray 709007

Cap Sleeve

$3.99

$

Usually ships in 2-12 days

0

25

Murray 708194

Spring, Torsion

$7.49

$

Usually ships in 2-12 days

0

26

Murray 709016

Nut, Push
(Superseded to 704991)

$7.99

$

In Stock, only 2 left!

0

27

Murray 708591

Deflector Shield

$330.99

$

Usually ships in 2-12 days

0

29

Murray 709051

Rod, Hinge
(Superseded to 705009)

$7.99

$

In Stock, only 1 left!

0

30

Murray 709158

Screw, Thdrol. Washer Head
(Superseded to 709771)

$7.49

$

In Stock, Qty 20+

0

31

Murray 709215

Washer, Spacer Mower Vented
(Superseded to 705050)

$7.99

$

In Stock, only 3 left!

0

32

Murray 709097

Pulley, Mandrel

$32.99

$

Usually ships in 2-12 days

0

33

Murray 709296

Nut, Flg. Top Lock
(Superseded to 705134)

$11.99

$

In Stock, only 1 left!

0

34

Murray 709431

Nut Crownlock 3/8-16 unc

$5.99

$

In Stock, only 1 left!

0

39

Murray 708310

Pulley, Idler
(Superseded to 707999)

$76.99

$

Usually ships in 2-12 days

0

43

Murray 708271

Arm, Idler

$31.99

$

Usually ships in 2-12 days

0

46

Murray 709067

Screw, Thdrol. 1/4-20 x 5/8
(Superseded to 705013)

$8.99

$

In Stock, only 1 left!

0

47

Murray 708273

Belt Drive Deck

$61.99

$

Usually ships in 2-12 days

0

49

Murray 709088

Nut, Lock Flg. 3/8-16 unc

$8.99

$

In Stock, only 3 left!

0

50

Murray 705342

Bolt Rdhd. Sqnk. 3/8-16 unc x 2

$6.99

$

Usually ships in 2-12 days

0

52

Murray 705114

Pulley Idler
(Superseded to 709729)

$70.99

$

In Stock, only 4 left!

0

58

Murray 708210

Baffle Right

$42.99

$

Usually ships in 2-12 days

0

59

Murray 708211

Baffle Left

$46.99

$

Usually ships in 2-12 days

0

60

Murray 708215

Baffle Center

$49.99

$

Usually ships in 2-12 days

0

97

Murray 709186

Washer Hardened

$4.49

$

Usually ships in 2-12 days

0

98

Murray 196105

Spring Drive

$7.49

$

In Stock, Qty 20+

0

113

Murray 708484

Bolt Rdhd. Sqnk. 5/16-18 x 3/4

$6.49

$

Usually ships in 2-12 days

0

114

Murray 708213

Rod Tension Relief

$32.99

$

Usually ships in 2-12 days

0

116

Murray 708232

Bolt, Shoulder

$7.99

$

In Stock, only 3 left!

0

117

Murray 174873

Gauge Wheel

Note: (This part is not serviced by Briggs & Stratton.)

$

$

Not available

120

Murray 19132012

Washer 13/32 x 1-1/4 x 12 Ga.

Note: (This part is not serviced by Briggs & Stratton.)

$

$

Not available

122

Murray 187557

Bushing Tension Relief
(Superseded to 715914)

Note: (This part is not serviced by Briggs & Stratton.)

$63.99

$

Usually ships in 2-12 days

0

184

Murray 708491

Nut Lock Hex Flange 5/16-18

$7.99

$

Usually ships in 2-12 days

0

185

Murray 705354

Nut Lock Flange 7/16-14 Gr. 5

$6.49

$

Usually ships in 2-12 days

0

187

Murray 705088

Stud Fastener w/"D" Anti-Rotation

$12.99

$

In Stock, only 2 left!

0

189

Murray 708254

Arm Susp. Mower Rear

$25.99

$

Usually ships in 2-12 days

0

190

Murray 705100

Bolt Shoulder

$15.99

$

Usually ships in 2-12 days

0

192

Murray 708328

Keeper Belt Idler

$13.99

$

Usually ships in 2-12 days

0

194

Murray 708499

Bolt Carr. Sqnk. 7/16-24 x 2

$16.99

$

Usually ships in 2-12 days

0

196

Murray 708486

Bolt Rdhd 3/8-16 x 2-1/2 Gr. 5

$10.99

$

Usually ships in 2-12 days

0

241

Murray 709095

Screw

$4.99

$

Usually ships in 2-12 days

0

242

Murray 705231

Port Washout

$16.99

$

In Stock, only 1 left!

0

--

Murray 705234

Coupling Quick Connect

$7.99

$

In Stock, only 1 left!

0

--

Murray 708209

Mandrel Assembly

Note: (Includes housing, Shaft assembly & bearing only pulley/nut/washer & blad bolt/washers not included)

$87.99

$

Usually ships in 2-12 days

0

--

Murray 708419

REPLACEMENT MOWER, Complete

$2596.99

$

Usually ships in 2-12 days

0
