54G26G60X8A (96042013900) - Murray 54" Lawn Tractor, 26hp (2010) Steering Group (54G26G60X8A) Parts Diagram

54" Lawn Tractor, 26hp

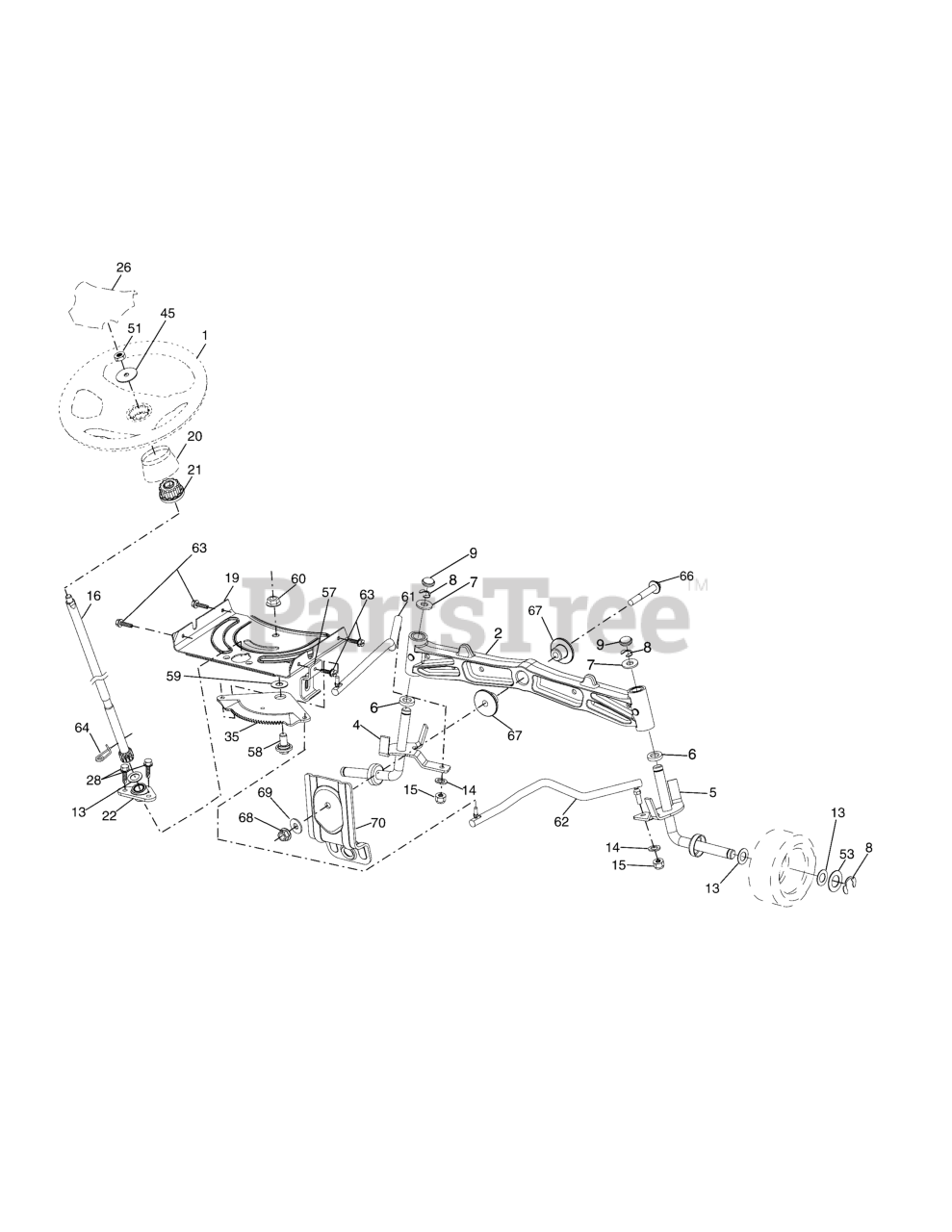

Steering Group (54G26G60X8A) Parts Diagram

  • Title

1

Murray 708590

Wheel, Steering

$490.99

$

Usually ships in 2-12 days

0

2

Murray 705095

Axle Asm., Front
(Superseded to 709727)

$277.99

$

Usually ships in 2-12 days

0

4

Murray 708367

Spindle Asm., LH

$97.99

$

Usually ships in 2-12 days

0

5

Murray 708368

Spindle Asm., RH

$97.99

$

Usually ships in 2-12 days

0

6

Murray 705006

Bearing, Race Thrust Harden
(Superseded to 770061)

$18.99

$

Usually ships in 2-12 days

0

7

Murray 709030

Washer 25/32 x 1-5/8 x 16 Ga.
(Superseded to 704995)

$7.99

$

In Stock, Qty 7

0

8

Murray 709023

Ring, Clip #T5304-75
(Superseded to 705319)

$6.99

$

In Stock, Qty 19

0

9

Murray 709026

Cap, Spindle

$7.49

$

Usually ships in 2-12 days

0

13

Murray 709031

Washer 25/32 x 1-1/4 x 16 Ga.
(Superseded to 704996)

$7.99

$

In Stock, Qty 20+

0

14

Murray 709003

Washer, Lock Hvy Hlcl Spr 3/8
(Superseded to 705316)

$5.99

$

In Stock, only 1 left!

0

15

Murray 709429

Nut, Crown Lock 3/8-24 unf

$

$

Not available

16

Murray 194746

Shaft Steering

Note: (This part is not serviced by Briggs & Stratton.)

$51.99

$

In Stock, Qty 20+

0

19

Murray 705081

Plate Steering

$37.99

$

In Stock, only 1 left!

0

20

Murray 708626

Boot, Steering

$9.49

$

Usually ships in 2-12 days

0

21

Murray 709208

Adapter, Wheel Steering
(Superseded to 709772)

$60.99

$

In Stock, only 1 left!

0

22

Murray 705235

Strg. Supt. Lower
(Superseded to 709805)

$38.99

$

Usually ships in 2-12 days

0

26

Murray 186095X428

Insert, Wheel Steering

Note: (This part is not serviced by Briggs & Stratton.)

$17.99

$

In Stock, Qty 5

0

28

Murray 709148

Screw 3/8-16 x 3/4
(Superseded to 705322)

$6.49

$

In Stock, only 1 left!

0

35

Murray 770316

Gear, Sector Plate

$71.99

$

Usually ships in 2-12 days

0

45

Murray 709225

Washer 11/32 x 2-3/8 x 12 Ga.

$5.49

$

Usually ships in 2-12 days

0

51

Murray 705357

Nut Hex Jam Toplock 1/2-20 unf

$6.99

$

Usually ships in 2-12 days

0

53

Murray 709218

Washer Hardened .793 x 1.637 x .060

$

$

Not available

57

Murray 708294

Bracket Upstop

$16.99

$

Usually ships in 2-12 days

0

58

Murray 770319

Bolt Shoulder Sector Pivot CFM

$11.99

$

Usually ships in 2-12 days

0

59

Murray 705087

Washer Thrust Sector Steering

$9.99

$

In Stock, only 1 left!

0

60

Murray 708497

Nut Flange Lock 5/8-11

$7.49

$

Usually ships in 2-12 days

0

61

Murray 770317

Draglink, LH

$123.99

$

Usually ships in 2-12 days

0

62

Murray 770318

Draglink, RH

$118.99

$

In Stock, only 1 left!

0

63

Murray 705321

Screw 5/16-18 x 3/4
(Superseded to 709742)

$8.99

$

Usually ships in 2-12 days

0

64

Murray 705132

Retainer Clip Spring Steering

$8.99

$

Usually ships in 2-12 days

0

66

Murray 708481

Bolt Hex Fghd 7/16-14 x 3 Serr

$9.49

$

Usually ships in 2-12 days

0

67

Murray 705083

Bushing PM Front Axle

$13.99

$

Usually ships in 2-12 days

0

68

Murray 705354

Nut Lock Flange 7/16-14 Gr. 5

$6.49

$

Usually ships in 2-12 days

0

69

Murray 705125

Washer 1.5 x .505 x .118

$5.99

$

Usually ships in 2-12 days

0

70

Murray 705097

Bracket Deck Susp. Front

$18.99

$

Usually ships in 2-12 days

0
