54G26G60X8A (96042013902) - Murray 54" Lawn Tractor, 26hp (2015) Engine Group - 26 Gross HP (54G26G60X8A) Parts Diagram

54" Lawn Tractor, 26hp

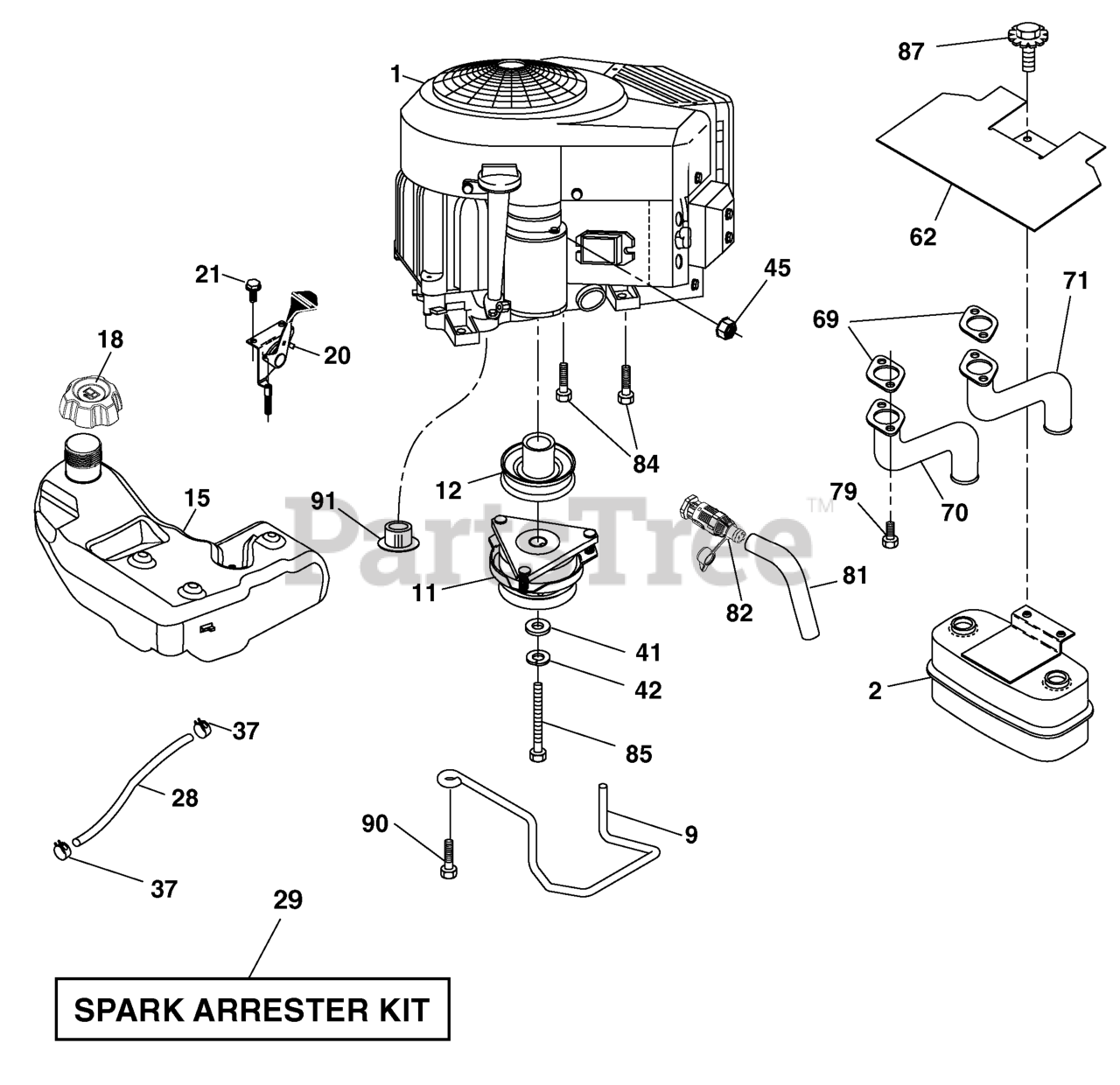

Engine Group - 26 Gross HP (54G26G60X8A) Parts Diagram

  • Title

1

Murray 44P777-4448-G5

ENGINE, 26 Gross HP Briggs & Stratton

Note: See your local Murray distributor for parts and service.

$

$

Currently unavailable

2

Murray 707983

Muffler

Note: See your local Murray distributor for parts and service.

$106.99

$

Usually ships in 2-12 days

0

9

Murray 708542

Keeper Asm. Belt Engine

Note: See your local Murray distributor for parts and service.

$10.99

$

Usually ships in 2-12 days

0

11

Murray 708562

Clutch Electric

Note: See your local Murray distributor for parts and service.

$394.99

$

Usually ships in 2-12 days

0

12

Murray 194342

Pulley Engine

Note: See your local Murray distributor for parts and service.

$

$

Not available

15

Murray 708233

Tank Fuel 4.0

Note: See your local Murray distributor for parts and service.

$288.99

$

Usually ships in 2-12 days

0

18

Murray 708038

Cap Asm

Note: See your local Murray distributor for parts and service.

$31.99

$

Usually ships in 2-12 days

0

20

Murray 175437X428

Control

Note: See your local Murray distributor for parts and service.

$44.99

$

In Stock, only 1 left!

0

21

Murray 709330

Screw 10 x .750 BOS Thread
(Superseded to 705233)

Note: See your local Murray distributor for parts and service.

$4.99

$

Usually ships in 2-12 days

0

28

Murray 708690

Fuel Line

Note: See your local Murray distributor for parts and service.

$27.99

$

Usually ships in 2-12 days

0

29

Murray 709065

Spark Arrester Kit

Note: See your local Murray distributor for parts and service.

$109.99

$

Usually ships in 2-12 days

0

37

Murray 709034

Clamp Hose

Note: See your local Murray distributor for parts and service.

$4.99

$

Usually ships in 2-12 days

0

41

Murray 708571

Washer 1-1/2 OD x 15/32 ID x .250

Note: See your local Murray distributor for parts and service.

$9.99

$

In Stock, only 1 left!

0

42

Murray 709004

Washer Lock 7/16
(Superseded to 705317)

Note: See your local Murray distributor for parts and service.

$4.99

$

In Stock, only 2 left!

0

45

Murray 709428

Nut Keps 1/4-20 unc
(Superseded to 709054)

Note: See your local Murray distributor for parts and service.

$4.99

$

Usually ships in 2-12 days

0

62

Murray 705252

Shield Heat Muffler

Note: See your local Murray distributor for parts and service.

$15.99

$

Usually ships in 2-12 days

0

69

Murray 705028

Gasket

Note: See your local Murray distributor for parts and service.

$30.99

$

In Stock, only 1 left!

0

70

Murray 705291

Tube Exhaust LH

Note: See your local Murray distributor for parts and service.

$35.99

$

Usually ships in 2-12 days

0

71

Murray 705290

Tube Exhaust RH
(Superseded to 708013)

Note: See your local Murray distributor for parts and service.

$40.99

$

Usually ships in 2-12 days

0

79

Murray 705044

Screw Socket Head 5/16-18 x 1

Note: See your local Murray distributor for parts and service.

$7.49

$

Usually ships in 2-12 days

0

81

Murray 770311

Tube Drain Oil Easy

Note: See your local Murray distributor for parts and service.

$8.99

$

Usually ships in 2-12 days

0

82

Murray 709359

Valve Oil Drain
(Superseded to 705244)

Note: See your local Murray distributor for parts and service.

$24.99

$

Usually ships in 2-12 days

0

84

Murray 709153

Screw 3/8-16 x 1-1/4

Note: See your local Murray distributor for parts and service.

$5.49

$

Usually ships in 2-12 days

0

85

Murray 708198

Bolt Hex 7/16-20 x 3.75 Gr. 5

Note: See your local Murray distributor for parts and service.

$9.99

$

Usually ships in 2-12 days

0

87

Murray 708324

Bolt 5/16-18 unc x 1 w/Sems

Note: See your local Murray distributor for parts and service.

$8.49

$

Usually ships in 2-12 days

0

90

Murray 709149

Screw 3/8-16 x 1

Note: See your local Murray distributor for parts and service.

$9.99

$

Usually ships in 2-12 days

0

91

Murray 187495

Bushing
(Superseded to 711778)

Note: See your local Murray distributor for parts and service.

$10.99

$

In Stock, only 4 left!

0
