55 (0340024U) - International Harvester Riding Mower (1971 - 1983) Ignition & Starting - Recoil Start Parts Diagram

Riding Mower

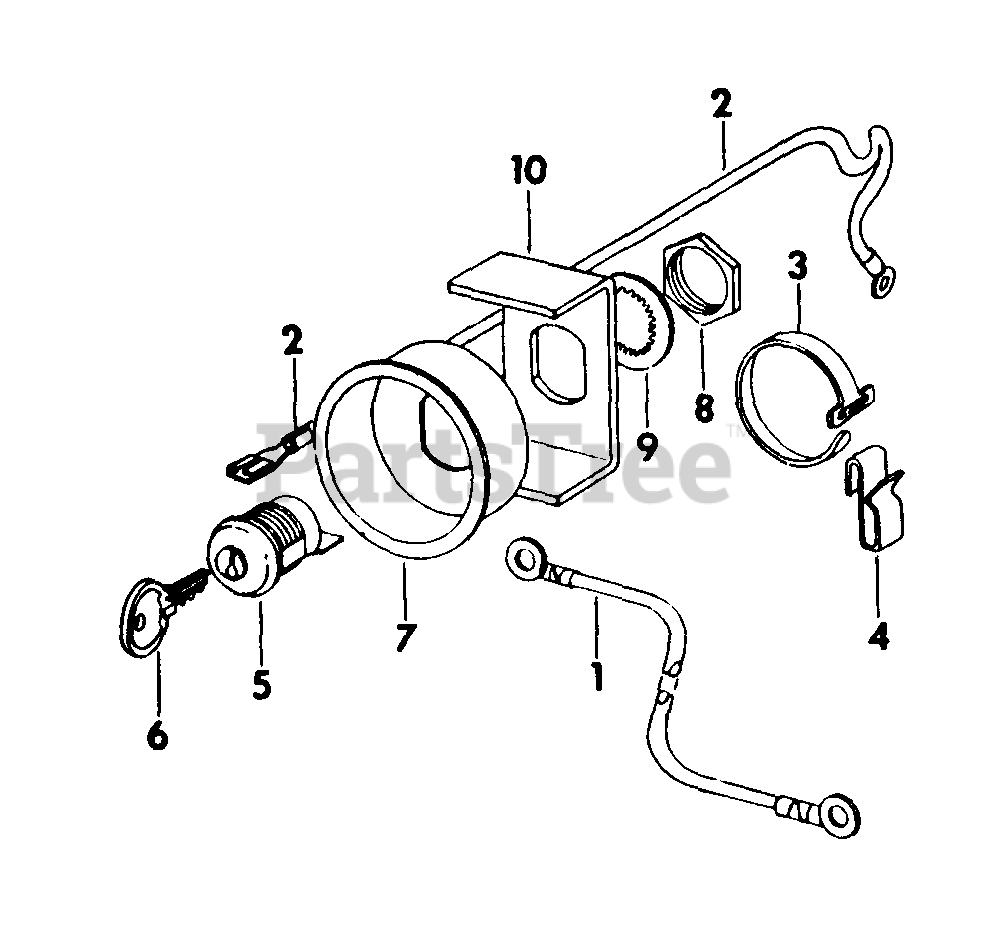

Ignition & Starting - Recoil Start Parts Diagram

  • Title

1

Cub Cadet IH-490192-R1

CABLE ASSY, SWITCH TO GROUND

Note: SERIAL NO 48499 AND BELOW

$

$

Currently unavailable

1

Cub Cadet IH-62818-C1

CABLE ASSY, SWITCH TO GROUND

Note: SERIAL NO 48500 AND ABOVE

$

$

Currently unavailable

2

Cub Cadet IH-57225-C1

CABLE ASSY, MAGNETO GROUND

$

$

Not available

Cub Cadet IH-384557-R1

CLIP, CABLE

$

$

Currently unavailable

Cub Cadet IH-180016

BOLT, 1/4 X 1/2 TYPE 5

$

$

Currently unavailable

Cub Cadet IH-174916

WASHER, 1/4 EXT-INT TOOTH LOCK
(Superseded to 736-3006)

$5.99

$

In Stock, only 1 left!

0

Cub Cadet IH-120375

NUT, 3/4 TYPE 5
(Superseded to 712-3006)

$4.49

$

In Stock, Qty 20+

0

3

Cub Cadet IH-702093-C1

CLAMP

$

$

Currently unavailable

4

Cub Cadet IH-395357-R1

CLIP, CABLE SPEED

$

$

Currently unavailable

5

Cub Cadet IH-379593-R92

SWITCH, IGNITION KEY

Note: SERIAL NO 48499 AND BELOW

$

$

Currently unavailable

Cub Cadet IH-107164-C91

SWITCH, IGNITION KEY

Note: SERIAL NO 48500 AND ABOVE

$

$

Not available

6

Cub Cadet IH-131313-C1

KEY, IGNITION SWITCH
(Superseded to IH-131313-C2)

Note: SERIAL NO 48499 AND BELOW

$11.99

$

In Stock, only 2 left!

0

Cub Cadet IH-62216-C1

KEY, IGNITION SWITCH
(Superseded to 925-0201)

Note: SERIAL NO 48500 AND ABOVE

$8.99

$

In Stock, Qty 14

0

7

Cub Cadet IH-402238-R1

SOCKET, IGNITION SWITCH

Note: SERIAL NO 48499 AND BELOW

$

$

Currently unavailable

8

Cub Cadet IH-365502-R1

NUT, MAGNETO IGNITION KEY MOUNTING

Note: SERIAL NO 48499 AND BELOW

$10.99

$

Usually ships in 3-6 days

0

Cub Cadet IH-61791-C1

NUT, MAGNETO IGNITION KEY MOUNTING

Note: SERIAL NO 48500 AND ABOVE

$

$

Not available

9

Cub Cadet IH-138557

WASHER, MAGNETO IGNITION KEY MOUNTING

$

$

Currently unavailable

10

Cub Cadet IH-491539-R1

RETAINER, IGNITION SWITCH

Note: SERIAL NO 48499 AND BELOW

$

$

Not available
