55 (0340028U) - International Harvester Riding Mower (1971 - 1983) Transmission Drive & Clutch Controls Parts Diagram

Riding Mower

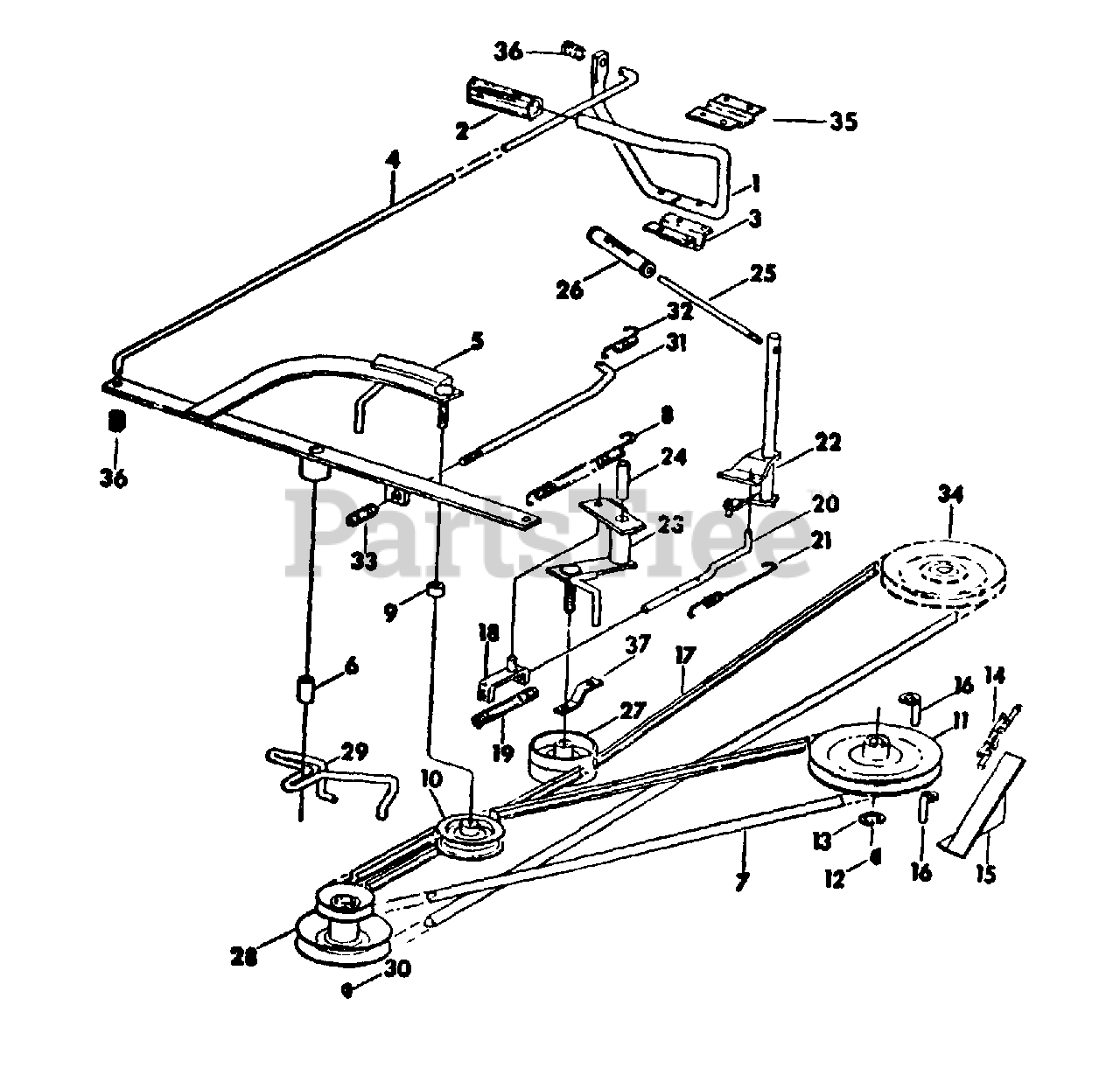

Transmission Drive & Clutch Controls Parts Diagram

  • Title

1

Cub Cadet IH-493530-R1

PEDAL, CLUTCH AND BRAKE

$

$

Not available

Cub Cadet IH-19372-R1

PIN, 1/8 X 7/8 C-Z HV COILED SPRING
(Superseded to 715-3017)

$

$

Not available

2

Cub Cadet IH-487961-R1

PAD, PEDAL

$

$

Not available

3

Cub Cadet IH-488034-R1

CLAMP, PEDAL PIVOT

$

$

Currently unavailable

Cub Cadet IH-180020

SCREW, 1/4-20 X 3/4 ZND HEX-HD CAP

$

$

Currently unavailable

4

Cub Cadet IH-549100-R2

ROD, CLUTCH CONTROL

$

$

Not available

Cub Cadet IH-120393

WASHER, 11/32 X 11/16 X .051 C-Z
(Superseded to 936-0275)

$

$

Not available

Cub Cadet IH-177923

PIN, 1/8 X 3/4 C-Z COT.
(Superseded to 914-0474)

$

$

Not available

5

Cub Cadet IH-549101-R1

ARM ASSY, SHIFTER PIVOT

$

$

Not available

6

Cub Cadet IH-488015-R1

BUSHING, SHIFTER ARM

$

$

Not available

Cub Cadet IH-490196-R1

WASHER, 13/32 X 1-1/4 X 7 GA C-Z
(Superseded to 936-3055)

$8.49

$

In Stock, only 2 left!

0

Cub Cadet IH-27346-R1

BOLT, 3/8 X 2-1/4 PHC P/T TYPE 8

$

$

Currently unavailable

Cub Cadet IH-385525-R1

NUT, 3/8-16 CDP HEX LOCK
(Superseded to 912-3000)

$3.99

$

In Stock, Qty 20+

0

7

Cub Cadet IH-549108-R1

BELT, FORWARD DRIVE

$

$

Not available

8

Cub Cadet IH-549109-R1

SPRING, PEDAL RETURN
(Superseded to 932-3010)

$

$

Not available

9

Cub Cadet IH-670823-R1

SPACER, 3/8 X .938 EXTRA STRONG PIPE

$

$

Currently unavailable

10

Cub Cadet IH-489074-R92

IDLER, BALL BRG

$

$

Not available

11

Cub Cadet IH-549598-R1

PULLEY, TRANSMISSION DRIVE

$

$

Not available

12

Cub Cadet IH-124549

KEY, 3/16 X 3/4 WOODRUFF 9
(Superseded to 914-0868)

$3.99

$

In Stock, Qty 5

0

13

Cub Cadet IH-269174-R1

RING, RETAINING
(Superseded to 916-0115)

$

$

Not available

14

Cub Cadet IH-541312-R1

CHAIN, FINAL REDUCTION

$

$

Not available

15

Cub Cadet IH-541858-R1

SHIELD ASSY, DRIVE CHAIN

$

$

Currently unavailable

16

Cub Cadet IH-549088-R1

GUIDE, BELT
(Superseded to 747-3030)

$

$

Not available

Cub Cadet IH-611344-R1

WASHER, 11/32 X 7/8 X 16 GA C-Z
(Superseded to 736-0195)

$

$

Not available

Cub Cadet IH-27969-R1

BOLT, 5/16 X 5/8 PHC PRE-TORQ TYPE 8

$

$

Currently unavailable

Cub Cadet IH-27970-R1

BOLT, 5/16 X 7/8 PHC PRE-TORQ TYPE 8

$

$

Currently unavailable

17

Cub Cadet IH-549609-R1

BELT, MOWER DRIVE

Note: SERIAL NO 48499 AND BELOW

$

$

Not available

Cub Cadet IH-62817-C1

BELT, MOWER DRIVE

Note: SERIAL NO 48500 AND ABOVE

$

$

Not available

18

Cub Cadet IH-549276-R1

STRAP ASSY, IPTO

$

$

Not available

Cub Cadet IH-619855-R1

WASHER, 11/32 X 3/4 X 16 GA C-Z
(Superseded to 936-0275)

$

$

Not available

Cub Cadet IH-103373

PIN, 3/32 X 3/4 COT
(Superseded to 914-0507)

$4.49

$

In Stock, Qty 19

0

19

Cub Cadet IH-549278-R1

SPRING, IPTD

$

$

Not available

20

Cub Cadet IH-549279-R1

ROD, MOWER SHIFTER

$

$

Not available

Cub Cadet IH-21872-R1

WASHER, 13/32 X 5/8 X 16 GA C-Z

$

$

Currently unavailable

Cub Cadet IH-103373

PIN, 3/32 X 3/4 COT
(Superseded to 914-0507)

$4.49

$

In Stock, Qty 19

0

21

Cub Cadet IH-549280-R1

SPRING, IPTO RETURN

$

$

Not available

Cub Cadet IH-103383

PIN, 1/8 X 1/2 COTTER

$

$

Not available

22

Cub Cadet IH-549281-R2

LEVER ASSY, MOWER SKATER

$

$

Currently unavailable

23

Cub Cadet IH-549269-R1

LEVER ASSY, SHIFTER ARM

$

$

Not available

Cub Cadet IH-614452-R1

WASHER, 13/32 X 1-1/4 X 11 GA C-Z
(Superseded to 936-0133)

$

$

Not available

Cub Cadet IH-191163

SCREW, 3/8-16 X 4 ZND HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-317598-R1

NUT, SPEED PUSH ON

$

$

Not available

24

Cub Cadet IH-549275-R1

BUSHING, IPTO

$

$

Not available

25

Cub Cadet IH-549289-R1

ROD, SHIFTER HANDLE

$

$

Not available

Cub Cadet IH-124925

NUT, 3/8-24 2ND HEX JAM

$

$

Currently unavailable

26

Cub Cadet IH-549290-R1

GRIP, SHIFTER HANDLE

$

$

Not available

27

Cub Cadet IH-488094-R1

PULLEY, MOWER SHIFTER IDLER
(Superseded to 956-3013)

$

$

Not available

Cub Cadet IH-385525-R1

NUT, 3/8-16 CDP HEX LOCK
(Superseded to 912-3000)

$3.99

$

In Stock, Qty 20+

0

28

Cub Cadet IH-549291-R1

PULLEY, ENGINE AND MOWER DRIVE

$

$

Not available

29

Cub Cadet IH-549537-R1

GUIDE, BELT PTO AND FORWARD DRIVE

$

$

Not available

Cub Cadet IH-490196-R1

WASHER, 13/32 X 1-1/4 X 7 GA C-Z
(Superseded to 936-3055)

$8.49

$

In Stock, only 2 left!

0

Cub Cadet IH-181650

BOLT, 3/8-24 X 2-1/2 ZND HEX-HD

$

$

Currently unavailable

30

Cub Cadet IH-124546

KEY, 5/32 X 5/8 WOODRUFF 6

$

$

Not available

31

Cub Cadet IH-549074-R1

ROD, BRAKE

$

$

Currently unavailable

Cub Cadet IH-103384

PIN, 1/8 X 3/4 COT.
(Superseded to 914-0474)

$

$

Not available

Cub Cadet IH-120393

WASHER, 11/32 X 11/16 X .065 C-Z
(Superseded to 936-0275)

$

$

Not available

Cub Cadet IH-120376

NUT, 5/16-18 HEX-HD
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-9411638

NUT, 5/16-18 CAD HEX LOCK

$

$

Currently unavailable

32

Cub Cadet IH-549075-R1

SPRING, BRAKE RETURN

$

$

Not available

33

Cub Cadet IH-549076-R1

SPRING, COMPRESSION

$

$

Currently unavailable

34

PULLEY, CENTER

Note: REFER TO MOWER MAIN FRAME AND KNIFE UNIT

$

$

Not available

35

Cub Cadet IH-57835-C1

SPRING, CLUTCH PEDAL

$

$

Not available

36

Cub Cadet IH-404651-R1

SPRING, ANTI RATTLE
(Superseded to 732-3031)

$

$

Not available

37

Cub Cadet IH-117322-C1

RETAINER, MOWER BELT

$

$

Not available

Cub Cadet IH-142619H

WASHER, .406 X .75 X .105 ZND
(Superseded to 936-0275)

$

$

Not available
