55-7800 - Toro Replacement Engine, Kawasaki Handle Assembly Parts Diagram

Replacement Engine, Kawasaki

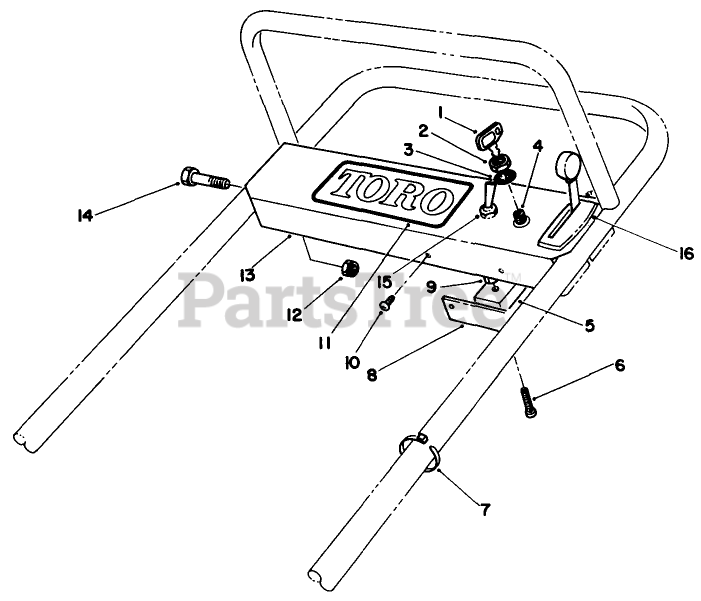

Handle Assembly Parts Diagram

  • Title

1

Toro 62-7770

KEY-IGNITION

$5.49

$

In Stock, Qty 10

0

2

Toro 218-461

NUT-HH

$3.99

$

In Stock, Qty 9

0

3

Toro 3254-5

WASHER-LOCK

$1.49

$

In Stock, Qty 8

0

4

Toro 29-5560

SWITCH-ON / OFF

$18.99

$

In Stock, only 2 left!

0

5

Toro 37-7600

RECTIFIER-BRIDGE

$28.99

$

Usually ships in 3-6 days

0

6

Toro 32105-13

SCREW-HWH

$1.99

$

Usually ships in 3-6 days

0

7

Toro 3290-379

TIE-CABLE

$0.99

$

In Stock, only 3 left!

0

8

Toro 57-5810

BOTTOM PANEL *B

$

$

Not available

9

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 9

0

10

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, only 4 left!

0

11

Toro 57-6310

DISCONTINUED

$

$

Not available

12

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 9

0

13

Toro 54-2860

DISCONTINUED
(Superseded to 74-0790)

$

$

Not available

14

Toro 32105-6

DISCONTINUED

$

$

Not available

15

Toro 37-2610

DISCONTINUED
(Superseded to 92-6328)

$

$

Not available

16

Toro 37-2610

DISCONTINUED
(Superseded to 92-6328)

$

$

Not available

Toro 5-1336

KEY-SQUARE

$11.99

$

In Stock, only 2 left!

0

Toro 55-3570

GAS CAP ASM

$15.99

$

In Stock, only 2 left!

0
