55-8450 - Toro Hour Meter Kit for Groundsmaster 117 DELUXE SUSPENSION SEAT KIT MODEL NO. 30756 (OPTIONAL) Parts Diagram

Hour Meter Kit for Groundsmaster 117

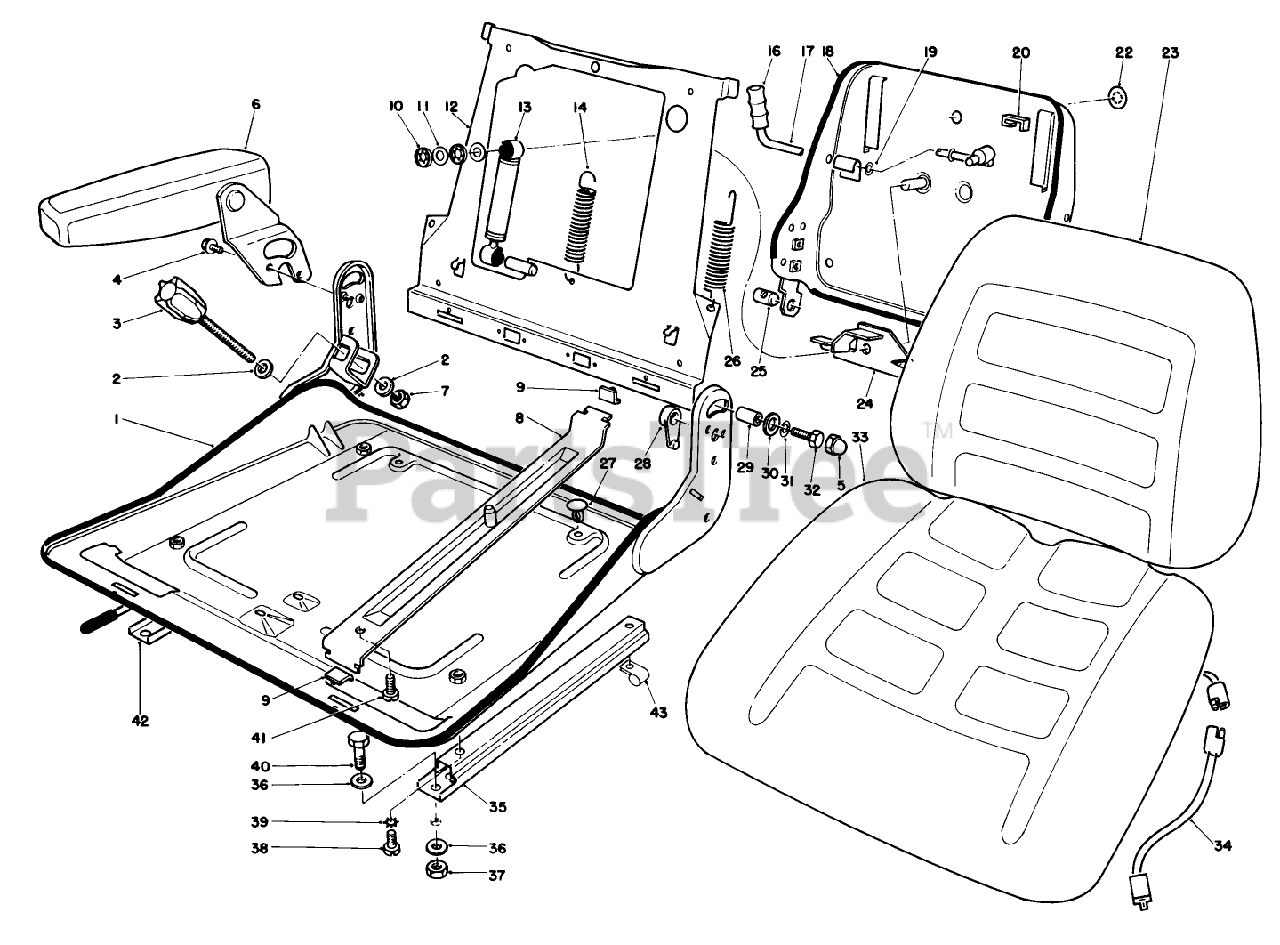

DELUXE SUSPENSION SEAT KIT MODEL NO. 30756 (OPTIONAL) Parts Diagram

  • Title

1

Toro 56-3810

Platform-Seat
(Superseded to 86-5260)

$

$

Not available

2

Toro 56-3880

WASHER

$

$

Not available

3

Toro 56-3870

KNOB

$42.99

$

Usually ships in 3-6 days

0

4

Toro 56-3850

SCREW

$

$

Not available

5

Toro 56-3960

COVER

$

$

Not available

6

Toro 55-4331

RH ARMREST ASM

$

$

Not available

Toro 55-4330

LH ARMREST ASM

Note: Not illustrated

$

$

Not available

7

Toro 56-3890

NUT

$

$

Not available

8

Toro 56-3970

Carrier-Seat
(Superseded to 92-1702)

$685.99

$

Usually ships in 3-6 days

0

9

Toro 56-3980

CLIP

$

$

Not available

10

Toro 56-4080

CLAMP

$

$

Not available

11

Toro 56-4090

Washer-Flat
(Superseded to 39-9500)

$

$

Not available

12

Toro 56-4040

Back Plate
(Superseded to 92-1702)

$685.99

$

Usually ships in 3-6 days

0

13

Toro 40-4320

SHOCK ABSORBER

$197.99

$

Usually ships in 3-6 days

0

14

Toro 56-4050

SPRING

$

$

Not available

16

Toro 56-4140

Cover-Grip
(Superseded to 56-4150)

$

$

Not available

17

Toro 56-4150

LEVER

$

$

Not available

18

Toro 56-3820

Cover-Seat Back
(Superseded to 86-5260)

$

$

Not available

19

Toro 56-4160

WASHER

$

$

Not available

20

Toro 56-4130

BUMPER

$

$

Not available

22

Toro 56-4120

COVER

$

$

Not available

23

Toro 56-3800

Cushion-Seat Back
(Superseded to 82-2800)

$538.99

$

Usually ships in 3-6 days

0

24

Toro 56-4100

LEVER

$

$

Not available

25

Toro 56-4170

PIN

$

$

Not available

26

Toro 56-4060

SPRING

$

$

Not available

27

Toro 56-4190

CAP

$

$

Not available

28

Toro 56-3900

SPACER

$

$

Not available

Toro 56-3910

SPACER

Note: Not illustrated

$

$

Not available

29

Toro 56-3920

BUSHING

$

$

Not available

30

Toro 56-3930

WASHER

$

$

Not available

31

Toro 56-3940

WASHER

$

$

Not available

32

Toro 56-3950

SCREW

$

$

Not available

33

Toro 56-3790

CUSHION

$

$

Not available

34

Toro 55-8380

JUMPER WIRE ASM

$21.99

$

Usually ships in 3-6 days

0

35

Toro 56-4000

Bottom Rail Assembly L.H.
(Superseded to 40-3820)

$453.99

$

Usually ships in 3-6 days

0

36

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

37

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

38

Toro 56-4020

SCREW

$

$

Not available

39

Toro 56-4030

WASHER

$

$

Not available

40

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

41

Toro 56-3990

SCREW

$

$

Not available

42

Toro 56-4010

Bottom Rail Assy. R.H.
(Superseded to 40-3790)

$338.99

$

Usually ships in 3-6 days

0

43

Toro 2412-67

CLAMP

$

$

Not available

Toro 55-8420

Seat Assembly (Incl. Ref. # 1-3,5,7-33,35,38-39 & 41-42)

Note: Not illustrated

$

$

Not available
