55 B21 HV (954223227-A) - Husqvarna Walk-Behind Mower (2003-09) Handle & Bag Assembly Parts Diagram

Walk-Behind Mower

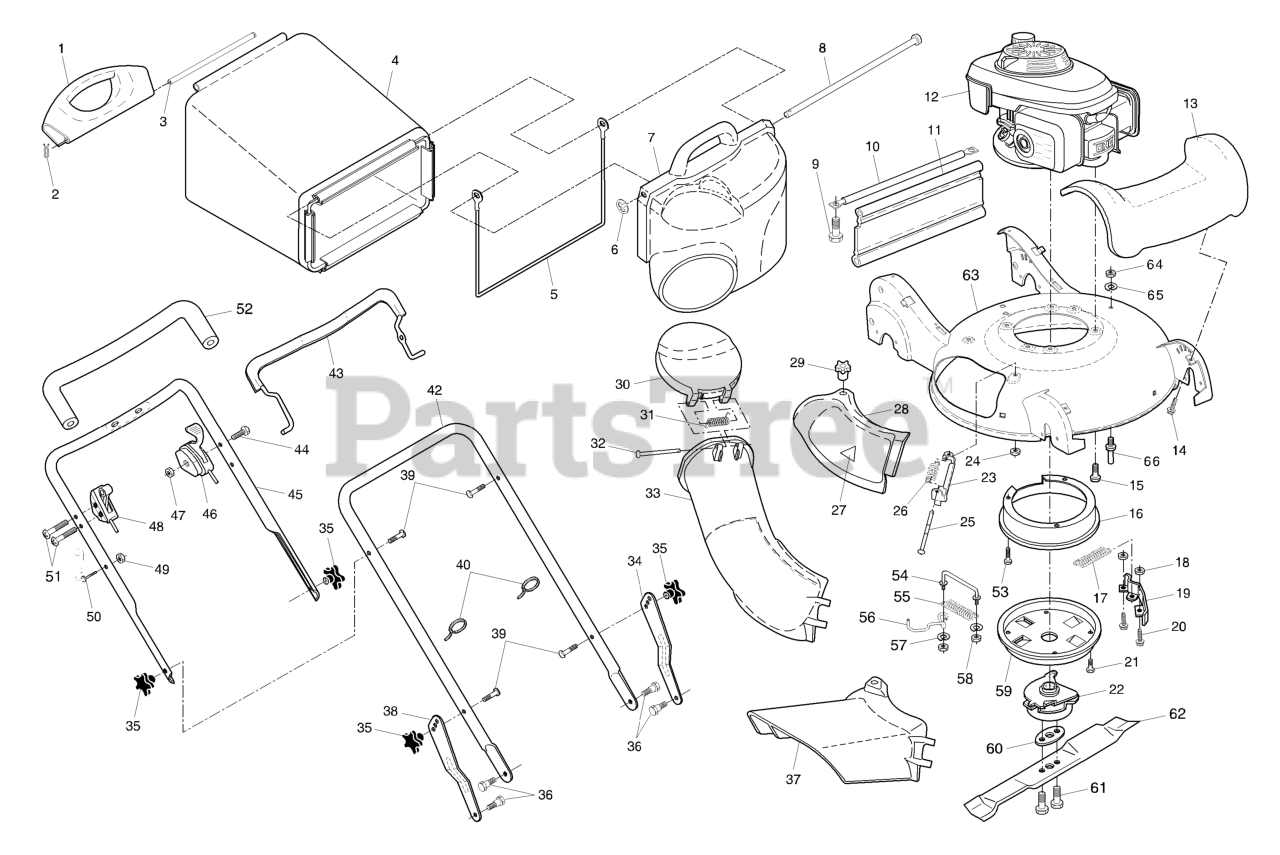

Handle & Bag Assembly Parts Diagram

  • Title

1

Husqvarna 532186003

HANDLE, GRASSBAG, REAR
(Superseded to 532188505)

$28.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532065322

COTTER PIN (3 2)(2 2MC)

$

$

Not available

3

Husqvarna 532183483

ROD.REAR.HANDLE.YELLOW

$5.99

$

Usually ships in 3-10 days

0

4

Husqvarna 532185228

GRASSBAG
(Superseded to 532410670)

$79.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532183481

GRASSBAG FRAME
(Superseded to 532188506)

$28.99

$

In Stock, only 1 left!

0

6

Husqvarna 812000014

E-RING

$3.49

$

Usually ships in 3-10 days

0

7

Husqvarna 532186002

DOOR, GRASSBAG
(Superseded to 532188498)

$62.99

$

Usually ships in 3-10 days

0

8

Husqvarna 532183479

ROD, PIVOT

$17.99

$

Usually ships in 3-10 days

0

Husqvarna 532186302

GRASS BAG ASSY
(Superseded to 532431754)

Note: (Consists of Key Numbers 1-8)

$

$

Not available

9

Husqvarna 817411318

SCREW.HWH.13-16X1.12

$3.49

$

Usually ships in 3-10 days

0

10

Husqvarna 532184331

TUBE

$

$

Not available

11

Husqvarna 532183463

SKIRT.REAR.21".HI-VAC.BLACK

$

$

Not available

12

Engine, Honda, Model Number GCV160

Note: (Order parts from Engine Manufacturer)

$

$

Not available

13

Husqvarna 532183770

COVER, FRONT
(Superseded to 586531501)

$

$

Not available

14

Husqvarna 532184572

SCREW
(Superseded to 532194189)

$4.99

$

In Stock, Qty 20+

0

15

Husqvarna 532150406

BOLT 3/8-16X1-1/8

$5.99

$

In Stock, Qty 12

0

16

Husqvarna 532180459

BLADE.21".BBC

$26.99

$

In Stock, only 2 left!

0

17

Husqvarna 532180393

SPRING.BBC

$7.99

$

In Stock, Qty 8

0

18

Husqvarna 873900400

NUT T
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

19

Husqvarna 532187492

Brake, Clutch

$

$

Not available

20

Husqvarna 874780410

BOLT
(Superseded to 596582501)

$3.49

$

Usually ships in 3-10 days

0

21

Husqvarna 532750097

TAPPING SCREW
(Superseded to 817021008)

$3.99

$

In Stock, Qty 20+

0

22

Blade Brake / Clutch

Note: (Order parts from Engine Manufacturer)

$

$

Not available

23

Husqvarna 532183609

BRACKET.ASM.HINGE

$

$

Not available

24

Husqvarna 532751152

LOCK NUT
(Superseded to 532191730)

$3.99

$

In Stock, only 4 left!

0

25

Husqvarna 532183445

ROD.HINGE.1/4"3.82"

$6.99

$

Usually ships in 3-10 days

0

26

Husqvarna 532183446

SPRING.MULCH.DOOR

$5.99

$

In Stock, only 2 left!

0

27

Husqvarna 532107339

DECAL HYT
(Superseded to 581579101)

$3.49

$

Usually ships in 3-10 days

0

28

Husqvarna 532185995

MULCH DOOR
(Superseded to 532188010)

$

$

Not available

29

Husqvarna 532183447

KNOB.MULCH.DOOR

$

$

Not available

30

Husqvarna 532186001

DOOR, DICHSRGE CHUTE
(Superseded to 532188499)

$17.99

$

Usually ships in 3-10 days

0

31

Husqvarna 532183478

SPRING

$7.99

$

In Stock, only 1 left!

0

32

Husqvarna 532183445

ROD.HINGE.1/4"3.82"

$6.99

$

Usually ships in 3-10 days

0

33

Husqvarna 532186000

PLASTIC DISCHARGE CHUTE
(Superseded to 532188504)

$

$

Not available

33

Husqvarna 532186301

CHUTE ASSY
(Superseded to 532189014)

Note: (Consists of Key Numbers 30-33)

$

$

Not available

34

Husqvarna 532187425

BRACKET
(Superseded to 532187063)

$

$

Not available

35

Husqvarna 532185588

KNOB.HANDLE.STAR.HUSQ.GRAY

$

$

Not available

36

Husqvarna 532183465

SHOULDER BOLT
(Superseded to 532194187)

$

$

Not available

37

Husqvarna 532185996

GUARD.CLIP.ON.21.HV.GRAY

$

$

Not available

38

Husqvarna 532187426

BRACKET ADJ LOWER HNDLE RH
(Superseded to 532187064)

$

$

Not available

39

Husqvarna 532184568

HANDLE BOLT
(Superseded to 532191574)

$6.99

$

In Stock, Qty 20+

0

40

Husqvarna 532066426

TIE GUIDE
(Superseded to 532007192)

$9.49

$

Usually ships in 3-10 days

0

42

Husqvarna 532187096

HANDLE.LOWER.GREY

$39.99

$

Usually ships in 3-10 days

0

43

Husqvarna 532186299

BAIL
(Superseded to 583754701)

$

$

Not available

44

Husqvarna 532187499

SCREW

$

$

Not available

45

Husqvarna 532186296

HANDLE.ASM.UPPER.W/GRIP

Note: (Includes Foam Grip)

$

$

Not available

46

Husqvarna 532183707

BLADE BRAKE CONTROL
(Superseded to 532196541)

$62.99

$

In Stock, only 3 left!

0

47

Husqvarna 532184569

HEX NUT

$

$

Not available

48

Husqvarna 532185779

THROTTLE
(Superseded to 532192077)

$51.99

$

Usually ships in 3-10 days

0

49

Husqvarna 532184569

HEX NUT

$

$

Not available

50

Husqvarna 532183469

ROPE GUIDE

$

$

Not available

51

Husqvarna 532183449

SCREW.1/4X20X1.12
(Superseded to 583608401)

$

$

Not available

52

Husqvarna 532182748

GRIP.HANDLE.FOAM.WIDE.(1 SIDE)

$

$

Not available

53

Husqvarna 532150408

MANUAL OPERATORS FRENCH

$

$

Not available

54

Husqvarna 532180188

LINK.TORQUE.BBC

$

$

Not available

55

Husqvarna 532180394

SPRING.LINK.BBC

$4.99

$

Usually ships in 3-10 days

0

56

Husqvarna 532186130

GUIDE, BELT

$

$

Not available

57

Husqvarna 532053998

WASHER

$

$

Not available

58

Husqvarna 873510600

NUT

$

$

Not available

59

Husqvarna 532183610

BELT COVER

$

$

Not available

60

Husqvarna 532185046

SPACER

$

$

Not available

61

Husqvarna 532186291

BOLT.BLADE.BBC

$9.49

$

Usually ships in 3-10 days

0

62

Husqvarna 532180459

BLADE.21".BBC

$26.99

$

In Stock, only 2 left!

0

63

Husqvarna 532186957

HOUSING KIT

$

$

Not available

64

Husqvarna 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$1.49

$

In Stock, Qty 20+

0

65

Husqvarna 532850263

LOCKWASHER
(Superseded to 539990118)

$3.99

$

In Stock, Qty 20+

0

66

Husqvarna 532182131

STUC.GUIDE.BELT.RWGD

$22.99

$

Usually ships in 3-10 days

0

Husqvarna 532162300

WARNING DECAL
(Superseded to 530402152)

Note: (Not shown)

$

$

Not available

Husqvarna 532186304

55B21HVA MANUAL ENG/FRN

$

$

Not available
