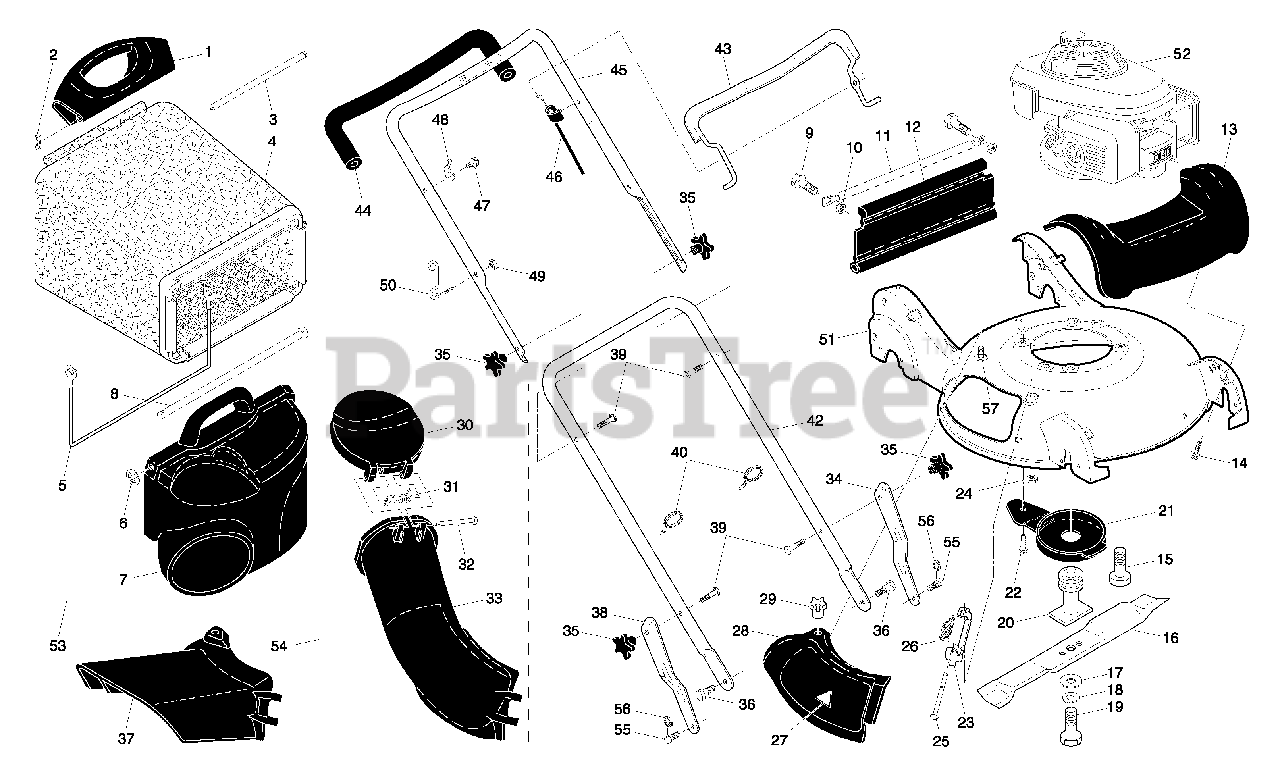

55 R21 HV (961430005-01) - Husqvarna Walk-Behind Mower (2005-02) Handle & Deck Assembly Parts Diagram

Walk-Behind Mower

Handle & Deck Assembly Parts Diagram

  • Title

1

Husqvarna 532190582

Handle, Grassbag, Rear

$

$

Not available

2

Husqvarna 532065322

Hairpin Cotter

$

$

Not available

3

Husqvarna 532183483

Rod, Rear Handle, Grassbag

$5.99

$

In Stock, only 1 left!

0

4

Husqvarna 532194736

Grassbag

$

$

Not available

5

Husqvarna 532188506

Frame, Grassbag

$28.99

$

In Stock, only 1 left!

0

6

Husqvarna 812000014

E-Ring

$3.49

$

In Stock, Qty 5

0

7

Husqvarna 532190581

Door, Grassbag
(Superseded to 532188498)

$62.99

$

Usually ships in 3-10 days

0

8

Husqvarna 532183479

Rod, Pivot

$17.99

$

Usually ships in 3-10 days

0

9

Husqvarna 872140405

Bolt

$3.99

$

In Stock, Qty 7

0

10

Husqvarna 873800400

Nut, Hex
(Superseded to 539976978)

$2.49

$

In Stock, Qty 20+

0

11

Husqvarna 532190692

Tube, Rear Skirt
(Superseded to 532188359)

$

$

Not available

12

Husqvarna 532196474

Skirt, Rear
(Superseded to 532190815)

$20.99

$

Usually ships in 3-10 days

0

13

Husqvarna 532190519

Cover, Front
(Superseded to 586531501)

$

$

Not available

14

Husqvarna 532184572

Screw, Hex Washer Head
(Superseded to 532194189)

$4.99

$

In Stock, Qty 20+

0

15

Husqvarna 532150406

Bolt, Engine Mounting

$5.99

$

In Stock, only 2 left!

0

16

Husqvarna 532189028

Blade, 21"

$22.99

$

In Stock, only 3 left!

0

17

Husqvarna 532851074

Washer, Hardened

$4.99

$

In Stock, Qty 20+

0

18

Husqvarna 532850263

Washer, Lock
(Superseded to 539990118)

$3.99

$

In Stock, Qty 20+

0

19

Husqvarna 532191760

Screw, Hex Head, Grade 8

$6.99

$

In Stock, only 1 left!

0

20

Husqvarna 532186766

Adapter, Blade

$37.99

$

In Stock, only 1 left!

0

21

Husqvarna 532190516

Debris Shield
(Superseded to 532188510)

$

$

Not available

22

Husqvarna 817600406

Screw, Hex Head, Serrated

$3.49

$

In Stock, only 2 left!

0

23

Husqvarna 532183609

Mounting Bracket, Mulcher Door

$

$

Not available

24

Husqvarna 532751152

Nut, Hex
(Superseded to 532191730)

$3.99

$

In Stock, Qty 6

0

25

Husqvarna 532183445

Rod, Hinge

$6.99

$

Usually ships in 3-10 days

0

26

Husqvarna 532183446

Spring, Mulcher Door

$5.99

$

In Stock, only 3 left!

0

27

Husqvarna 532107339

Decal, Danger
(Superseded to 581579101)

$3.49

$

Usually ships in 3-10 days

0

28

Husqvarna 532190515

Mulcher Door
(Superseded to 532188507)

$

$

Not available

29

Husqvarna 532183447

Knob

$

$

Not available

30

Husqvarna 532190580

Door, Discharge Chute

$17.99

$

In Stock, only 1 left!

0

31

Husqvarna 532183478

Spring, Door, Discharge Chute

$7.99

$

In Stock, only 1 left!

0

32

Husqvarna 532183445

Rod, Door, Discharge Chute

$6.99

$

Usually ships in 3-10 days

0

33

Husqvarna 532190578

Discharge Chute, Plastic
(Superseded to 532188504)

$

$

Not available

34

Husqvarna 532190619

Adjustment Bracket, Lower Handle, LH
(Superseded to 532187063)

$

$

Not available

35

Husqvarna 532185588

Knob, Star

$

$

Not available

36

Husqvarna 532183465

Bolt, Shoulder
(Superseded to 532194187)

$

$

Not available

37

Husqvarna 532185996

Deflector, Discharge

$

$

Not available

38

Husqvarna 532190621

Adjustment Bracket, Lower Handle, RH

$

$

Not available

39

Husqvarna 532191574

Bolt, Handle

$6.99

$

In Stock, Qty 20+

0

40

Husqvarna 532066426

Wire Tie
(Superseded to 532007192)

$9.49

$

Usually ships in 3-10 days

0

42

Husqvarna 532187096

Handle Assembly, Lower

$39.99

$

Usually ships in 3-10 days

0

43

Husqvarna 532186298

Bail, Control
(Superseded to 532426812)

$

$

Not available

44

Husqvarna 532182748

Grip, Foam

$

$

Not available

45

Husqvarna 532186296

Handle Assembly, Upper

Note: (Includes Foam Grip)

$

$

Not available

46

Husqvarna 532164322

Cable, Engine Zone Control
(Superseded to 532424983)

$20.99

$

In Stock, only 4 left!

0

47

Husqvarna 532750634

Screw

$3.49

$

In Stock, only 4 left!

0

48

Husqvarna 532125203

Bracket, Upstop
(Superseded to 532086899)

$6.99

$

In Stock, only 2 left!

0

49

Husqvarna 532132004

Nut, Hex 1/4-20
(Superseded to 539976978)

$2.49

$

In Stock, Qty 20+

0

50

Husqvarna 532188501

Rope Guide

$

$

Not available

51

Husqvarna 532189792

Kit, Housing
(Superseded to 532197562)

$

$

Not available

52

Engine, Honda, Model Number GCV160

Note: (For engine service and replacement parts, call Honda at 1-800-426-7701)

$

$

Not available

53

Husqvarna 532194735

Grassbag Assembly, Complete
(Superseded to 532431754)

Note: (Consists of Key Numbers 1-8)

$

$

Not available

54

Husqvarna 532189014

Discharge Chute Assembly, Complete

Note: (Consists of Key Numbers 30 through 33)

$

$

Not available

55

Husqvarna 532188628

Stud, Shoulder, T45
(Superseded to 532194192)

$5.99

$

In Stock, only 2 left!

0

56

Husqvarna 812000058

E-Ring, T45

$3.49

$

In Stock, Qty 12

0

57

Husqvarna 532188634

Stud, Threaded 1/4-20 x 5/8

$

$

Not available

Husqvarna 532162300

Decal, Warning
(Superseded to 530402152)

Note: (not shown)

$

$

Not available

Husqvarna 532196817

Owner's Manual, English / French

$

$

Currently unavailable
