55 R21 HVL (961450001-00) - Husqvarna Walk-Behind Mower (2004-11) Gear Case Assembly 532188294 Parts Diagram

Walk-Behind Mower

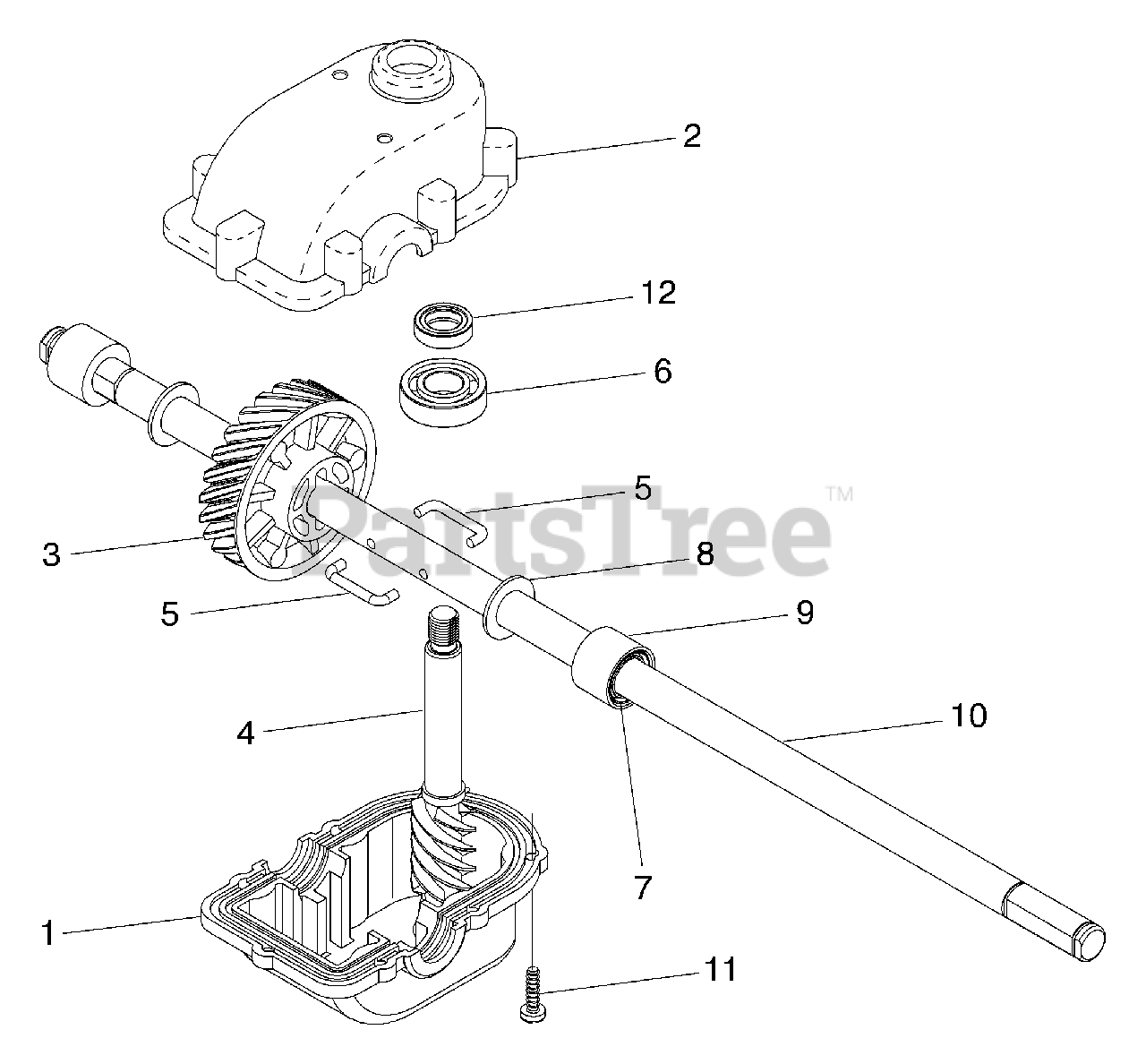

Gear Case Assembly 532188294 Parts Diagram

  • Title

1

Husqvarna 532187530

Case, Lower

$11.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532191245

Case, Upper

$11.99

$

Usually ships in 3-10 days

0

3

Husqvarna 532187532

Gear, 24 Teeth

$14.99

$

Usually ships in 3-10 days

0

4

Husqvarna 532191246

Shaft, Worm

$43.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532183505

Wireform

$6.99

$

Usually ships in 3-10 days

0

6

Husqvarna 532183506

Bearing, Ball

$8.99

$

Usually ships in 3-10 days

0

7

Husqvarna 532183508

Seal, Output Shaft

$11.99

$

In Stock, Qty 7

0

8

Husqvarna 532183509

Washer

$

$

Not available

9

Husqvarna 532183511

Bushing

$

$

Not available

10

Husqvarna 532191247

Shaft, Output

$85.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532183513

Screw

$5.99

$

Usually ships in 3-10 days

0

12

Husqvarna 532183514

Seal, Worm Shaft

$7.99

$

In Stock, only 1 left!

0

Husqvarna 532750369

Grease, Texaco Starplex Premium
(Superseded to 585517301)

Note: (Do not substitute) (1.4 ounce capacity)

$

$

Not available

Husqvarna 532188294

Gear Case Assembly

$170.99

$

Usually ships in 3-10 days

0
