55 R21 HVL (961450001-01) - Husqvarna Walk-Behind Mower (2005-02) Handle & Deck Assembly Parts Diagram

Walk-Behind Mower

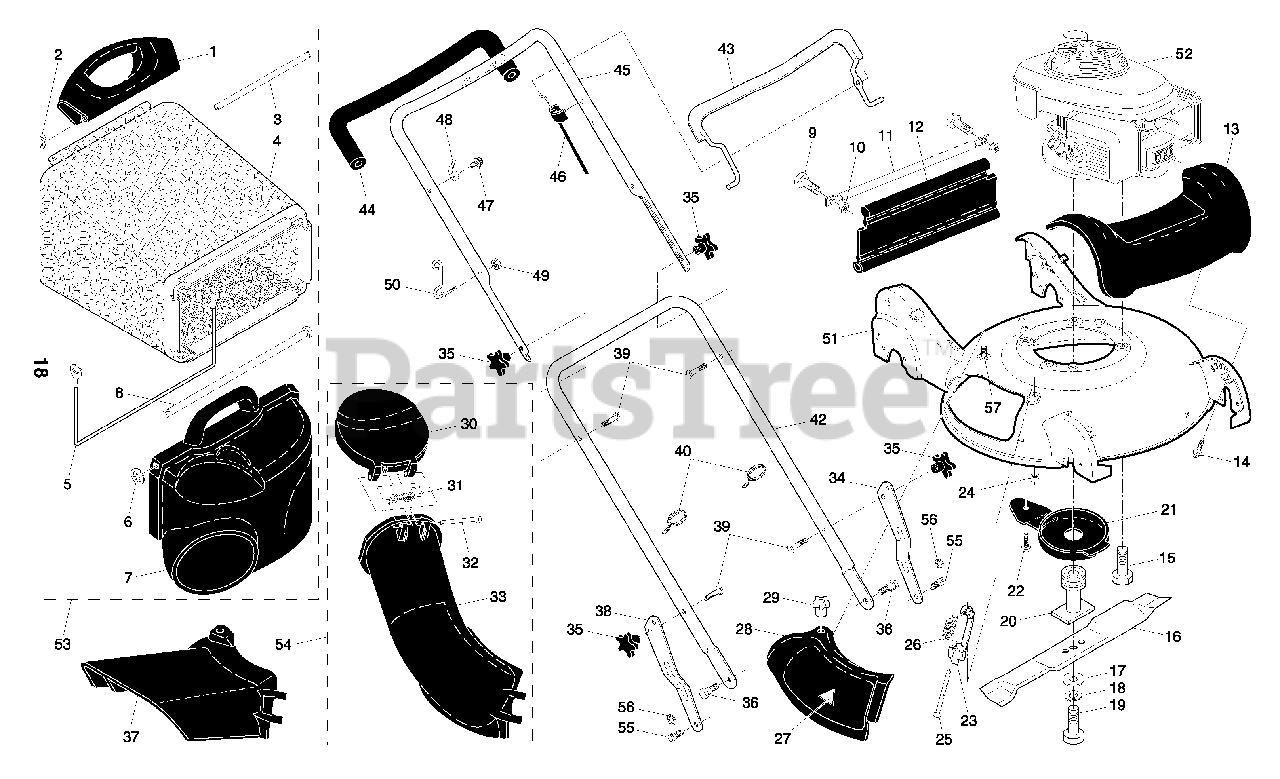

Handle & Deck Assembly Parts Diagram

  • Title

1

Husqvarna 532190582

Handle, Grassbag, Rear

$

$

Not available

2

Husqvarna 532065322

Hairpin Cotter

$4.99

$

In Stock, only 1 left!

0

3

Husqvarna 532183483

Rod, Rear Handle, Grassbag

$6.49

$

In Stock, only 1 left!

0

4

Husqvarna 532194865

Grassbag

$109.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532188506

Frame, Grassbag

$27.99

$

In Stock, only 1 left!

0

6

Husqvarna 812000014

E-Ring

$7.49

$

In Stock, only 2 left!

0

7

Husqvarna 532190581

Door, Grassbag
(Superseded to 532188498)

$50.99

$

In Stock, only 1 left!

0

8

Husqvarna 532183479

Rod, Pivot

$15.99

$

Usually ships in 3-10 days

0

9

Husqvarna 872140405

Bolt

$7.49

$

In Stock, Qty 8

0

10

Husqvarna 873800400

Nut, Hex
(Superseded to 595086601)

$3.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532190692

Tube, Rear Skirt
(Superseded to 532188359)

$34.99

$

Usually ships in 3-10 days

0

12

Husqvarna 532196474

Skirt, Rear
(Superseded to 532190815)

$18.99

$

In Stock, only 1 left!

0

13

Husqvarna 532190519

Cover, Front
(Superseded to 586531501)

$

$

Not available

14

Husqvarna 532184572

Screw, Hex Washer Head
(Superseded to 532194189)

$7.49

$

In Stock, Qty 20+

0

15

Husqvarna 532150406

Bolt, Engine Mounting

$7.49

$

In Stock, Qty 10

0

16

Husqvarna 532189028

Blade, 21"

$14.99

$

In Stock, Qty 19

0

17

Husqvarna 532851074

Washer, Hardened

$4.99

$

In Stock, Qty 20+

0

18

Husqvarna 532850263

Washer, Lock
(Superseded to 810040600)

$3.99

$

In Stock, Qty 20+

0

19

Husqvarna 532191760

Bolt, Hex Head, Grade 8, 3/8-24 x 2

$6.49

$

In Stock, only 1 left!

0

20

Husqvarna 532186766

Adapter, Blade

$40.99

$

In Stock, only 1 left!

0

21

Husqvarna 532190516

Debris Shield
(Superseded to 532188510)

$12.99

$

Usually ships in 3-10 days

0

22

Husqvarna 817600406

Screw, Hex Head, Serrated

$6.49

$

In Stock, Qty 5

0

23

Husqvarna 532183609

Mounting Bracket, Mulcher Door

$

$

Not available

24

Husqvarna 532751152

Nut, Hex
(Superseded to 532191730)

$7.49

$

In Stock, Qty 8

0

25

Husqvarna 532183445

Rod, Hinge

$7.49

$

In Stock, only 1 left!

0

26

Husqvarna 532183446

Spring, Mulcher Door

$7.49

$

In Stock, only 4 left!

0

27

Husqvarna 532107339

Decal, Danger
(Superseded to 581579101)

$7.49

$

Usually ships in 3-10 days

0

28

Husqvarna 532190515

Mulcher Door
(Superseded to 532188507)

$

$

Not available

29

Husqvarna 532183447

Knob

$

$

Not available

30

Husqvarna 532190580

Door, Discharge Chute

$7.99

$

In Stock, only 1 left!

0

31

Husqvarna 532183478

Spring, Door, Discharge Chute

$4.99

$

In Stock, only 1 left!

0

32

Husqvarna 532183445

Rod, Door, Discharge Chute

$7.49

$

In Stock, only 1 left!

0

33

Husqvarna 532190578

Discharge Chute, Plastic
(Superseded to 532188504)

$

$

Not available

34

Husqvarna 532187425

Adjustment Bracket, Lower Handle, LH
(Superseded to 532187063)

$

$

Not available

35

Husqvarna 532185588

Knob, Star

$7.49

$

In Stock, Qty 5

0

36

Husqvarna 532183465

Bolt, Shoulder
(Superseded to 532194187)

$7.49

$

In Stock, Qty 5

0

37

Husqvarna 532185996

Deflector, Discharge

$26.99

$

Usually ships in 3-10 days

0

38

Husqvarna 532187426

Adjustment Bracket, Lower Handle, RH
(Superseded to 532187064)

$

$

Not available

39

Husqvarna 532191574

Bolt, Handle

$3.99

$

In Stock, Qty 20+

0

40

Husqvarna 532066426

Wire Tie
(Superseded to 532124756)

$6.49

$

Usually ships in 3-10 days

0

42

Husqvarna 532187096

Handle Assembly, Lower

$24.99

$

Usually ships in 3-10 days

0

43

Husqvarna 532186298

Bail, Control
(Superseded to 532426812)

$

$

Not available

44

Husqvarna 532182748

Grip, Foam

$

$

Not available

45

Husqvarna 532186296

Handle Assembly, Upper

Note: (Includes Foam Grip)

$54.99

$

Usually ships in 3-10 days

0

46

Husqvarna 532164322

Cable, Engine Zone Control
(Superseded to 532424983)

$17.99

$

In Stock, Qty 20+

0

47

Husqvarna 532750634

Screw

$6.49

$

In Stock, Qty 6

0

48

Husqvarna 532125203

Bracket, Upstop
(Superseded to 532430034)

$6.49

$

In Stock, Qty 8

0

49

Husqvarna 532132004

Nut, Hex 1/4-20
(Superseded to 873800400)

$3.99

$

Usually ships in 3-10 days

0

50

Husqvarna 532188501

Rope Guide

$15.99

$

Usually ships in 3-10 days

0

51

Husqvarna 532189792

Kit, Housing
(Superseded to 532197562)

$

$

Not available

52

Engine, Honda, Model Number GCV160

Note: (For engine service and replacement parts, call Honda at 1-800-426-7701)

$

$

Not available

53

Husqvarna 532194866

Grassbag Assembly, Complete
(Superseded to 532431754)

$182.99

$

Usually ships in 3-10 days

0

54

Husqvarna 532189014

Discharge Chute Assembly, Complete

$40.99

$

Usually ships in 3-10 days

0

55

Husqvarna 532188628

Stud, Shoulder, T45
(Superseded to 532194192)

$6.49

$

Usually ships in 3-10 days

0

56

Husqvarna 812000058

E-Ring, T45

$3.99

$

In Stock, Qty 20+

0

57

Husqvarna 532188634

Stud

$

$

Not available

Husqvarna 532162300

Decal, Warning
(Superseded to 530402152)

Note: (not shown)

$1.49

$

Usually ships in 3-10 days

0

Husqvarna 532195905

Owner's Manual, English / French

$

$

Currently unavailable
