55 R21 HVL (961450001-03) - Husqvarna Walk-Behind Mower (2005-01) Handle & Deck Assembly Parts Diagram

Walk-Behind Mower

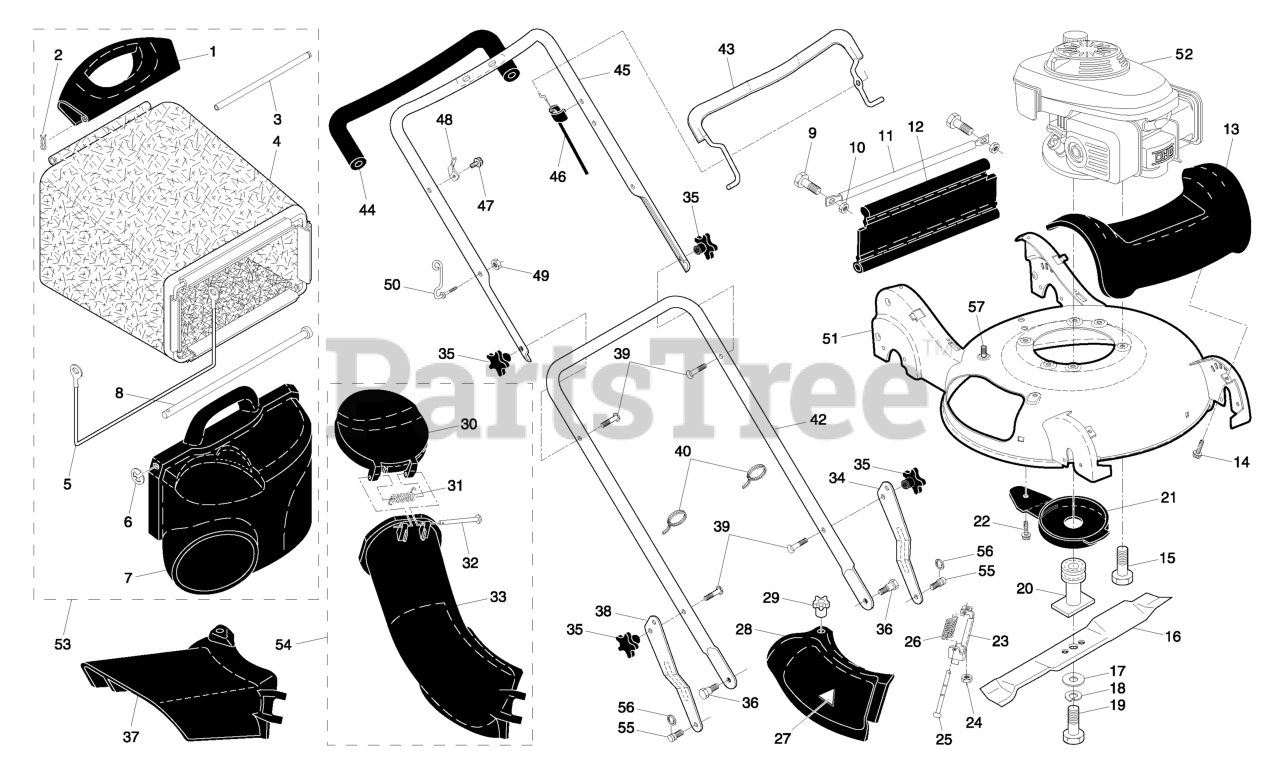

Handle & Deck Assembly Parts Diagram

  • Title

1

Husqvarna 532190582

HANDLE.GRASSBAG.REAR.H-GRAY

$

$

Not available

2

Husqvarna 532065322

COTTER PIN (3 2)(2 2MC)

$

$

Not available

3

Husqvarna 532183483

ROD.REAR.HANDLE.YELLOW

$5.99

$

Usually ships in 3-10 days

0

4

Husqvarna 532194865

GBAG.5211247.SILVER

$193.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532188506

FRAME, GRASSBAG

$28.99

$

In Stock, only 1 left!

0

6

Husqvarna 812000014

E-RING

$3.49

$

Usually ships in 3-10 days

0

7

Husqvarna 532190581

DOOR, GRASSBAG
(Superseded to 532188498)

$62.99

$

Usually ships in 3-10 days

0

8

Husqvarna 532183479

ROD, PIVOT

$17.99

$

Usually ships in 3-10 days

0

9

Husqvarna 872140405

BOLT T

$3.99

$

In Stock, Qty 6

0

10

Husqvarna 873800400

LOCKNUT.NYLOC.1/4-20
(Superseded to 539976978)

$2.49

$

In Stock, Qty 20+

0

11

Husqvarna 532190692

TUBE, REAR SKIRT
(Superseded to 532188359)

$

$

Not available

12

Husqvarna 532196474

SKIRT.REAR.21 " HI-VAC
(Superseded to 532190815)

$20.99

$

Usually ships in 3-10 days

0

13

Husqvarna 532190519

COVER, FRONT
(Superseded to 586531501)

$

$

Not available

14

Husqvarna 532184572

SCREW
(Superseded to 532194189)

$4.99

$

In Stock, Qty 20+

0

15

Husqvarna 532150406

BOLT 3/8-16X1-1/8

$5.99

$

In Stock, Qty 12

0

16

Husqvarna 532189028

BLADE.21.PUSH/RWGD/FWG

$22.99

$

In Stock, Qty 9

0

17

Husqvarna 532851074

WASHER,HARDEN

$4.99

$

In Stock, Qty 20+

0

18

Husqvarna 532850263

LOCKWASHER
(Superseded to 539990118)

$3.99

$

In Stock, Qty 20+

0

19

Husqvarna 532191760

BOLT.HD.HEAD.3/8-24X2.50 (2 2)

$6.99

$

In Stock, only 1 left!

0

20

Husqvarna 532186766

ADAPTER.BLADE

$37.99

$

In Stock, only 1 left!

0

21

Husqvarna 532190516

DEBRIS SHEILD
(Superseded to 532188510)

$

$

Not available

22

Husqvarna 817600406

SCREW 1/4X20

$3.49

$

In Stock, only 2 left!

0

23

Husqvarna 532183609

BRACKET.ASM.HINGE

$

$

Not available

24

Husqvarna 532751152

LOCK NUT
(Superseded to 532191730)

$3.99

$

In Stock, only 4 left!

0

25

Husqvarna 532183445

ROD.HINGE.1/4"3.82"

$6.99

$

Usually ships in 3-10 days

0

26

Husqvarna 532183446

SPRING.MULCH.DOOR

$5.99

$

In Stock, only 2 left!

0

27

Husqvarna 532107339

DECAL HYT
(Superseded to 581579101)

$3.49

$

Usually ships in 3-10 days

0

28

Husqvarna 532190515

MULCHER DOOR
(Superseded to 532188507)

$

$

Not available

29

Husqvarna 532183447

KNOB.MULCH.DOOR

$

$

Not available

30

Husqvarna 532190580

CHUTE.DOOR.21.HV.H-GRAY

$17.99

$

Usually ships in 3-10 days

0

31

Husqvarna 532183478

SPRING

$7.99

$

In Stock, only 1 left!

0

32

Husqvarna 532183445

ROD.HINGE.1/4"3.82"

$6.99

$

Usually ships in 3-10 days

0

33

Husqvarna 532190578

DISCHARGE CHUTE PLASTIC
(Superseded to 532188504)

$

$

Not available

34

Husqvarna 532187425

BRACKET
(Superseded to 532187063)

$

$

Not available

35

Husqvarna 532185588

KNOB.HANDLE.STAR.HUSQ.GRAY

$

$

Not available

36

Husqvarna 532183465

SHOULDER BOLT
(Superseded to 532194187)

$

$

Not available

37

Husqvarna 532185996

GUARD.CLIP.ON.21.HV.GRAY

$

$

Not available

38

Husqvarna 532187426

BRACKET ADJ LOWER HNDLE RH
(Superseded to 532187064)

$

$

Not available

39

Husqvarna 532191574

BOLT, HANDLE 5/16-18X1.75

$6.99

$

In Stock, Qty 20+

0

40

Husqvarna 532066426

TIE GUIDE
(Superseded to 532007192)

$9.49

$

Usually ships in 3-10 days

0

42

Husqvarna 532187096

HANDLE.LOWER.GREY

$39.99

$

Usually ships in 3-10 days

0

43

Husqvarna 532186298

BAIL CONTROL
(Superseded to 532426812)

$

$

Not available

44

Husqvarna 532182748

GRIP.HANDLE.FOAM.WIDE.(1 SIDE)

$

$

Not available

45

Husqvarna 532186296

HANDLE.ASM.UPPER.W/GRIP

Note: (Includes Foam Grip)

$

$

Not available

46

Husqvarna 532164322

RB ENGINE ZONE CONTROL CABLE
(Superseded to 532424983)

$20.99

$

In Stock, Qty 20+

0

47

Husqvarna 532750634

SCREW

$3.49

$

Usually ships in 3-10 days

0

48

Husqvarna 532125203

BRACKET
(Superseded to 532086899)

$6.99

$

Usually ships in 3-10 days

0

49

Husqvarna 532132004

NUT
(Superseded to 539976978)

$2.49

$

In Stock, Qty 20+

0

50

Husqvarna 532188501

GUIDE.ROPE.WALK.MOWER

$

$

Not available

51

Husqvarna 532189792

KIT.HSG.ASM.21".HV.ORNG
(Superseded to 532197562)

$

$

Not available

52

Engine, Honda, Model Number GCV160

Note: (For engine service and replacement parts, call Honda at 1-800-426-7701)

$

$

Not available

53

Husqvarna 532194866

GBAG.ASM.HV'CROWN BLUE
(Superseded to 532431754)

Note: (Consists of Key Numbers 1-8)

$

$

Not available

54

Husqvarna 532189014

CHUTE.LOWER.ASM.WALK.MOWER

Note: (Consists of Key Numbers 30 through 33)

$

$

Not available

55

Husqvarna 532188628

STUD, SHOULDER
(Superseded to 532194192)

$5.99

$

In Stock, only 2 left!

0

56

Husqvarna 812000058

E-RING 7/16 RE

$3.49

$

In Stock, Qty 20+

0

Husqvarna 532162300

WARNING DECAL
(Superseded to 530402152)

Note: (not shown)

$

$

Not available

Husqvarna 532197092

MANUAL.O.96145000103.E

$

$

Not available
