55 RANCHER - Husqvarna Chainsaw (SN: 20101400001 & Above) CHAIN BRAKE & CLUTCH COVER Parts Diagram

Chainsaw

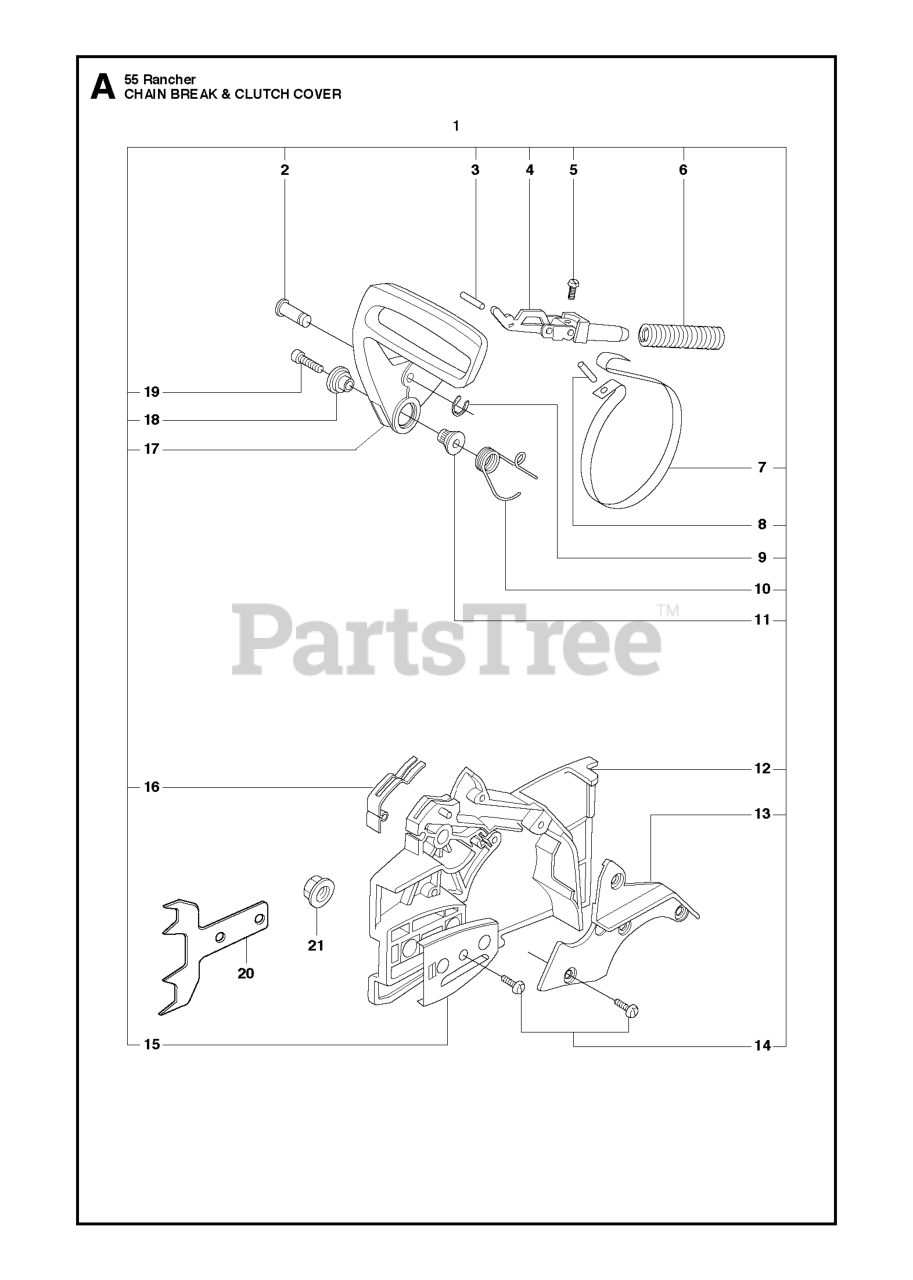

CHAIN BRAKE & CLUTCH COVER Parts Diagram

  • Title

6

Husqvarna 501875401

SPRING

$

$

Not available

19

Husqvarna 503202616

SCREW

$5.99

$

In Stock, Qty 7

0

20

Husqvarna 503523901

SPIKE

$

$

Not available

18

Husqvarna 501768001

PIVOT SLEEVE R

$9.99

$

In Stock, Qty 13

0

1

Husqvarna 503498103

CHAINBRAKE

$121.99

$

In Stock, only 3 left!

0

2

Husqvarna 503802701

PIVOT PIN

$9.49

$

In Stock, only 1 left!

0

8

Husqvarna 721425250

SPIRAL PIN 4X12

$5.99

$

In Stock, Qty 7

0

13

Husqvarna 501874202

COVER

$

$

Not available

17

Husqvarna 503892701

HAND GUARD

$62.99

$

In Stock, only 1 left!

0

3

Husqvarna 720123300

PIN 3X10

$5.99

$

In Stock, Qty 6

0

9

Husqvarna 735310820

E-RING 4

$4.99

$

In Stock, Qty 20+

0

12

Husqvarna 503493201

CLUTCH COVER

$

$

Not available

14

Husqvarna 503212810

SCREW

$3.99

$

In Stock, Qty 20+

0

15

Husqvarna 503152101

COVERING PLATE

$

$

Not available

21

Husqvarna 503220001

NUT M8 FLANGE

$3.99

$

In Stock, Qty 20+

0

11

Husqvarna 501768101

PIVOT SLEEVE L

$

$

Not available

10

Husqvarna 506164801

SPRING

$8.99

$

In Stock, only 2 left!

0

7

Husqvarna 503718701

BRAKE BAND

$17.99

$

In Stock, only 3 left!

0

4

Husqvarna 501875301

KNEE-JOINT

$37.99

$

Usually ships in 3-10 days

0

16

Husqvarna 501874701

SPRING

$7.99

$

In Stock, Qty 12

0

5

Husqvarna 503212810

SCREW

$3.99

$

In Stock, Qty 20+

0
