550 XP/XPG - Husqvarna Chainsaw (2014-01) CYLINDER PISTON Parts Diagram

Chainsaw

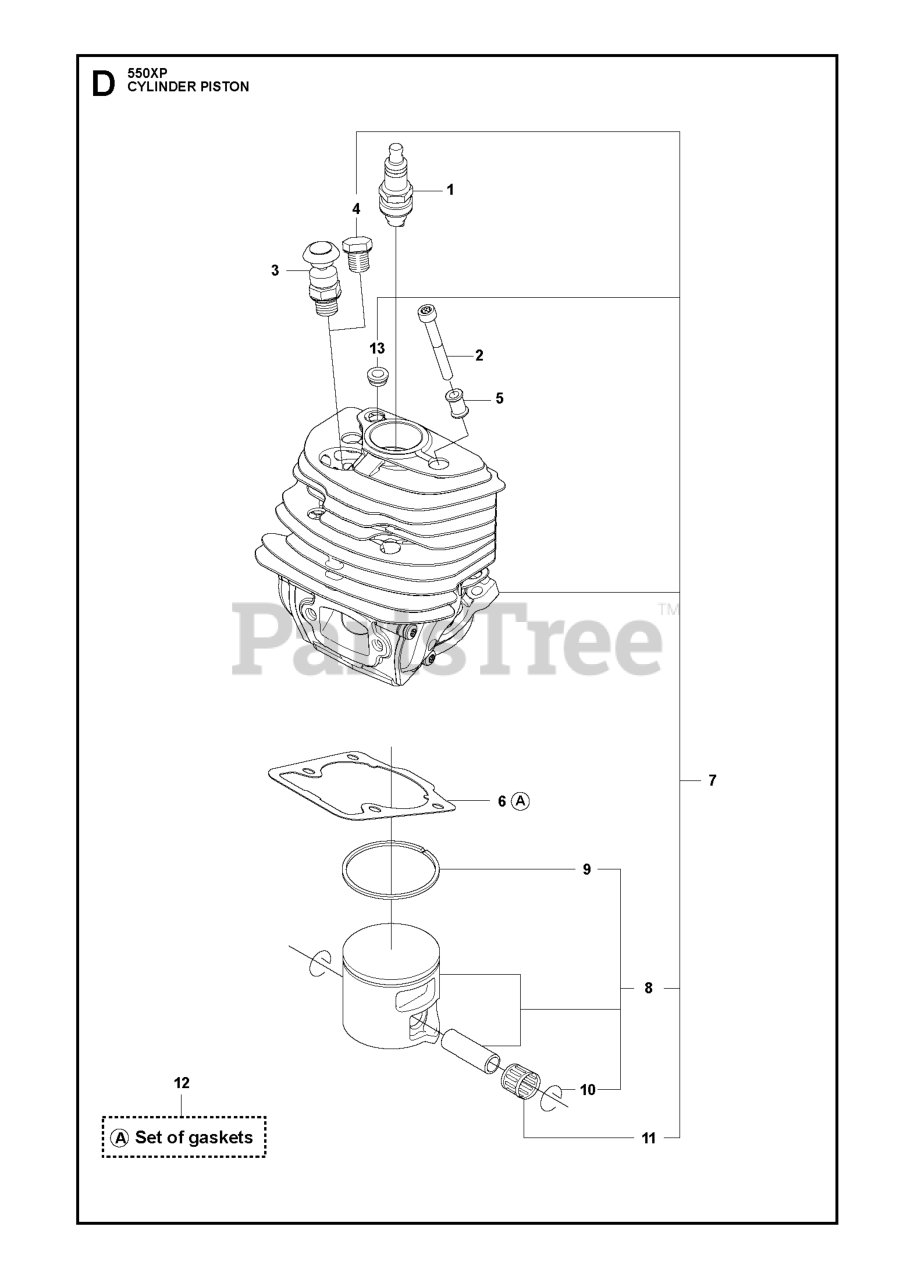

CYLINDER PISTON Parts Diagram

  • Title

10

Husqvarna 737441000

LOCKING RING

$3.49

$

In Stock, Qty 10

0

1

Husqvarna 574519601

CMR6H SPARK PLUG NGK
(Superseded to 531008615)

$5.99

$

In Stock, Qty 20+

0

12

Husqvarna 577766603

GASKET KIT 50CC

Note: A=Set of gaskets - Up to s/n 20181900169

$21.99

$

Usually ships in 3-10 days

0

5

Husqvarna 576717602

SLEEVE

$7.49

$

Usually ships in 3-10 days

0

2

Husqvarna 582392701

SCREW HEXABOULAR SOCKET HEAD C

$3.99

$

Usually ships in 3-10 days

0

9

Husqvarna 577958301

PISTON RING

$23.99

$

In Stock, only 2 left!

0

11

Husqvarna 503256302

SUPPORT BUSHING

$28.99

$

In Stock, only 3 left!

0

13

Husqvarna 520291101

BUSHING

$5.99

$

Usually ships in 3-10 days

0

7

Husqvarna 577764707

CYLINDER ASSY WITH PISTON H550

$239.99

$

Usually ships in 3-10 days

0

4

Husqvarna 503552201

CYLINDER PLUG

$12.99

$

In Stock, only 3 left!

0

8

Husqvarna 577047008

PISTON ASSY D43

$131.99

$

Usually ships in 3-10 days

0

3

Husqvarna 575276901

DECOMPRESSION VALVE

$34.99

$

In Stock, only 2 left!

0

12

Husqvarna 577766604

GASKET KIT 50CC

Note: A=Set of gaskets From s/n 20181900170

$23.99

$

Usually ships in 3-10 days

0

6

Husqvarna 525315801

GASKET

$5.99

$

In Stock, only 2 left!

0
