55001 - Toro Compact Suburban Lawn Tractor (SN: 008000001 - 008999999) (1968) ELECTRICAL GROUP (USED ONLY ON MODEL 55101) Parts Diagram

Compact Suburban Lawn Tractor

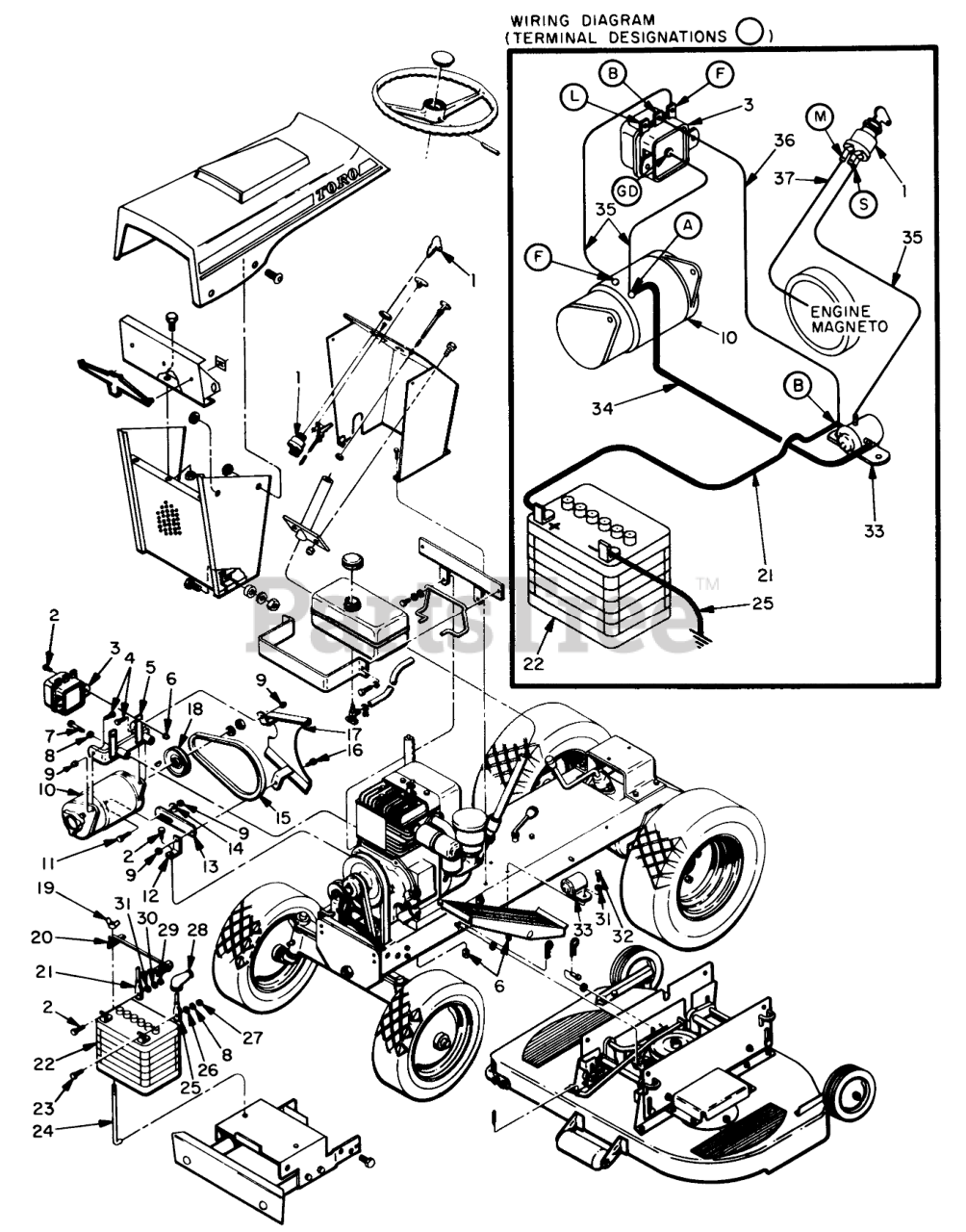

ELECTRICAL GROUP (USED ONLY ON MODEL 55101) Parts Diagram

  • Title

1

Toro 218-333(s

Starter Switch

Note: Incorporates 7-1394 key, 7-0130 washer, and 7-1794 nut.

$

$

Currently unavailable

2

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

3

Toro 218-334(s

Voltage Regulator

$

$

Currently unavailable

4

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

5

Toro 7-0987

Generator Bracket

$

$

Currently unavailable

6

32152-4(s

Nut

$

$

Not available

7

Toro 322-11

SCREW-HH
(Superseded to 120-9738)

$1.49

$

In Stock, Qty 20+

0

8

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

9

Toro 21152-1(s

Conelok Nut

$

$

Currently unavailable

10

Toro 7-1002

Starter-Generator

$

$

Currently unavailable

Toro 7-2581

Woodruff Key
(Superseded to 3257-24)

$5.49

$

Usually ships in 3-6 days

0

Toro 218-405(s

Nut

$

$

Currently unavailable

Toro 3253-23

WASHER-LOCK/SP

$4.99

$

In Stock, only 3 left!

0

11

Toro 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

12

Toro 7-1000

Clip

$

$

Currently unavailable

13

Toro 7-0998

Adjusting Arm

$

$

Currently unavailable

14

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

15

Toro 7-0657

Belt, 3V 320

$

$

Currently unavailable

16

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

17

Toro 7-1001

Belt Guard

$

$

Currently unavailable

18

Toro 218-340(s

Pulley

$

$

Currently unavailable

19

Toro 32103-12

NUT-WING

$1.49

$

In Stock, only 3 left!

0

20

Toro 7-0534

Battery Clamp

$

$

Currently unavailable

21

Toro 7-1013

Black Wire

$

$

Currently unavailable

22

Toro 239-13(s

Battery

$

$

Currently unavailable

23

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

24

Toro 7-3328

BATTERY BOLT

$

$

Currently unavailable

25

Toro 7_0322

Black Wire

$

$

Currently unavailable

26

Toro 7-0024

Washer

$

$

Currently unavailable

27

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 5

0

28

Toro 218-331(s

Terminal Boot

$

$

Currently unavailable

29

Toro 3217-5

NUT-HEX

$0.99

$

In Stock, Qty 10

0

30

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

31

Toro 3256-16(s

Flatwasher

$

$

Currently unavailable

32

Toro 321-2

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

33

Toro 218-332(s

Solenoid

$

$

Currently unavailable

34

Toro 7-0323

Red Wire

$

$

Currently unavailable

35

Toro 7_0326

Red Wire

$

$

Currently unavailable

36

Toro 7-1012

Yellow Wire

$

$

Currently unavailable

37

Toro 7-0321

Blue Wire

$

$

Currently unavailable
