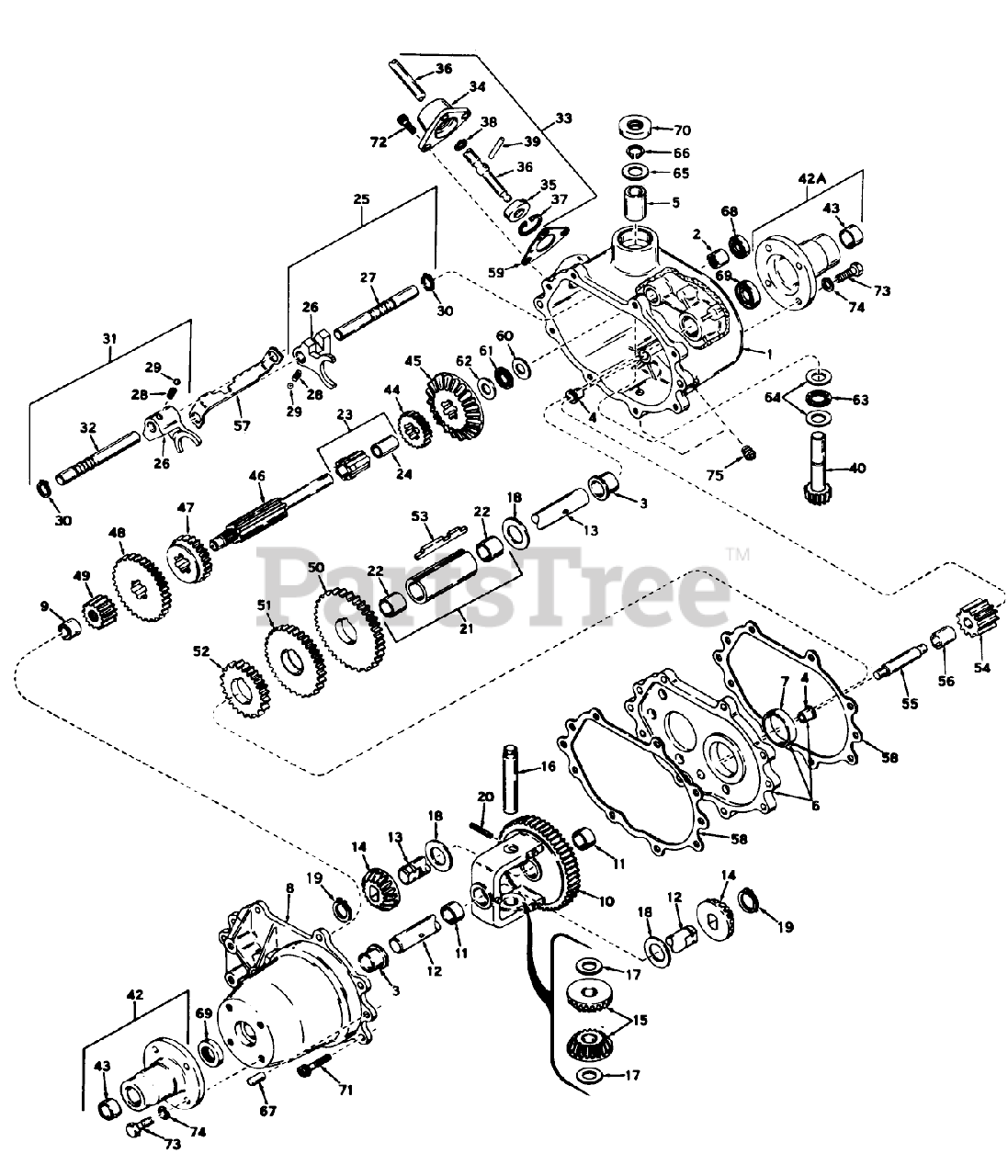

55001 - Toro Compact Suburban Lawn Tractor (SN: 008000001 - 008999999) (1968) TRANSMISSION Parts Diagram

Compact Suburban Lawn Tractor

TRANSMISSION Parts Diagram

  • Title

1

Toro 770030

Transaxle Case Assy (Incl. Nos. 2 thru 5)

$

$

Currently unavailable

2

Toro 780058

Needle Bearing

$

$

Currently unavailable

3

Toro 780059

Bronze Bearing

$

$

Currently unavailable

4

Toro 780060

Bronze Bearing

$

$

Currently unavailable

5

Toro 780061

Bronze Bearing

$

$

Currently unavailable

6

Toro 786033

Center Plate Assy (Incl.)(Nos. 4 and 7)

$

$

Currently unavailable

7

Toro 780062

Bronze Bearing

$

$

Currently unavailable

8

Toro 772042

Transaxle Cover Assy (Incl. Nos. 3 and 9)

$

$

Currently unavailable

9

Toro 780063

Needle Bearing

$

$

Currently unavailable

10

Toro 778053

Differential Gear Assy (Incl. No. 11)

$

$

Currently unavailable

11

Toro 780064

Bushing

$

$

Currently unavailable

12

Toro 774111

Left Hand Axle

$

$

Currently unavailable

13

Toro 774110

Right Hand Axle

$

$

Currently unavailable

14

Toro 778067

Bevel Gear

$

$

Currently unavailable

15

Toro 778068

Gear Pinion

$

$

Currently unavailable

16

Toro 786034

Drive Pin

$

$

Currently unavailable

17

Toro 780065

Thrust Washer

$

$

Currently unavailable

18

Toro 780001

Washer

$

$

Currently unavailable

19

Toro 788038

Snap Ring

$

$

Currently unavailable

20

Toro 792002

Roll Pin

$

$

Currently unavailable

21

Toro 786035

Countershaft Sleeve Assy (Incl. No. 22)

$

$

Currently unavailable

22

Toro 780066

Bronze Bearing

$

$

Currently unavailable

23

Toro 776054

Idler Shaft Assy (Incl. No. 24)

$

$

Currently unavailable

24

Toro 780067

Bronze Bearing

$

$

Currently unavailable

25

Toro 784079

Shift Rod Assy (1st and Rev.)(Incl. Nos. 26 thru 30)

$

$

Currently unavailable

26

Toro 784004

Shift Fork

$

$

Currently unavailable

27

Toro 784083

Shift Rod

$

$

Currently unavailable

28

Toro 792003

Spring

$

$

Currently unavailable

29

Toro 255-1

Ball

$

$

Not available

30

Toro 792017

Ring-Snap

$

$

Currently unavailable

31

Toro 784084

Shift Rod Assy (2nd 3rd)(Incl. No. 26, 28, 29, 30, and 32)

$

$

Currently unavailable

32

Toro 784085

Shift Rod

$

$

Currently unavailable

33

Toro 784086

Shift Lever and Housing Assy (Incl. Nos. 34 thru 39)

$

$

Currently unavailable

34

Toro 784088

Shift Lever Housing

$

$

Currently unavailable

35

Toro 784094

Keeper-Shift Lever

$

$

Currently unavailable

36

Toro 784090

Shift Lever

$

$

Currently unavailable

37

Toro 792016

Ring-Snap

$

$

Currently unavailable

38

Toro 237-18

"O" Ring

$

$

Currently unavailable

39

Toro 792002

Roll Pin

$

$

Currently unavailable

40

Toro 776055

Input Shaft

$

$

Currently unavailable

41

Toro 778056

Input Pinion

$

$

Currently unavailable

42

Toro 782031

No. 43)

$

$

Currently unavailable

42A

Toro 782034

Housing Assy Axle (Incl. No. 43)

$

$

Currently unavailable

43

Toro 780066

Bronze Bearing

$

$

Currently unavailable

44

Toro 778024

Gear (10 teeth)

$

$

Currently unavailable

45

Toro 778057

Bevel Gear (33 teeth)

$

$

Currently unavailable

46

Toro 776056

Shifter and Brake Shaft

$

$

Currently unavailable

47

Toro 778058

Gear, Shifting (2nd & 3rd)

$

$

Currently unavailable

48

Toro 778059

Gear, Shifting (1st & Rev.)

$

$

Currently unavailable

49

Toro 778060

Spur Gear (12 teeth)

$

$

Currently unavailable

50

Toro 778061

Countershaft Drive Gear (39 teeth)

$

$

Currently unavailable

51

Toro 778062

Gear (34 teeth)

$

$

Currently unavailable

52

Toro 778063

Countershaft Gear (25 teeth)

$

$

Currently unavailable

53

Toro 792034

Countershaft Key

$

$

Currently unavailable

54

Toro 778064

Reverse Idler

$

$

Currently unavailable

55

Toro 776057

Reverse Idler Shaft

$

$

Currently unavailable

56

Toro 786036

Reverse Idler Spacer

$

$

Currently unavailable

57

Toro 784087

Shifter Stop

$

$

Currently unavailable

58

Toro 788033

Gasket, Case & Cover

$

$

Currently unavailable

59

Toro 788003

Shift Lever Housing Gasket

$

$

Currently unavailable

60

Toro 780068

Thrust Washer

$

$

Currently unavailable

61

Toro 780069

Thrust Bearing

$

$

Currently unavailable

62

Toro 780070

Thrust Washer

$

$

Currently unavailable

63

Toro 788028

Gasket

$

$

Currently unavailable

64

Toro 780034

Bearing

$

$

Currently unavailable

65

Toro 788019

Ring-Snap

$

$

Currently unavailable

66

Toro 32120-64

RING-SNAP, EXTERNAL

$3.49

$

In Stock, Qty 17

0

67

Toro 786026

Dowel Pin

$

$

Currently unavailable

68

Toro 788034

Oil Seal

$

$

Currently unavailable

69

Toro 788009

Oil Seal

$

$

Currently unavailable

70

Toro 788035

Oil Seal

$

$

Currently unavailable

71

Toro 3274-30

Socket Hd. Cap Screw

$

$

Currently unavailable

72

Toro 3274-8

SCREW-HSH
(Superseded to 3274-64)

$1.49

$

Usually ships in 3-6 days

0

73

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

74

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

75

Toro 281-7

CAP-PIPE

$3.99

$

Usually ships in 3-6 days

0
