55002 (935) - Toro Lawn Tractor (SN: 009000001 - 009999999) (1969) 935 AND 935E HOOD AND ENGINE ASSEMBLY Parts Diagram

Lawn Tractor

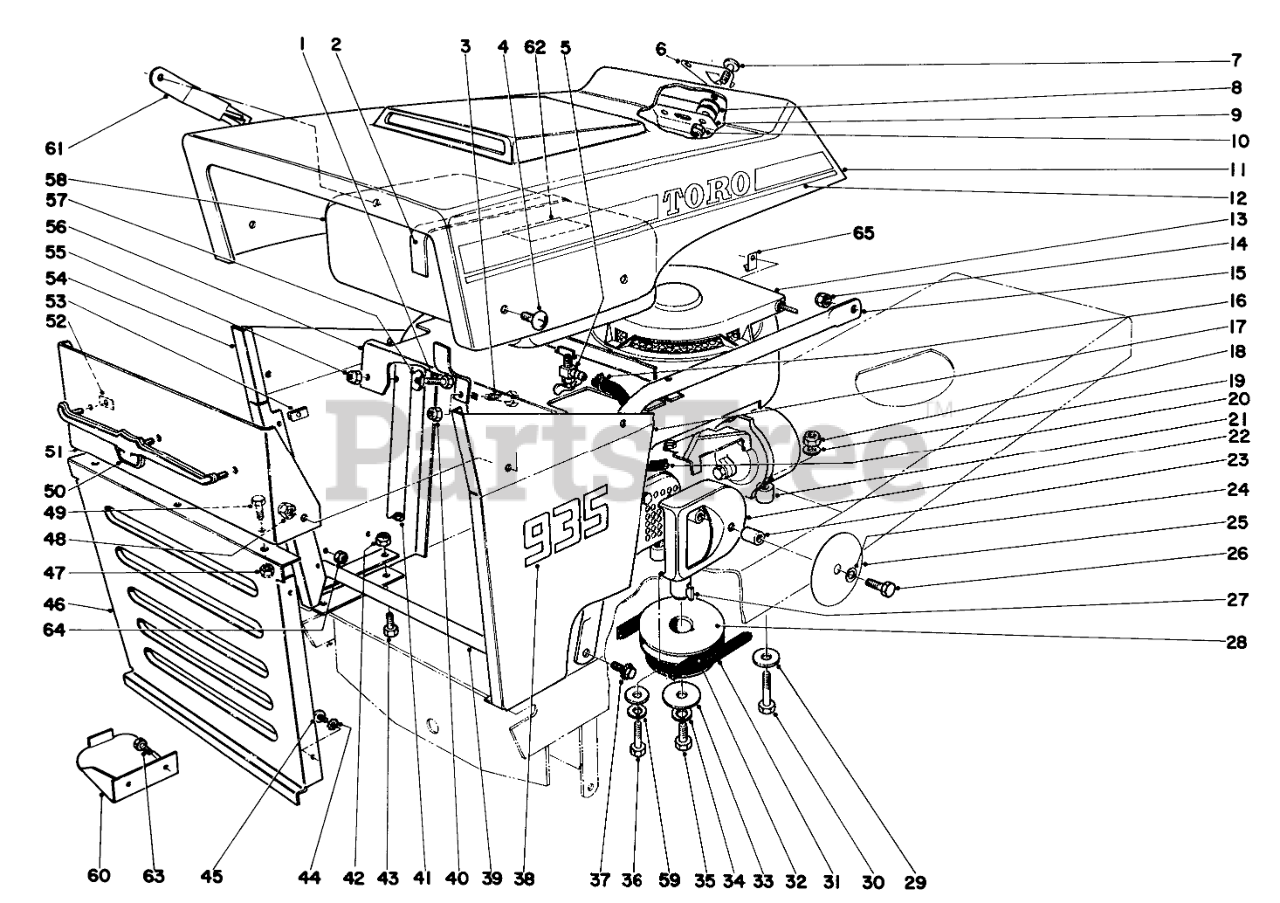

935 AND 935E HOOD AND ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 321-8

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

2

Toro 7-3981

Strap Gas Tank

$

$

Currently unavailable

3

Toro 321-8

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

4

Toro 3258-158S

Truss Head Screw

$

$

Currently unavailable

5

Toro 304-88

Hose Fitting

$

$

Currently unavailable

6

Toro 7-4387

Hood Clip

$

$

Currently unavailable

7

Toro 3258-160S

Screw

$

$

Currently unavailable

8

Toro 3256-16

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

9

Toro 7-3326

Hood Latch

$

$

Currently unavailable

10

Toro 32152-4S

Nut

$

$

Currently unavailable

11

Toro 7-3302

Hood

$

$

Currently unavailable

12

Toro 7-3347

Decal Hood Left

$

$

Currently unavailable

Toro 7-3346

Decal Hood Right

Note: Not illustrated

$

$

Currently unavailable

13

Toro 221-315

Engine 935

$

$

Currently unavailable

Toro 221-316

Engine

Note: Not illustrated

$

$

Currently unavailable

14

Toro 32152-4S

Nut

$

$

Currently unavailable

15

Toro 7-4146

Support Gas Tank Left

$

$

Currently unavailable

16

Toro 2412-6

CLAMP-HOSE

$

$

Not available

17

Toro 7-4105

Skin Left Front

$

$

Currently unavailable

18

32152-1S

Nut

$

$

Not available

19

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

20

Toro 7-3983

Hose

$

$

Currently unavailable

21

Toro 7-4266

Spacer

$

$

Currently unavailable

22

Toro 7-4248

Baffle Muffler

$

$

Currently unavailable

23

Toro 7-4250

Spacer Muffler

$

$

Currently unavailable

24

Toro 3253-24

WASHER-LOCK/SP

$0.99

$

Usually ships in 3-6 days

0

25

Toro 7-4234

Shield Baffle

$

$

Currently unavailable

26

Toro 322-23

SCREW-HH
(Superseded to 321-9)

$4.99

$

In Stock, only 1 left!

0

27

Toro 3257-3S

WoodruffKey

$

$

Currently unavailable

28

Toro 7-4140

Engine Pulley

$

$

Currently unavailable

29

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

30

Toro 322-10

SCREW-HH

$0.99

$

In Stock, Qty 10

0

31

Toro 7-4232

V BELT TRACTION

$

$

Not available

32

Toro 7-4231

V BELT PTO

$205.99

$

Usually ships in 3-6 days

0

33

Toro 3256-7

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

34

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 14

0

35

Toro 3211-5

SCREW-HH

$3.49

$

In Stock, only 4 left!

0

36

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

37

Toro 32140-18

Screw

$

$

Currently unavailable

38

Toro 7-4121

Decal 935

$

$

Currently unavailable

39

Toro 7-4106

Hinge

$

$

Currently unavailable

40

Toro 32152-4S

Nut

$

$

Currently unavailable

41

Toro 7-4145

Support Gas Tank Right

$

$

Currently unavailable

42

Toro 32152-4S

Nut

$

$

Currently unavailable

43

Toro 321-3

SCREW-HH

$1.49

$

In Stock, only 3 left!

0

44

Toro 3255-17

WASHER-LOCK, EXT

$0.99

$

Usually ships in 3-6 days

0

45

Toro 3290-111S

Screw

$

$

Currently unavailable

46

Toro 7-4103

Grille

$

$

Currently unavailable

47

Toro 32152-4S

Nut

$

$

Currently unavailable

48

32152-1S

Nut

$

$

Not available

49

Toro 321-3

SCREW-HH

$1.49

$

In Stock, only 3 left!

0

50

Toro 7-3441

Bullshead

$

$

Currently unavailable

51

Toro 7-3325

Blank Headlamp

$

$

Currently unavailable

52

Toro 3290-275S

Tinnerman Nut

$

$

Currently unavailable

53

Toro 3290-191

NUT-CLIP,U

$6.99

$

Usually ships in 3-6 days

0

54

Toro 7-4580

Skin Right Front

$

$

Currently unavailable

55

Toro 32152-4S

Nut

$

$

Currently unavailable

56

Toro 7-3904

Bracket Gas Tank

$

$

Currently unavailable

57

Toro 3-7501

WASHER

$6.49

$

In Stock, Qty 15

0

58

Toro 7-3903

Gas Tank
(Superseded to 17-1130)

$

$

Not available

59

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 14

0

60

Toro 7-4510

Trimmer Support

$

$

Currently unavailable

61

Toro 7-4500

Bracket Trimmer

$

$

Currently unavailable

62

Toro 7-4600

Decal

$

$

Currently unavailable

63

Toro 321-2

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

64

Toro 32152-4

NUT-LOCK, CONE

$1.49

$

In Stock, only 4 left!

0

65

Toro 7-0077

Clip

$

$

Not available

Toro 222-16S

Cap

Note: Not illustrated

$

$

Currently unavailable
