55055 (800) - Toro Lawn Tractor, Electric (SN: 001000001 - 001999999) (1971) HOOD AND ENGINE ASSEMBLY Parts Diagram

Lawn Tractor, Electric

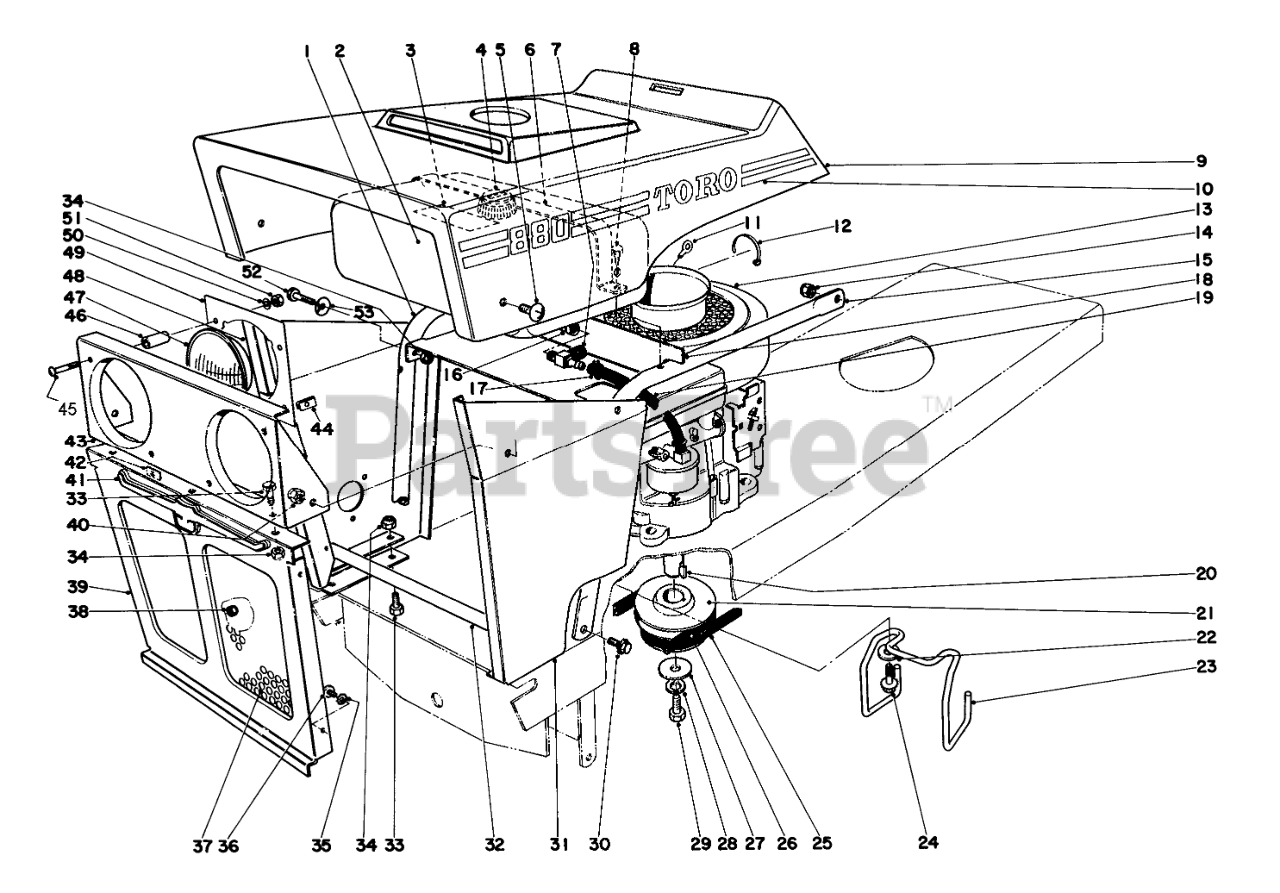

HOOD AND ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 7-7570

Support-R.H.

$

$

Currently unavailable

2

Toro 7-4920

Gas Tank

$

$

Not available

3

Toro 7-4600

Decal

$

$

Currently unavailable

4

Toro 5-3460

Gas Cap
(Superseded to 42-0682)

$

$

Not available

5

Toro 3258-158

Round Head Screw

$

$

Currently unavailable

6

Toro 7-7490

Hold Down Gas Tank

$

$

Currently unavailable

7

Toro 7-7260

Shut Off Valve

$

$

Currently unavailable

8

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

9

Toro 7-7890

Hood

$

$

Currently unavailable

10

Toro 7-8360

Decal Hood L.H.

$

$

Currently unavailable

Toro 7-8350

Decal Hood R.H.

Note: Not illustrated

$

$

Currently unavailable

11

Toro 218-445

Wire

$

$

Currently unavailable

12

Toro 7-3123

Cable Tie

$

$

Not available

13

Toro 221-376

Engine

$

$

Currently unavailable

14

Toro 32152-4

NUT-LOCK, CONE

$1.49

$

In Stock, only 4 left!

0

15

Toro 7-7560

Support Left

$

$

Currently unavailable

16

Toro 7-8180

Elbow

$

$

Not available

17

Toro 2412-33

Clamp
(Superseded to 2412-98)

$1.49

$

In Stock, Qty 20+

0

18

Toro 7-7920

Tray Gas Tank

$

$

Currently unavailable

19

Toro 7-3983

Hose

$

$

Currently unavailable

20

Toro 3257-3

KEY-WOODRUFF

$1.49

$

In Stock, Qty 10

0

21

Toro 7-7450

Engine Pulley

$

$

Not available

22

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

23

Toro 7-8730

Belt Guide

$

$

Not available

24

Toro 32140-15

1/4-20X5/8 THDG SEMS

$

$

Currently unavailable

25

Toro 7-4232

V BELT TRACTION

$

$

Not available

26

Toro 7-4231

V BELT PTO

$205.99

$

Usually ships in 3-6 days

0

27

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

28

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 14

0

29

Toro 3211-9

SCREW-HH

$2.49

$

Usually ships in 3-6 days

0

30

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

31

Toro 7-5310

Skin Left Front

$

$

Currently unavailable

32

Toro 7-4106

Hinge

$

$

Currently unavailable

33

Toro 321-2

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

34

Toro 32152-4

NUT-LOCK, CONE

$1.49

$

In Stock, only 4 left!

0

35

Toro 3255-17

WASHER-LOCK, EXT

$0.99

$

Usually ships in 3-6 days

0

36

Toro 3290-111

10-24 X 3/8 PAN HD SC

$

$

Not available

37

Toro 7-5980

Grille Panel

$

$

Currently unavailable

38

Toro 3296-12

NUT-LOCK, NI

$1.49

$

In Stock, Qty 12

0

39

Toro 7-6040

Grille

$

$

Currently unavailable

40

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 6

0

41

Toro 7-3441

Bullshead

$

$

Currently unavailable

42

Toro 3290-275

Timmerman Nut

$

$

Currently unavailable

43

Toro 7-4213

Headlamp Panel

$

$

Currently unavailable

44

Toro 3290-191

NUT-CLIP,U

$6.99

$

Usually ships in 3-6 days

0

45

Toro 32122-45

Screw

$

$

Currently unavailable

46

Toro 7-4254

Spacer

$

$

Currently unavailable

47

Toro 7-1646

HEAD LAMP

$

$

Currently unavailable

48

Toro 7-7880

Skin Right Front

$

$

Currently unavailable

49

Toro 7-4320

Headlight Holder

$

$

Currently unavailable

50

Toro 3253-12

WASHER-LOCK/SP

$

$

Not available

51

Toro 3217-26

NUT-HEX

$1.99

$

In Stock, only 4 left!

0

52

Toro 321-8

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

53

Toro 3-7501

WASHER

$6.49

$

In Stock, Qty 15

0
