550Z (B 2561) (5901252) - Snapper 61" Zero-Turn Mower, 25hp 61" Mower Deck Group - Housing, Covers, Spindle & Blades Parts Diagram

61" Zero-Turn Mower, 25hp

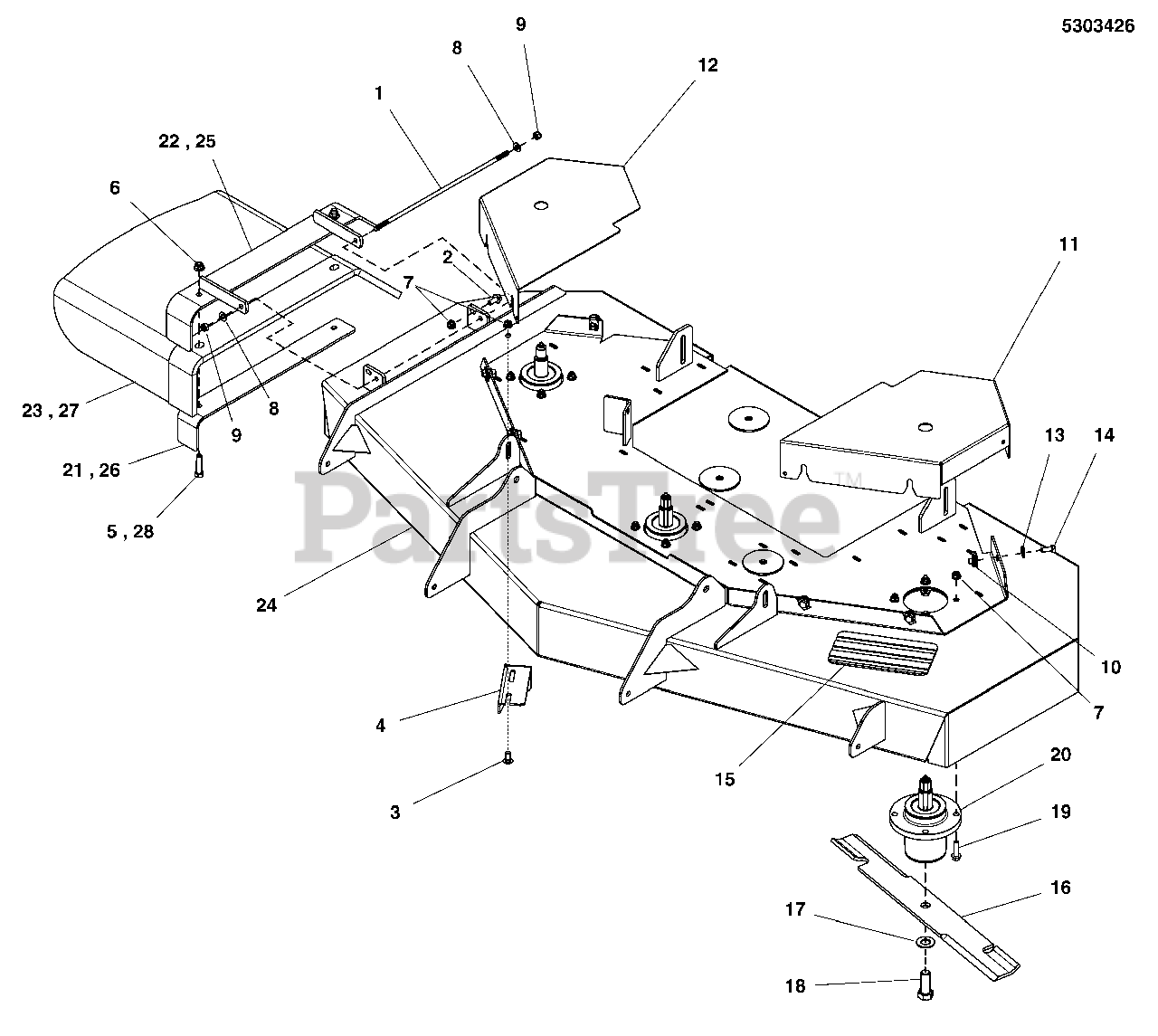

61" Mower Deck Group - Housing, Covers, Spindle & Blades Parts Diagram

  • Title

1

Snapper 5042555SM

ROD, 5/16 X 13.75, TBE, CZ

$11.99

$

In Stock, only 4 left!

0

2

Snapper 703354

SCREW, Flange, Whiz-Lock, 5/16-18 X 3/4

Note: (80003531)

$5.49

$

In Stock, Qty 19

0

3

Snapper 5025145X6SM

BOLT, 5/16-18 X 3/4, CARRIAGE

$3.99

$

In Stock, Qty 20+

0

4

Snapper 5401344AYP

PLATE, Deflector

$28.99

$

Usually ships in 2-12 days

0

5

Snapper 5025013X12SM

BOLT, 3/8-16 X 1-1/2 GD5 YZ
(Superseded to 703406)

Note: (S/N: 2017094785 & Below)

$4.99

$

In Stock, Qty 10

0

6

Snapper 5025394SM

NUT, Hex Flange, Nylock, 3/8-16

$4.49

$

In Stock, Qty 20+

0

7

Snapper 703115

NUT, 5/16-18 HEX NYLOCK FLANGE

$3.49

$

In Stock, Qty 11

0

8

Snapper 703302

WASHER, 5/16 SAE

$4.49

$

In Stock, Qty 20+

0

9

Snapper 5025045SM

NUT, 5/16-24 HEX NYLON LOCK

$3.49

$

In Stock, Qty 15

0

10

Snapper 5022308SM

BODY CLIP, 5/16-18-7GA MATERIAL

$5.99

$

In Stock, only 4 left!

0

11

Snapper 5411377DYP

GUARD 61" - LH - RED

Note: (S/N: 2016564163 & Below)

$76.99

$

Usually ships in 2-12 days

0

11

Snapper 5411896DYP

GUARD 61" - LH - RED

Note: (S/N: 2016564164 & Above)

$102.99

$

Usually ships in 2-12 days

0

12

Snapper 5411376DYP

GUARD 61" - RH - RED

Note: (S/N: 2016564163 & Below)

$76.99

$

Usually ships in 2-12 days

0

12

Snapper 5411895DYP

GUARD 61" - RH - RED

Note: (S/N: 2016564164 & Above)

$94.99

$

Usually ships in 2-12 days

0

13

Snapper 703302

WASHER, 5/16 SAE

$4.49

$

In Stock, Qty 20+

0

14

Snapper 5025011X6SM

BOLT, 5/16-18 X 3/4 GD5

$3.99

$

In Stock, only 2 left!

0

15

Snapper 5101004SM

SAFETY WALK, 4.00 X 7.50

$9.99

$

In Stock, only 1 left!

0

16

Snapper 5104045SYP

BLADE SET, .187 X 2.50 X 21.00 (3) (SV)

$

$

Not available

17

Snapper 5025477SM

WASHER, Blade Bolt, 9/16"

$4.49

$

In Stock, Qty 20+

0

18

Snapper 770136

BOLT, 5/8-11 X 1-3/4 GD8
(Superseded to 5025320X14FS)

$4.49

$

Usually ships in 2-12 days

0

19

Snapper 5023156SM

BOLT, 5/16-18 X 1 1/4 FLANGE

$4.49

$

In Stock, Qty 7

0

20

Snapper 5061095SM

ASSM, SPINDLE, LOW PROFILE

$189.99

$

In Stock, only 4 left!

0

21

Snapper 5402362AYP

SUPPORT, DISCHARGE CHUTE, 48/52
(Superseded to 5402362AFS)

Note: (S/N: 2017094785 & Below)

$37.99

$

Usually ships in 2-12 days

0

22

Snapper 5402361DYP

WELD, FRAME CHUTE, 44/48/52 -SNP RED
(Superseded to 5413404AYP)

Note: (S/N: 2017094785 & Below)

$70.99

$

Usually ships in 2-12 days

0

23

Snapper 5402404SM

CHUTE, DISCHARGE, BEND RUBBER, 44/48/52

Note: (S/N: 2017094785 & Below)

$181.99

$

In Stock, only 1 left!

0

24

Snapper 5600699YP

DECK SHELL W/DECALS, 61, 550Z/2950 (SV)

Note: (USA Models)(5411126DYP)

$2326.99

$

Usually ships in 2-12 days

0

24

Snapper 5600844YP

DECK SHELL W/DECALS, 61, 550Z ANSI-EXP (SV)

Note: (Export Models)(5411126DYP)

$

$

Currently unavailable

25

Snapper 5413404A

WELD, MOUNT, DISCHARGE CHUTE - BLK
(Superseded to 5413404AAFS)

Note: (S/N: 2017094786 & Above)

$52.99

$

Usually ships in 2-12 days

0

26

Snapper 5413401A

SUPPORT, DISCHARGE CHUTE - BLK
(Superseded to 5413401AA)

Note: (S/N: 2017094786 & Above)

$33.99

$

Usually ships in 2-12 days

0

27

Snapper 5413498

CHUTE, RUBBER DISCHARGE - BLK

Note: (S/N: 2017094786 & Above)

$165.99

$

Usually ships in 2-12 days

0

28

Snapper 5025146X12

BOLT, 3/8-16 X 1-1/2, CARRIAGE, GD5, CZ
(Superseded to 5025146X12YP)

Note: (S/N: 2017094786 & Above)

$4.49

$

In Stock, only 3 left!

0
