551 (190-551-100) - Cub Cadet 45" Snow Thrower Attachment att Lower Frame Parts Diagram

45" Snow Thrower Attachment

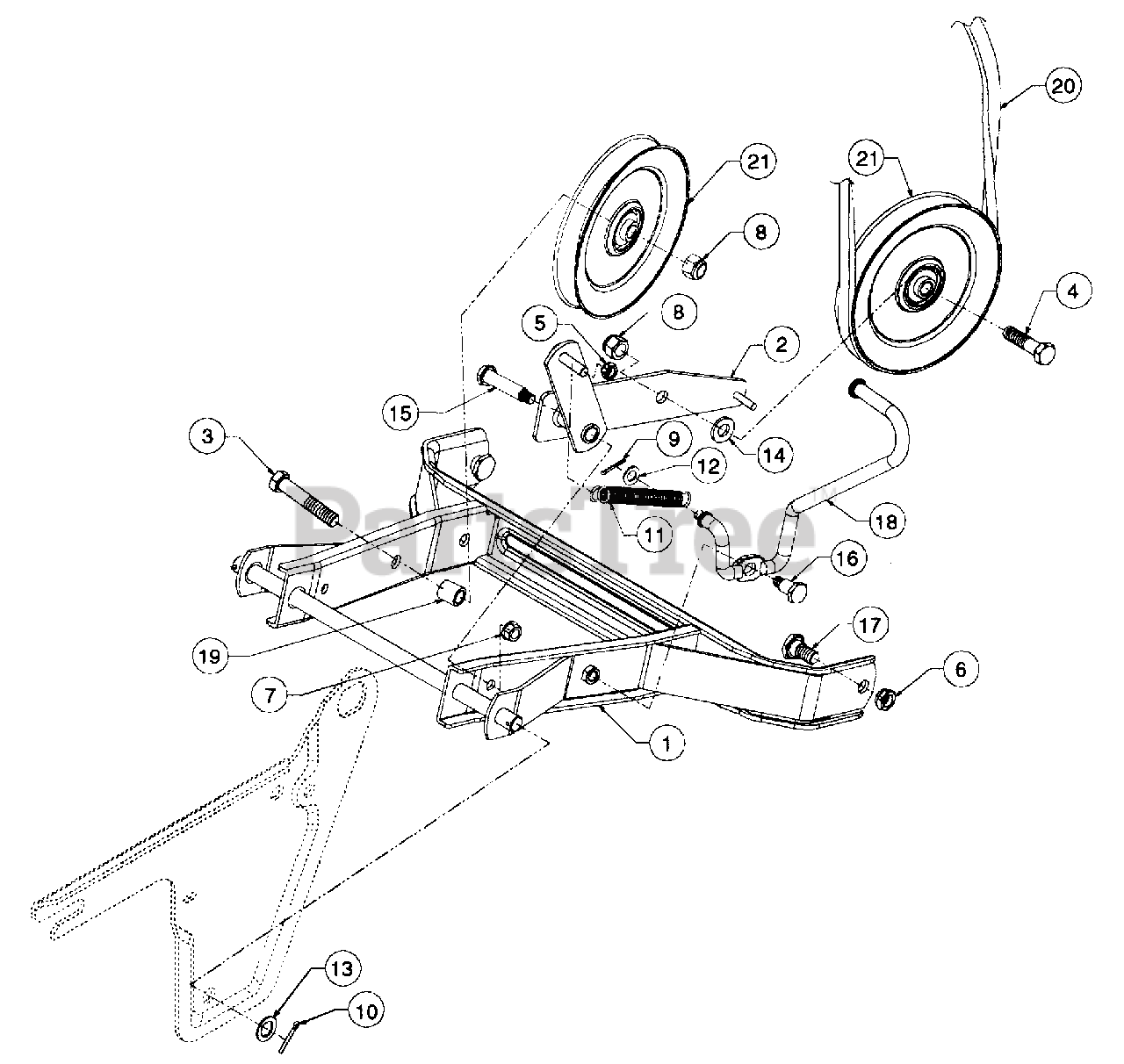

Lower Frame Parts Diagram

  • Title

1

Cub Cadet 603-0365

Frame Ass'y

Variations

603-0365-0498

Cub Cadet 603-0365-0498

FRAME ASSEMBLY (CUB YELLOW) - OLD CUB YELLOW (0498)

$

$

Not available

$

$

2

Cub Cadet 684-0084

Bracket Ass'y, Idler

Variations

684-0084-0498

Cub Cadet 684-0084-0498

IDLER BRACKET - OLD CUB YELLOW (0498)

$

$

Not available

$

$

3

Cub Cadet 710-0490

Screw, Hex Cap, 1/2-13 X 2.75 GR5

$

$

Not available

4

Cub Cadet 710-3071

Screw, Hex Cap, 1/2-13 X 2.0 GR8

$

$

Not available

5

Cub Cadet 712-0116

Nut, Hex Insert Lock Jam, 3/8-24

$4.99

$

In Stock, only 3 left!

0

6

Cub Cadet 712-0346

Nut, Hex Insert Lock Jam, 1/2-20

$4.99

$

In Stock, only 2 left!

0

7

Cub Cadet 712-0431

Nut, Hex Flanged Lock, 3/8-16
(Superseded to 912-0431)

$5.49

$

In Stock, Qty 20+

0

8

Cub Cadet 712-3083

Nut, Hex Top Nylon Lock, 1/2-13

$4.99

$

In Stock, Qty 20+

0

9

Cub Cadet 714-0111

Pin, Cotter, 3/32 X 1.0

$5.49

$

In Stock, Qty 20+

0

10

Cub Cadet 714-0115

Pin, Cotter, 1/8 X 1.0

$4.49

$

In Stock, only 1 left!

0

11

Cub Cadet 732-0384

Spring, Extension
(Superseded to 932-0384)

$14.99

$

In Stock, Qty 20+

0

12

Cub Cadet 736-0185

Washer, Flat, .406 X .75 X .063

$4.49

$

In Stock, only 4 left!

0

13

Cub Cadet 736-0290

Washer, Flat, 5/8 X 1.0 X .063

$7.49

$

In Stock, Qty 5

0

14

Cub Cadet 736-0326

Washer, Flat, .510 X 1.0 X .125

$4.99

$

In Stock, Qty 8

0

15

Cub Cadet 738-0129

Bolt, Shoulder, .498 Dia X 2.0 Lg

$11.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 738-0297

Bolt, Shoulder, .498 Dia X .710 Lg
(Superseded to 938-0297)

$

$

Not available

17

Cub Cadet 738-0816

Bolt, Shoulder, .62 Dia X .30 Lg
(Superseded to 938-0816)

$

$

Not available

18

Cub Cadet 747-0625

Rod, Spring Tension

$

$

Not available

19

Cub Cadet 750-0499

Spacer, .501 X .75 X .78

$25.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 754-0341

V-Belt, 5/8 X 89 Lg
(Superseded to 954-0341)

$55.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 756-3090

Pulley, V-Idler, 7.0 OD

$116.99

$

In Stock, only 1 left!

0
